Dimension
The dimensions of LT170LD are shown below.

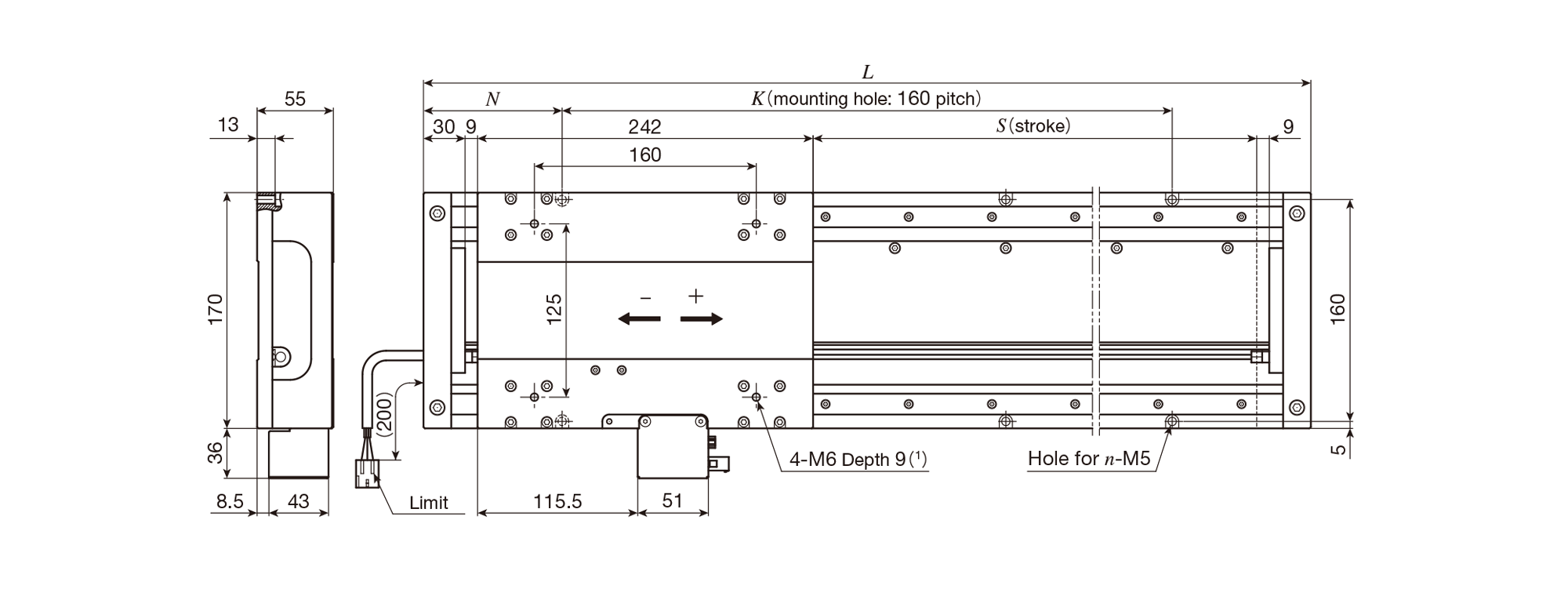

LT170LDGS Single table / High thrust specification
LT170LDVS Single table / High speed specification
unit: mm
| Identification number | Stroke length S（2） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT170LDGS－680 LT170LDVS －680 |
680 | 1000 | 100 | 800 | 12 | 22.6 | 2.5 |
| LT170LDGS－1160 LT170LDVS－1160 |
1160 | 1480 | 100 | 1280 | 18 | 32.7 | |
| LT170LDGS－1640 LT170LDVS－1640 |
1640 | 1960 | 100 | 1760 | 24 | 42.7 | |
| LT170LDGS－2120 LT170LDVS－2120 |
2120 | 2440 | 100 | 2240 | 30 | 52.8 | |
| LT170LDGS－2600 LT170LDVS－2600 |
2600 | 2920 | 100 | 2720 | 36 | 62.9 | |
| LT170LDGS－2720 LT170LDVS－2720 |
2720 | 3040 | 80 | 2880 | 38 | 65.4 | |
| Notes（1） | Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole. |
| （2） | For other stroke lengths, please contact IKO. |

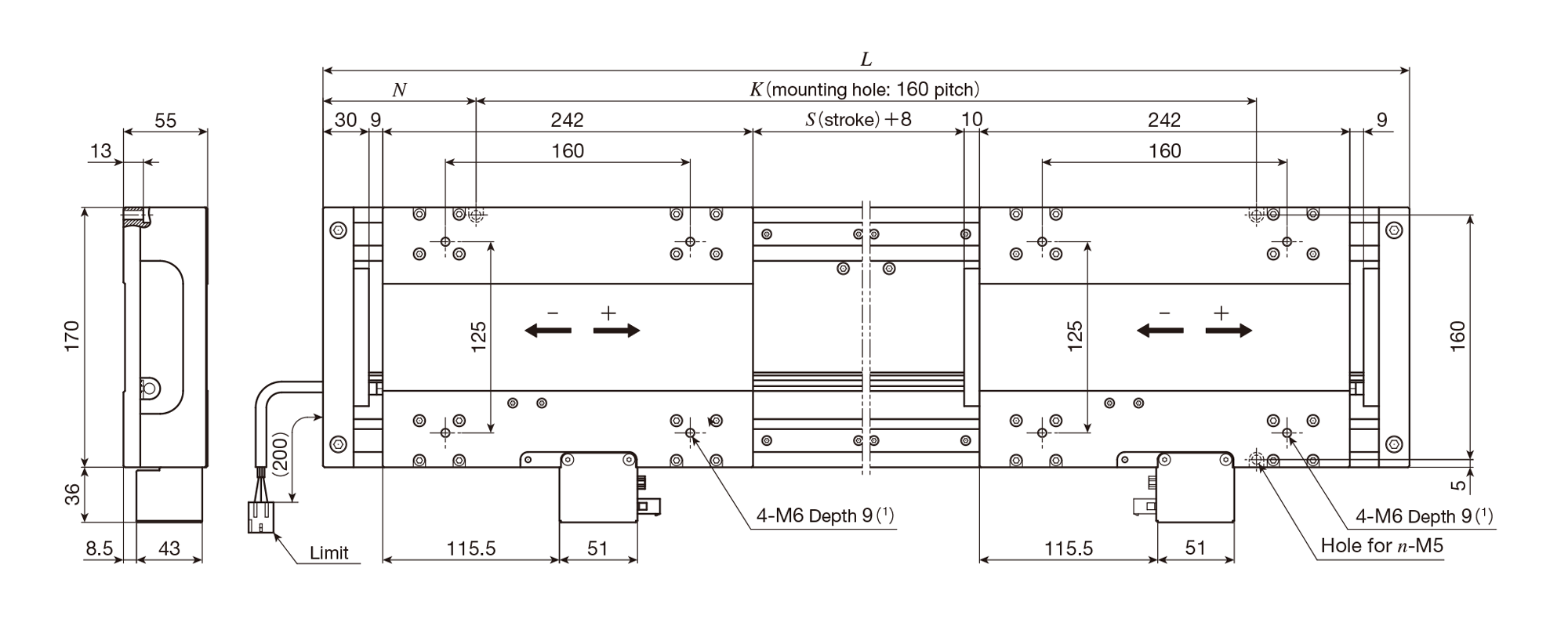

LT170LDGS/T2 Twin table / High thrust specification
LT170LDVS/T2 Twin table / High speed specification
unit: mm
| Identification number | Stroke length S（2） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT170LDGS－420/T2 LT170LDVS －420/T2 |
420 | 1000 | 100 | 800 | 12 | 25.1 | 2.5 |
| LT170LDGS－900/T2 LT170LDVS－900/T2 |
900 | 1480 | 100 | 1280 | 18 | 35.2 | |
| LT170LDGS－1380/T2 LT170LDVS－1380/T2 |
1380 | 1960 | 100 | 1760 | 24 | 45.2 | |
| LT170LDGS－1860/T2 LT170LDVS－1860/T2 |
1860 | 2440 | 100 | 2240 | 30 | 55.3 | |
| LT170LDGS－2340/T2 LT170LDVS－2340/T2 |
2340 | 2920 | 100 | 2720 | 36 | 65.4 | |
| LT170LDGS－2460/T2 LT170LDVS－2460/T2 |
2460 | 3040 | 80 | 2880 | 38 | 67.9 | |
| Notes（1） | Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole. |
| （2） | For other stroke lengths, please contact IKO. |

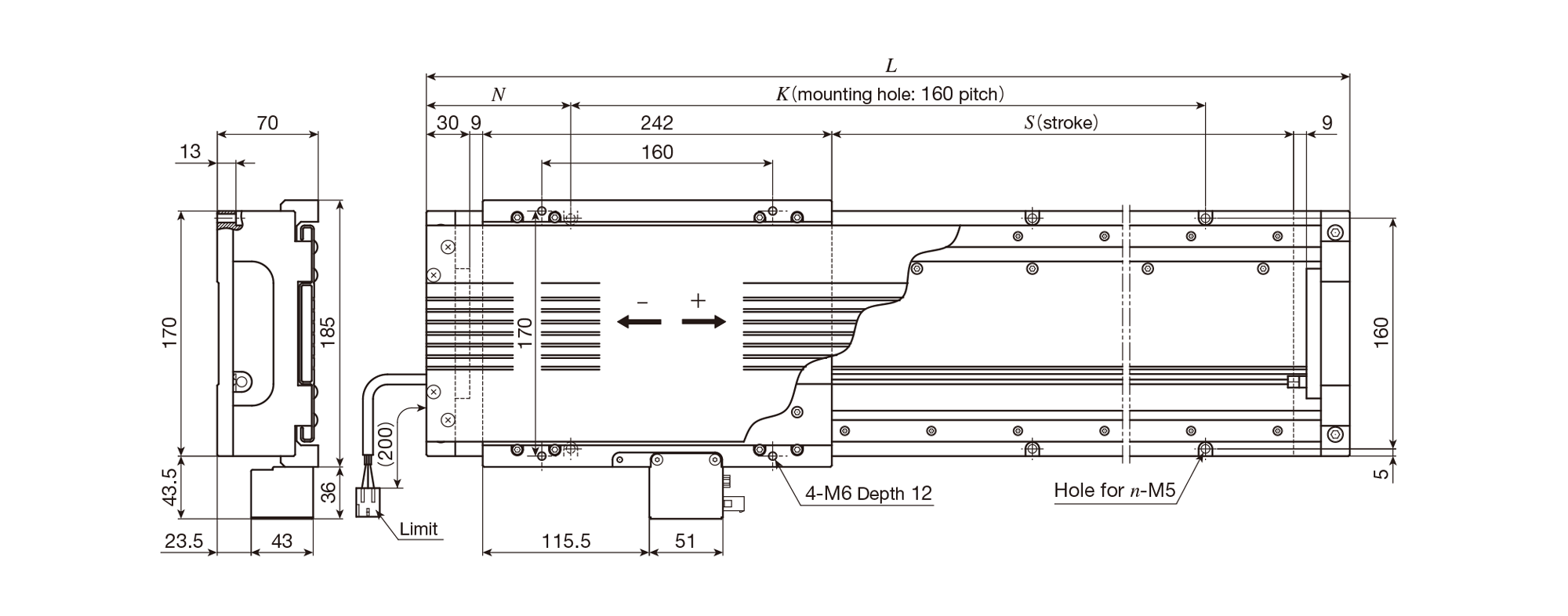

LT170LDGF/D Single table with cover / High thrust specification 1
LT170LDTF/D Single table with cover / High thrust specification 2
LT170LDVF/D Single table with cover / High speed specification
unit: mm
| Identification number | Stroke length S（1） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT170LDGF－680/D LT170LDVF－680/D |
680 | 1000 | 100 | 800 | 12 | 24.0 | 2.8 |
| LT170LDGF－1160/D LT170LDVF－1160/D |
1160 | 1480 | 100 | 1280 | 18 | 34.6 | |
| LT170LDGF－1640/D LT170LDVF－1640/D |
1640 | 1960 | 100 | 1760 | 24 | 45.2 | |
| LT170LDTF－680/D | 680 | 1000 | 100 | 800 | 12 | 24.7 | |
| LT170LDTF－1160/D | 1160 | 1480 | 100 | 1280 | 18 | 35.6 | |
| LT170LDTF－1640/D | 1640 | 1960 | 100 | 1760 | 24 | 46.5 | |
| Note（1） | For other stroke lengths, please contact IKO. |

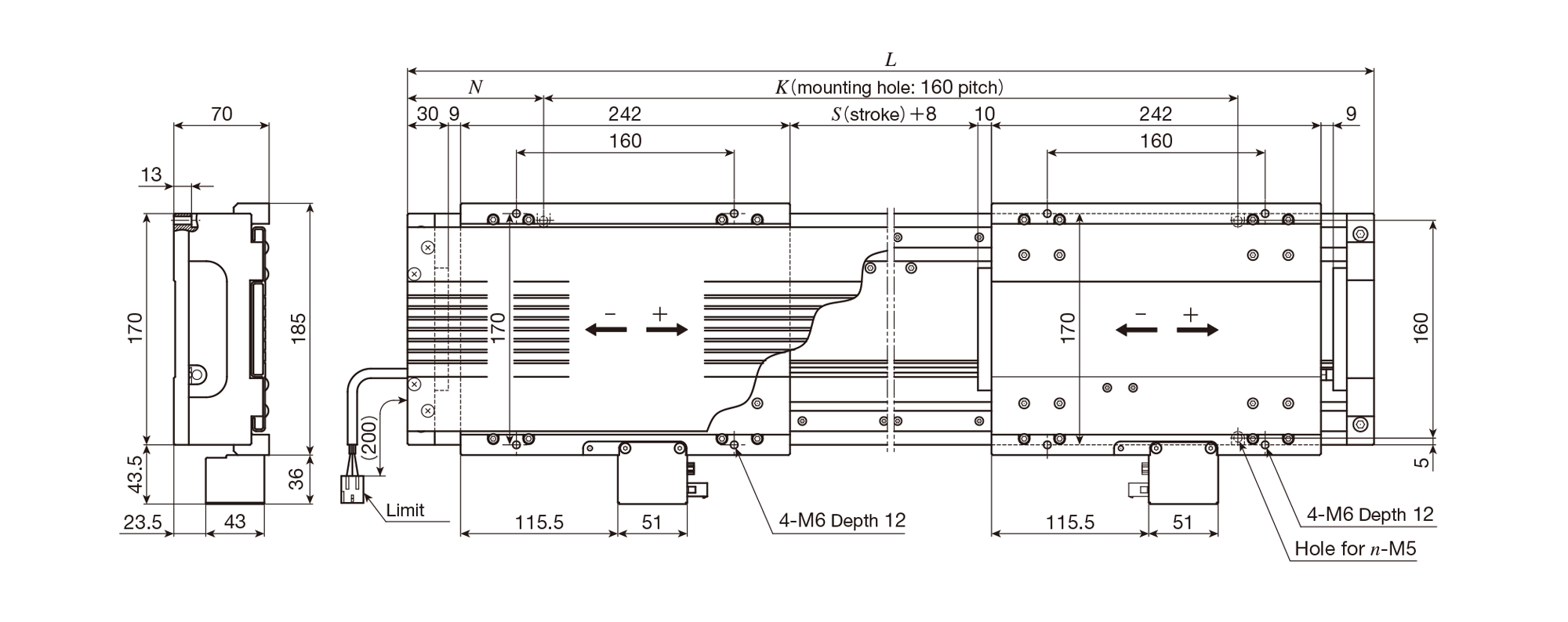

LT170LDGF/DT2 Twin table with cover / High thrust specification 1
LT170LDTF/DT2 Twin table with cover / High thrust specification 2
LT170LDVF/DT2 Twin table with cover / High speed specification
unit: mm
| Identification number | Stroke length S（1） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT170LDGF－420/DT2 LT170LDVF－420/DT2 |
420 | 1000 | 100 | 800 | 12 | 26.9 | 2.8 |
| LT170LDGF－900/DT2 LT170LDVF－900/DT2 |
900 | 1480 | 100 | 1280 | 18 | 37.5 | |
| LT170LDGF－1380/DT2 LT170LDVF－1380/DT2 |
1380 | 1960 | 100 | 1760 | 24 | 48.0 | |
| LT170LDTF－420/DT2 | 420 | 1000 | 100 | 800 | 12 | 27.6 | |
| LT170LDTF－900/DT2 | 900 | 1480 | 100 | 1280 | 18 | 38.5 | |
| LT170LDTF－1380/DT2 | 1380 | 1960 | 100 | 1760 | 24 | 49.3 | |
| Note（1） | For other stroke lengths, please contact IKO. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
