Dimension
The dimensions of LT150CEGS are shown below.

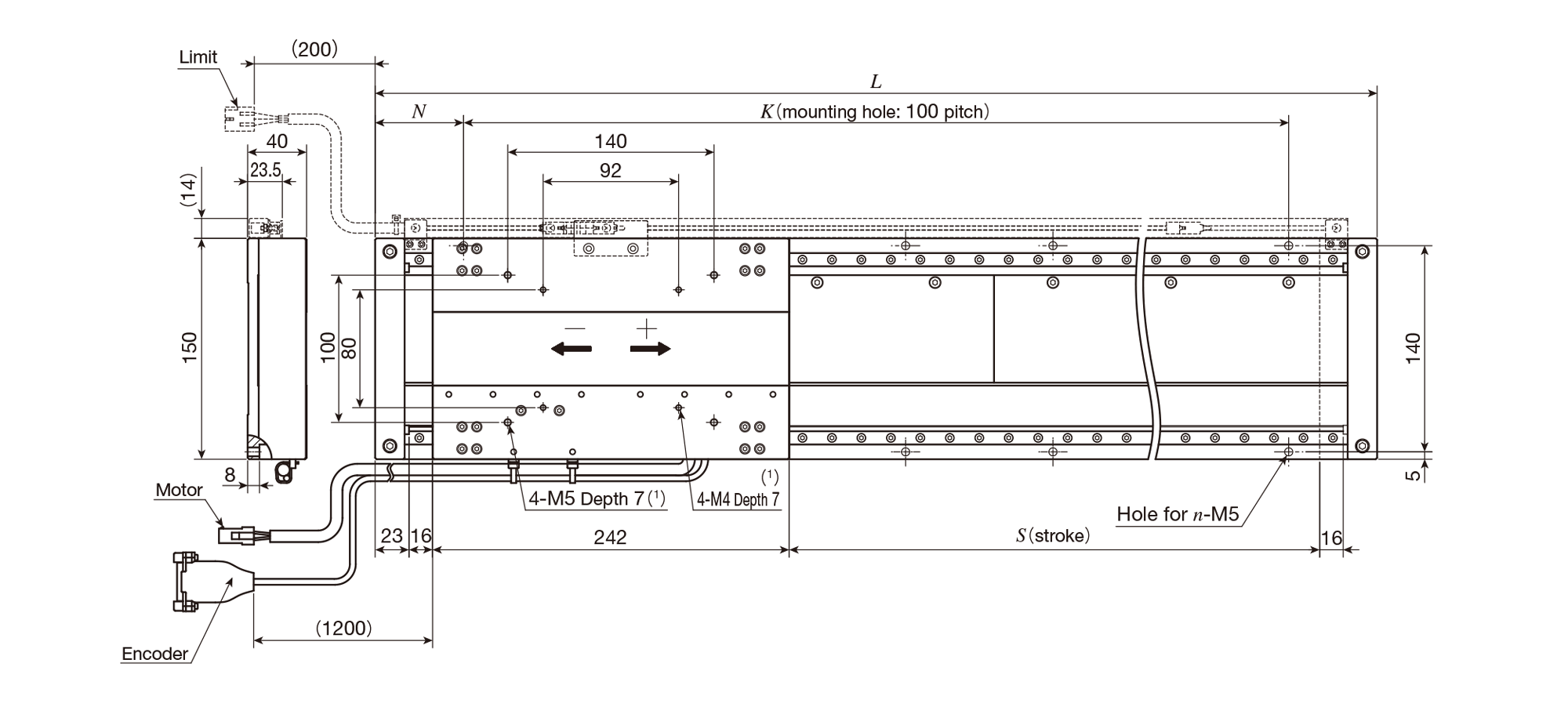

LT150CEGS Single table
unit: mm
| Identification number | Stroke length S（2） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT150CEGS－400 | 400 | 720 | 60 | 600 | 14 | 12.4 | 1.5 |
| LT150CEGS－600 | 600 | 920 | 60 | 800 | 18 | 15.5 | |
| LT150CEGS－800 | 800 | 1120 | 60 | 1000 | 22 | 18.6 | |
| LT150CEGS－1000 | 1000 | 1320 | 60 | 1200 | 26 | 21.6 | |
| LT150CEGS－1200 | 1200 | 1520 | 60 | 1400 | 30 | 24.7 | |
| Notes（1） | Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole. |
| （2） | For other stroke lengths, please contact IKO. |
| Remark: | Dashed line portions in the dimensional figures indicate the sensor-included specification / SC. |

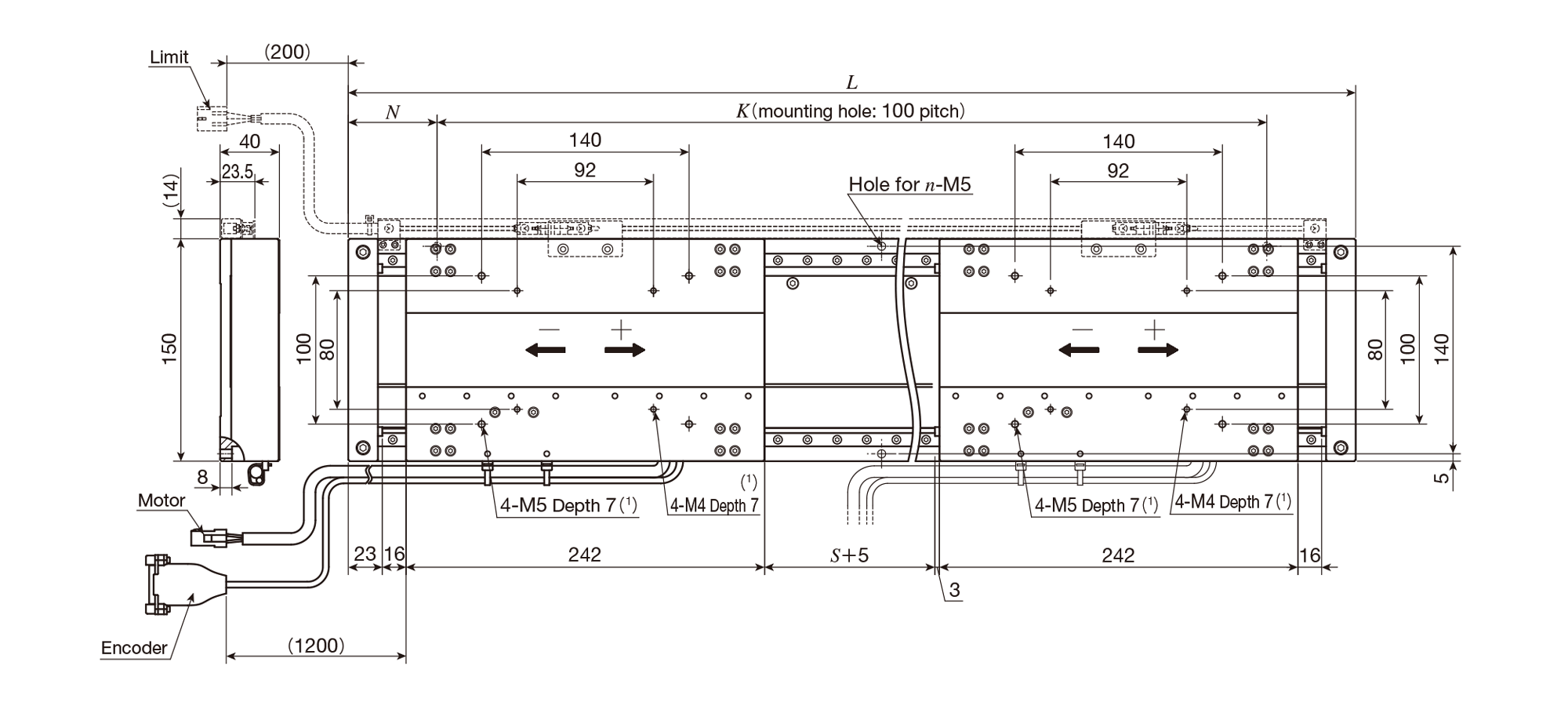

LT150CEGS/T2 Twin table
unit: mm
| Identification number | Stroke length S（2） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT150CEGS－350/T2 | 350 | 920 | 60 | 800 | 18 | 17.0 | 1.5 |
| LT150CEGS－550/T2 | 550 | 1120 | 60 | 1000 | 22 | 20.1 | |
| LT150CEGS－750/T2 | 750 | 1320 | 60 | 1200 | 26 | 23.1 | |
| LT150CEGS－950/T2 | 950 | 1520 | 60 | 1400 | 30 | 26.2 | |
| Notes（1） | Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole. |
| （2） | For other stroke lengths, please contact IKO. |
| Remark: | Dashed line portions in the dimensional figures indicate the sensor-included specification / SC. |

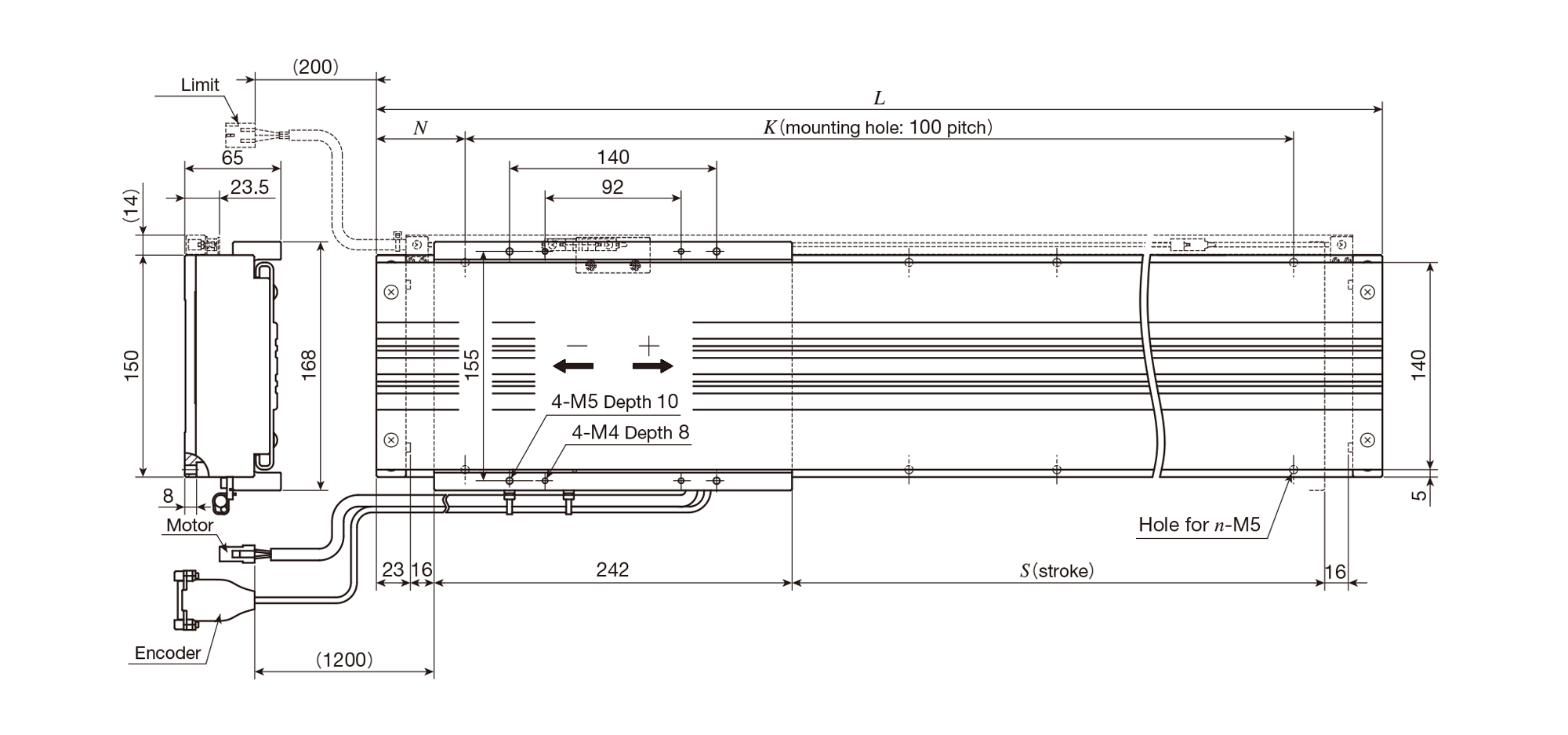

LT150CEGF/D Single table with cover / High thrust specification 1
LT150CETF/D Single table with cover / High thrust specification 2
unit: mm
| Identification number | Stroke length S（1） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT150CEGF－ 400/D | 400 | 720 | 60 | 600 | 14 | 14.8 | 2.4 |
| LT150CEGF－600/D | 600 | 920 | 60 | 800 | 18 | 18.1 | |
| LT150CEGF－800/D | 800 | 1120 | 60 | 1000 | 22 | 21.5 | |
| LT150CEGF－1000/D | 1000 | 1320 | 60 | 1200 | 26 | 24.8 | |
| LT150CEGF－1200/D | 1200 | 1520 | 60 | 1400 | 30 | 28.2 | |
| LT150CETF－400/D | 400 | 720 | 60 | 600 | 14 | 15.3 | |
| LT150CETF－600/D | 600 | 920 | 60 | 800 | 18 | 18.7 | |
| LT150CETF－800/D | 800 | 1120 | 60 | 1000 | 22 | 22.5 | |
| LT150CETF－1000/D | 1000 | 1320 | 60 | 1200 | 26 | 25.7 | |
| LT150CETF－1200/D | 1200 | 1520 | 60 | 1400 | 30 | 29.2 | |
| Note（1） | For other stroke lengths, please contact IKO. |
| Remark: | Dashed line portions in the dimensional figures indicate the sensor-included specification / SC. |

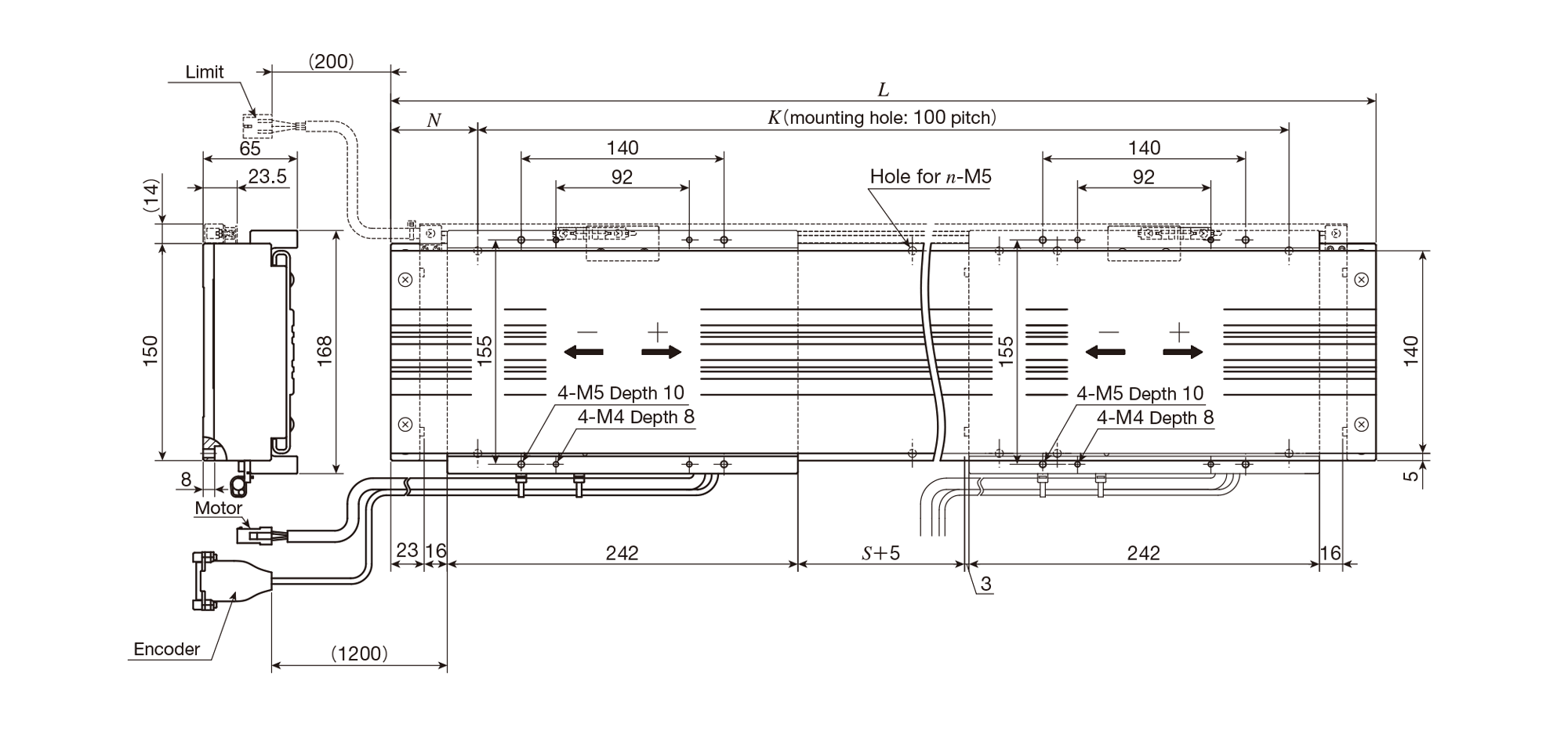

LT150CEGF/DT2 Twin table with cover / High thrust specification 1
LT150CETF/DT2 Twin table with cover / High thrust specification 2
unit: mm
| Identification number | Stroke length S（1） |
Overall length L |
Mounting holes of bed | Total mass of table Kg |
Mass of moving table Kg |
||
|---|---|---|---|---|---|---|---|
| N | K | n | |||||
| LT150CEGF－350/DT2 | 350 | 920 | 60 | 800 | 18 | 20.5 | 2.4 |
| LT150CEGF－550/DT2 | 550 | 1120 | 60 | 1000 | 22 | 23.9 | |
| LT150CEGF－750/DT2 | 750 | 1320 | 60 | 1200 | 26 | 27.3 | |
| LT150CEGF－950/DT2 | 950 | 1520 | 60 | 1400 | 30 | 30.6 | |
| LT150CETF－350/DT2 | 350 | 920 | 60 | 800 | 21 | 20.5 | |
| LT150CETF－550/DT2 | 550 | 1120 | 60 | 1000 | 24.5 | 23.9 | |
| LT150CETF－750/DT2 | 750 | 1320 | 60 | 1200 | 28 | 27.3 | |
| LT150CETF－950/DT2 | 950 | 1520 | 60 | 1400 | 31.5 | 30.6 | |
| Note（1） | For other stroke lengths, please contact IKO. |
| Remark: | Dashed line portions in the dimensional figures indicate the sensor-included specification / SC |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
