LT170H2S Dimension｜IKO Linear Motor Table LT | Mechatronics Series

Dimension

The dimensions of LT170H2S are shown below.

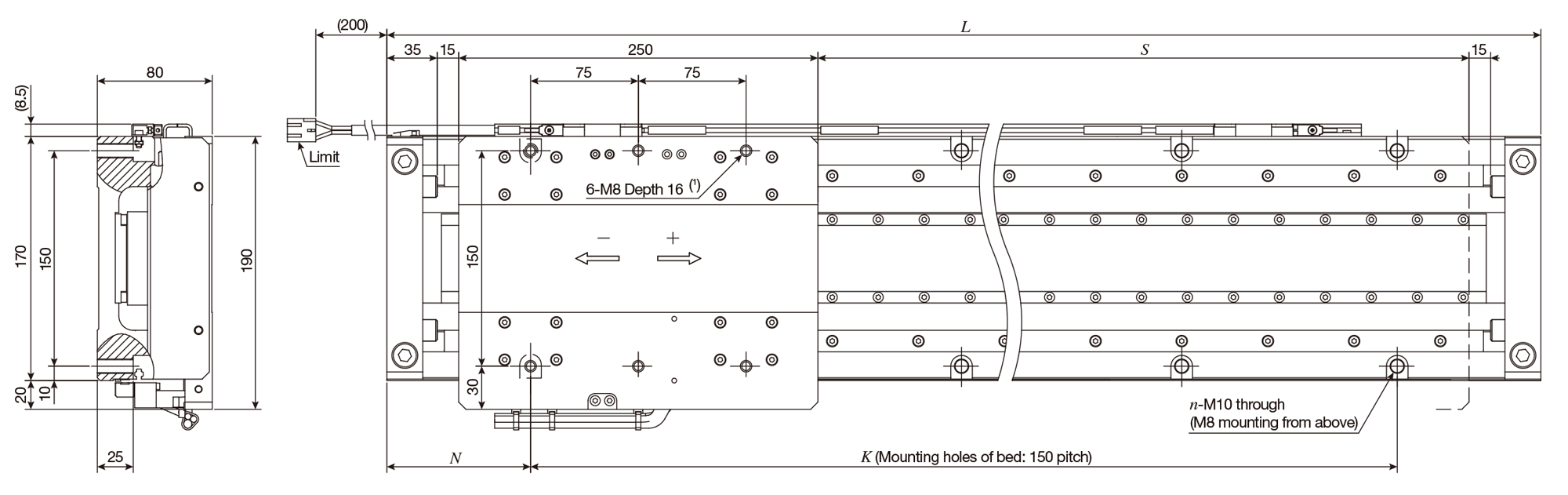

LT170H2S Single table

Unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT170H2S－750	750	1100	100	900	14	25.5	5.5
LT170H2S－1250	1250	1600	50	1500	22	34.5
LT170H2S－1750	1750	2100	75	1950	28	43.5
LT170H2S－2250	2250	2600	100	2400	34	52.5
LT170H2S－2750	2750	3100	50	3000	42	61.5

Note（1）	Inserting mounting screws too deeply may affect the running performance of the moving table. Never insert a screw longer than the depth of the through hole.
Note（2）	For other stroke lengths, please contact IKO.

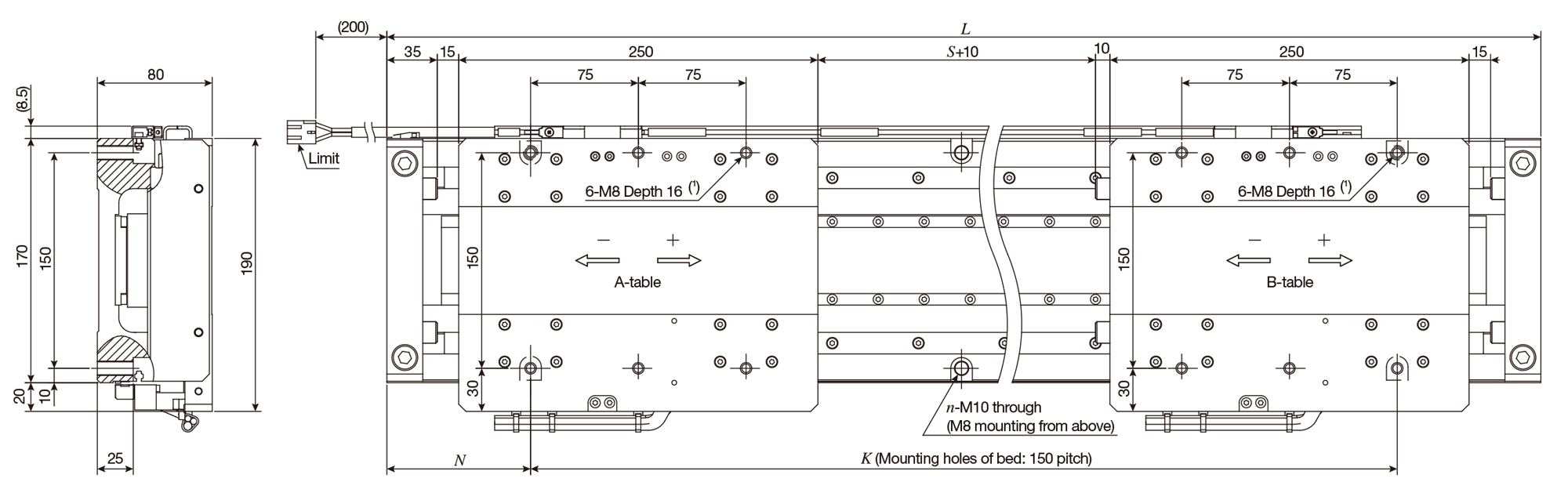

LT170H2S/T2 Twin table

Unit: mm

Identification number	Stroke length S（(2)）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（(2)）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT170H2S－480/T2	480	1100	100	900	14	31	5.5
LT170H2S－980/T2	980	1600	50	1500	22	40
LT170H2S－1480/T2	1480	2100	75	1950	28	49
LT170H2S－1980/T2	1980	2600	100	2400	34	58
LT170H2S－2480/T2	2480	3100	50	3000	42	67

Note（1）	Inserting mounting screws too deeply may affect the running performance of the moving table. Never insert a screw longer than the depth of the through hole.
Note（2）	For other stroke lengths, please contact IKO.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Pick Up

LT Features

Linear Motor Table LT is a direct drive positioning table featuring a low sectional height and light weight. An AC linear servo motor and an optical linear scale are compactly integrated in the moving table and bed made of an aluminum alloy. Three types are offered: Compact Series LT･･･CE, Long Stroke Series LT･･･LD, and High Thrust Series LT･･･H, which allows customers to select the best fit for an application.
Linear Motor Table LT is most suitable for applications requiring high speed operation such as semi-conductor and liquid crystal related equipment, measuring instruments, assembly systems, material transfer equipment.
