LT100CE Dimension｜IKO Linear Motor Table LT | Mechatronics Series

Dimension

The dimensions of LT100CEGS are shown below.

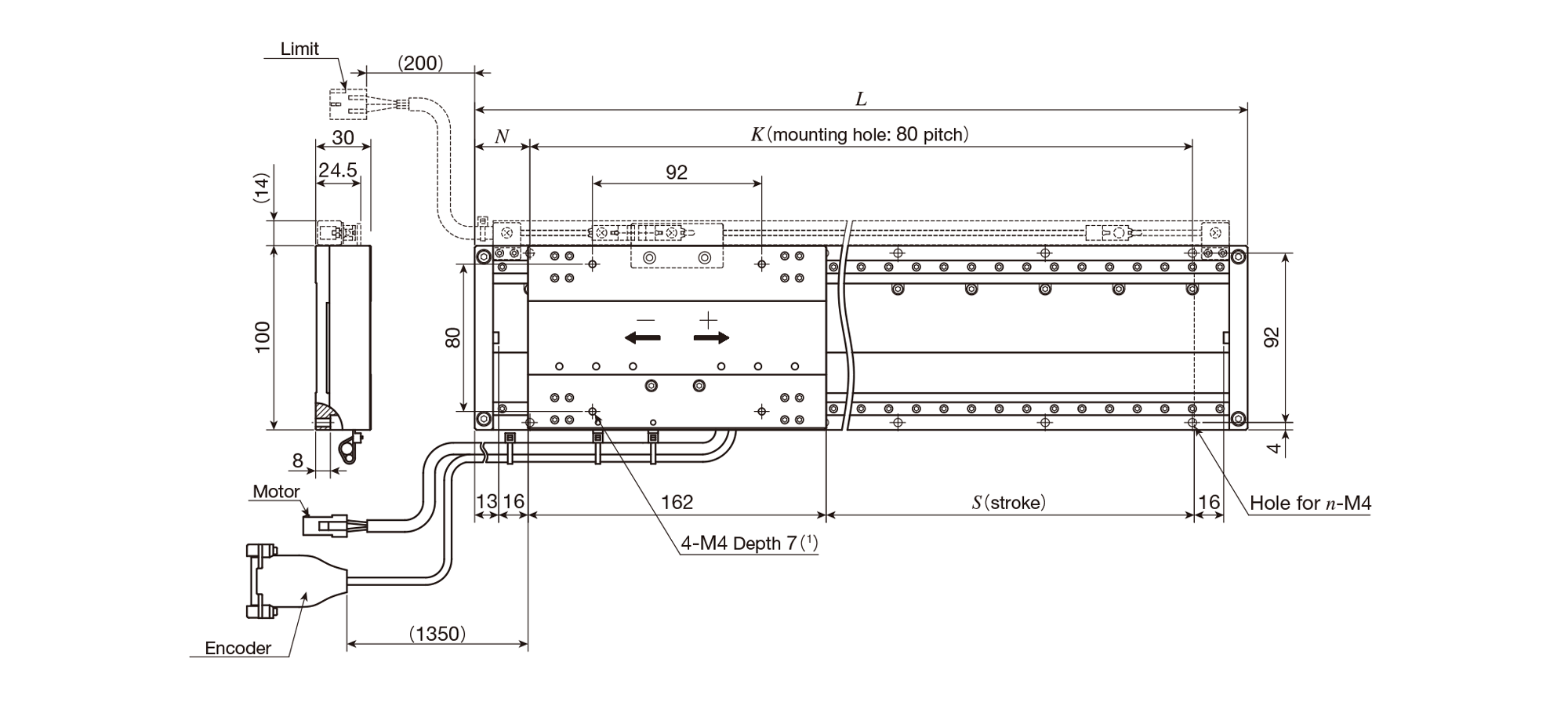

LT100CEGS　Single table

unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT100CEGS－200	200	420	50	320	10	4.9	0.58
LT100CEGS－400	400	620	30	560	16	6.9
LT100CEGS－600	600	820	50	720	20	9.0
LT100CEGS－800	800	1020	30	960	26	11.1
LT100CEGS－1000	1000	1220	50	1120	30	13.1

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
（2）	For other stroke lengths, please contact IKO.
Remark:	Dashed line portions in the dimensional figures indicate the sensor-included specification / SC.

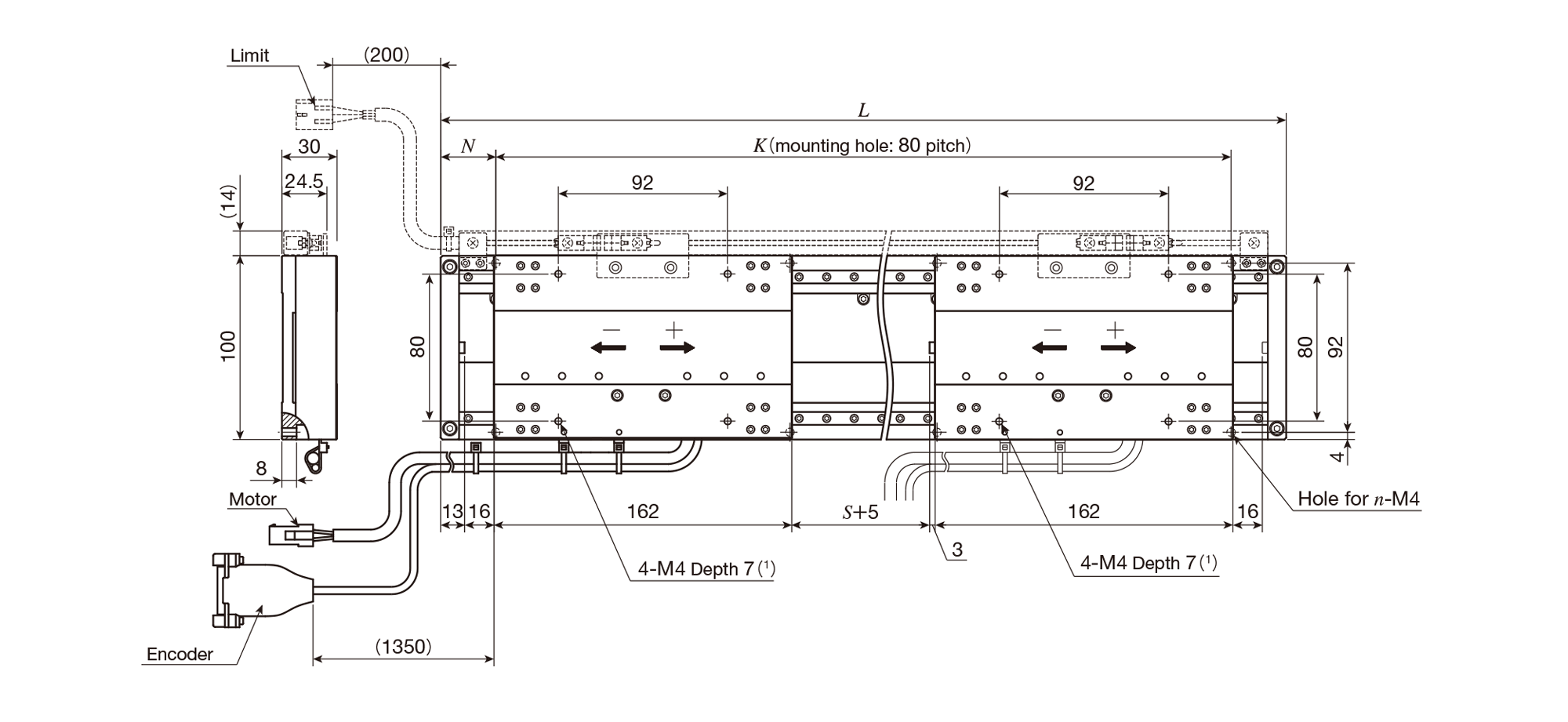

LT100CEGS/T2　Twin table

unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT100CEGS－230/T2	230	620	30	560	16	7.5	0.58
LT100CEGS－430/T2	430	820	50	720	20	9.6
LT100CEGS－630/T2	630	1020	30	960	26	11.7
LT100CEGS－830/T2	830	1220	50	1120	30	13.7

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
（2）	For other stroke lengths, please contact IKO.
Remark:	Dashed line portions in the dimensional figures indicate the sensor-included specification / SC.

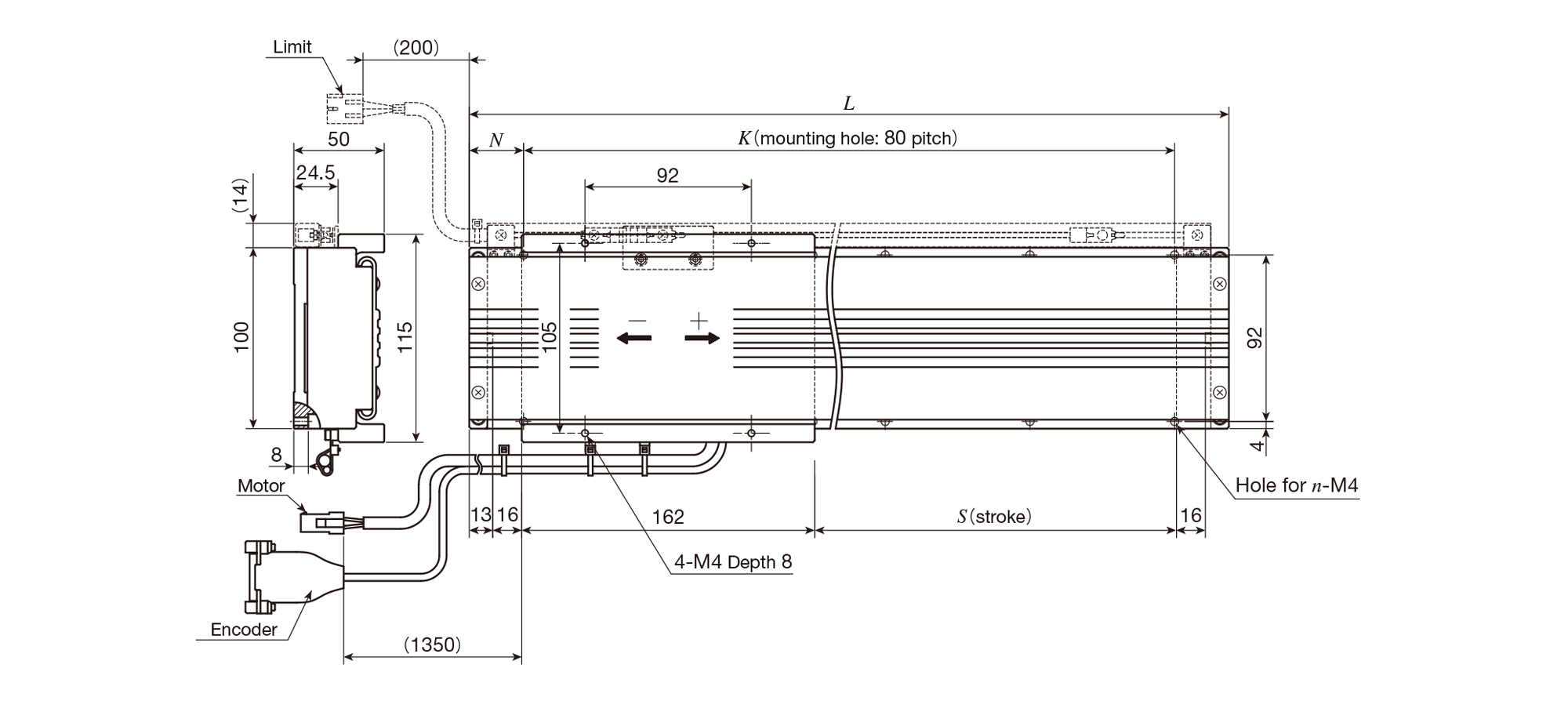

LT100CEGF/D　Single table with cover

unit: mm

Identification number	Stroke length S（1）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（1）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT100CEGF－200/D	200	420	50	320	10	5.6	0.93
LT100CEGF－400/D	400	620	30	560	16	7.8
LT100CEGF－600/D	600	820	50	720	20	10.0
LT100CEGF－800/D	800	1020	30	960	26	12.2
LT100CEGF－1000/D	1000	1220	50	1120	30	14.4

Note（1）	For other stroke lengths, please contact IKO.
Remark:	Dashed line portions in the dimensional figures indicate the sensor-included specification / SC.

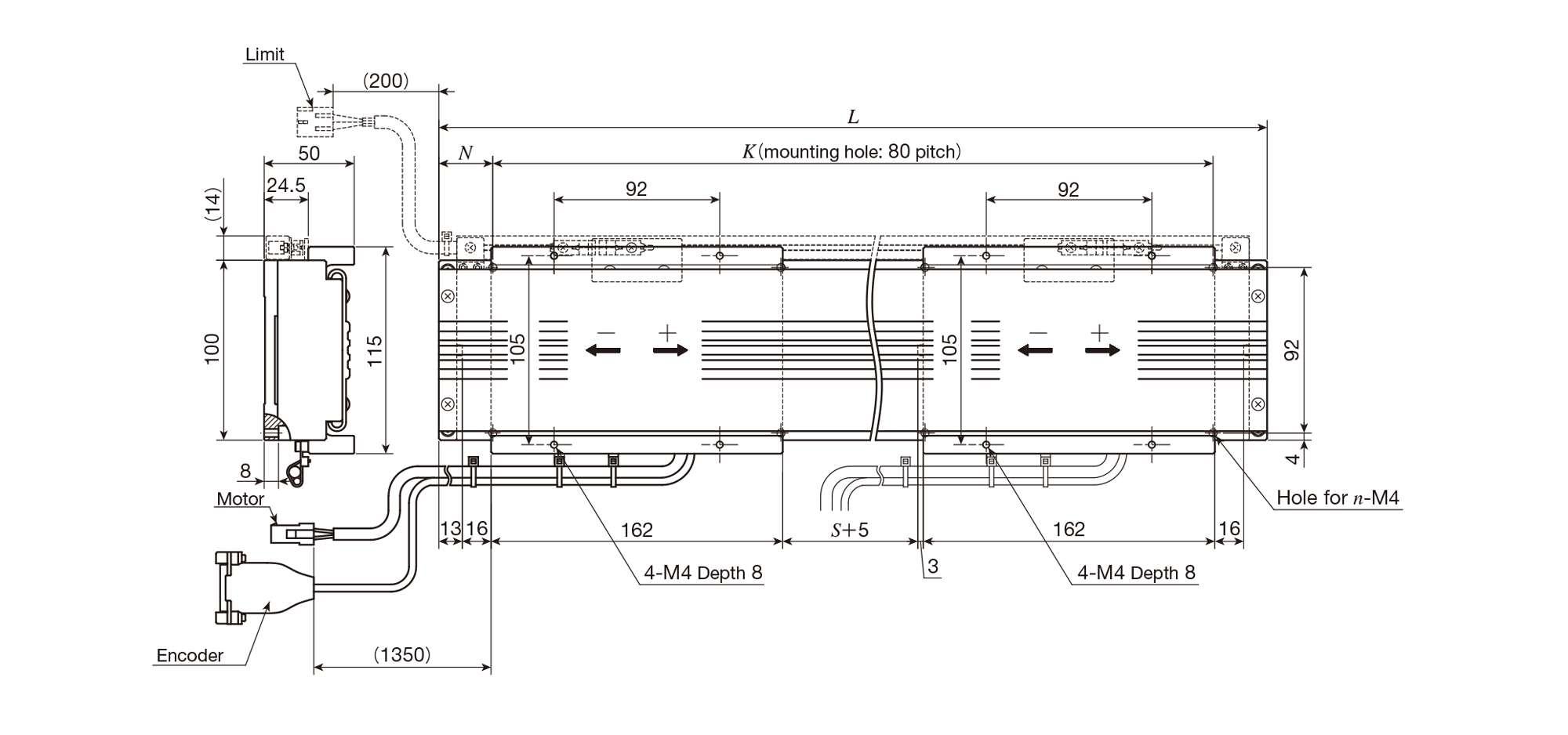

LT100CEGF/DT2　Twin table with cover

unit: mm

Identification number	Stroke length S（1）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（1）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT100CEGF－230/DT2	230	620	30	560	16	8.7	0.93
LT100CEGF－430/DT2	430	820	50	720	20	10.9
LT100CEGF－630/DT2	630	1020	30	960	26	13.2
LT100CEGF－830/DT2	830	1220	50	1120	30	15.4

Note（1）	For other stroke lengths, please contact IKO.
Remark:	Dashed line portions in the dimensional figures indicate the sensor-included specification / SC.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LT Features

Linear Motor Table LT is a direct drive positioning table featuring a low sectional height and light weight. An AC linear servo motor and an optical linear scale are compactly integrated in the moving table and bed made of an aluminum alloy. Three types are offered: Compact Series LT･･･CE, Long Stroke Series LT･･･LD, and High Thrust Series LT･･･H, which allows customers to select the best fit for an application.
Linear Motor Table LT is most suitable for applications requiring high speed operation such as semi-conductor and liquid crystal related equipment, measuring instruments, assembly systems, material transfer equipment.
