LT170H2F Dimension｜IKO Linear Motor Table LT | Mechatronics Series

Dimension

The dimensions of LT170H2F are shown below.

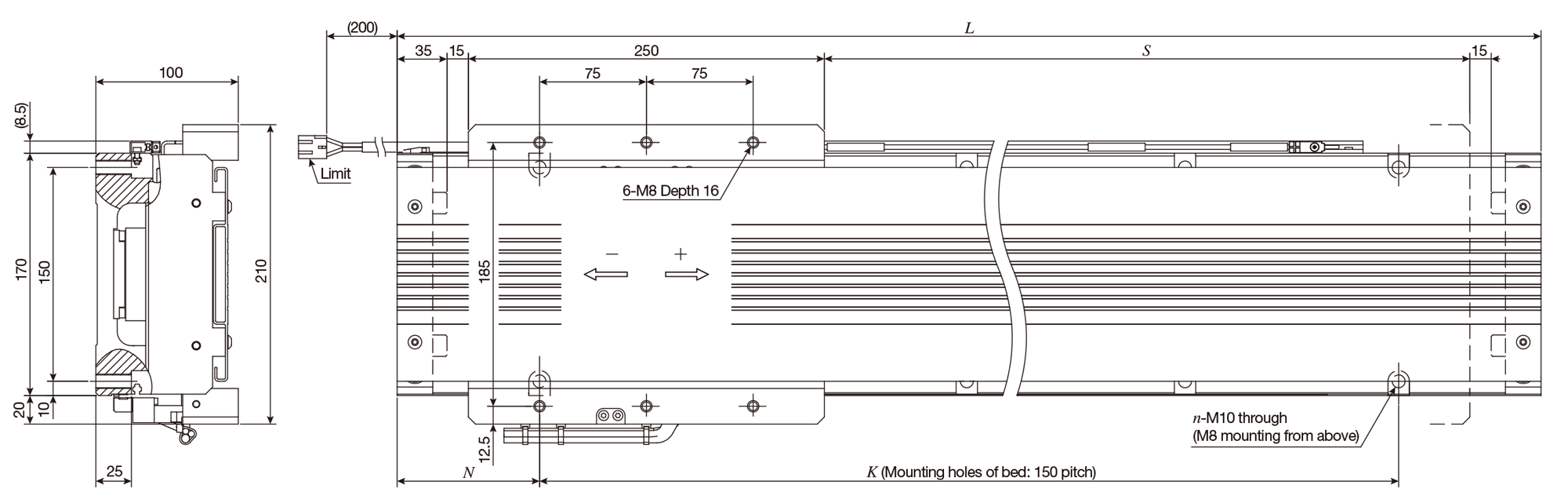

LT170H2F/D Single table with cover

Unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT170H2F－750/D	750	1100	100	900	14	28	6.5
LT170H2F－1250/D	1250	1600	50	1500	22	37	6.5

Note (2)

For other stroke lengths, please contact IKO.

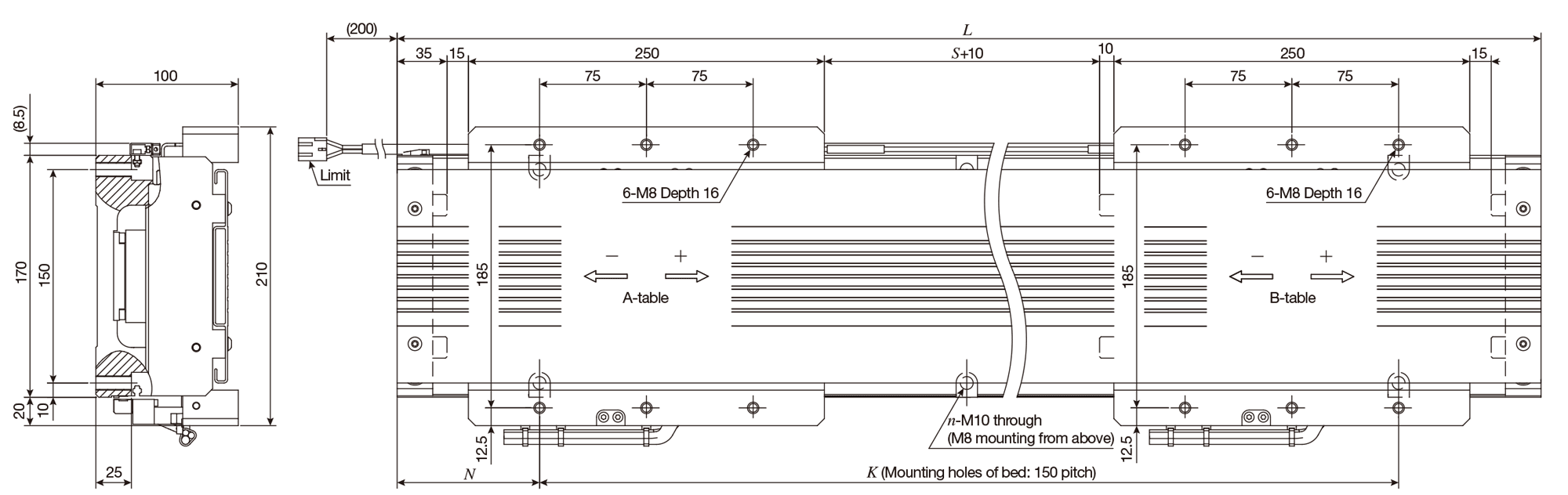

LT170H2F/DT2 Twin table with cover

Unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT170H2F－480/DT2	480	1100	100	900	14	34.5	6.5
LT170H2F－980/DT2	980	1600	50	1500	22	43.5	6.5

Note（2）

For other stroke lengths, please contact IKO.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Pick Up

LT Features

Linear Motor Table LT is a direct drive positioning table featuring a low sectional height and light weight. An AC linear servo motor and an optical linear scale are compactly integrated in the moving table and bed made of an aluminum alloy. Three types are offered: Compact Series LT･･･CE, Long Stroke Series LT･･･LD, and High Thrust Series LT･･･H, which allows customers to select the best fit for an application.
Linear Motor Table LT is most suitable for applications requiring high speed operation such as semi-conductor and liquid crystal related equipment, measuring instruments, assembly systems, material transfer equipment.
