Dimension

The dimensions of LT170HS are shown below.

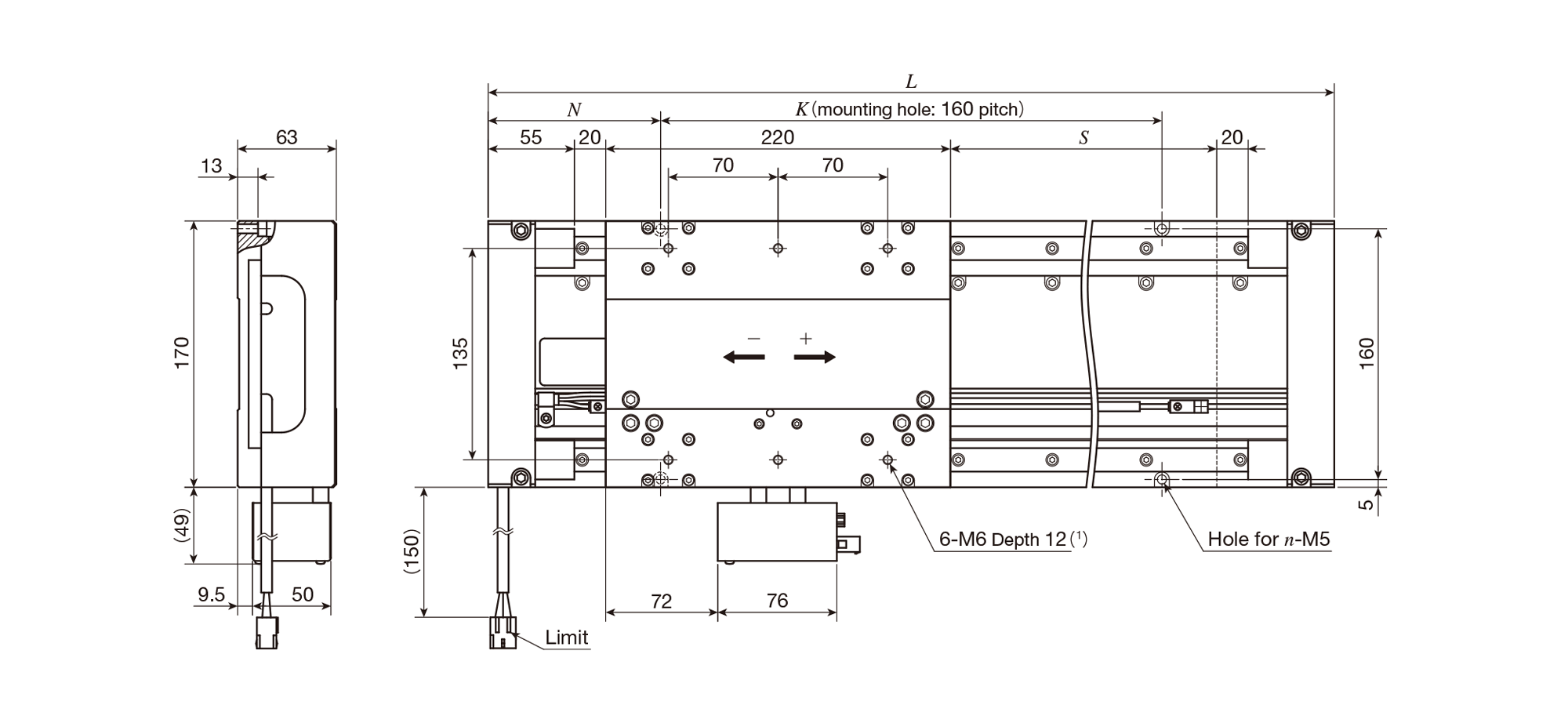

LT170HS　Single table

unit: mm

Identification number	Stroke length S（2）	Stroke length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Stroke length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT170HS－ 650	650	1020	110	800	12	25.1	4.0
LT170HS－1130	1130	1500	110	1280	18	34.9
LT170HS－1610	1610	1980	110	1760	24	44.6
LT170HS－2090	2090	2460	110	2240	30	54.4
LT170HS－2570	2570	2940	110	2720	36	64.1
LT170HS－2670	2670	3040	80	2880	38	66.4

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
（2）	For other stroke lengths, please contact IKO.

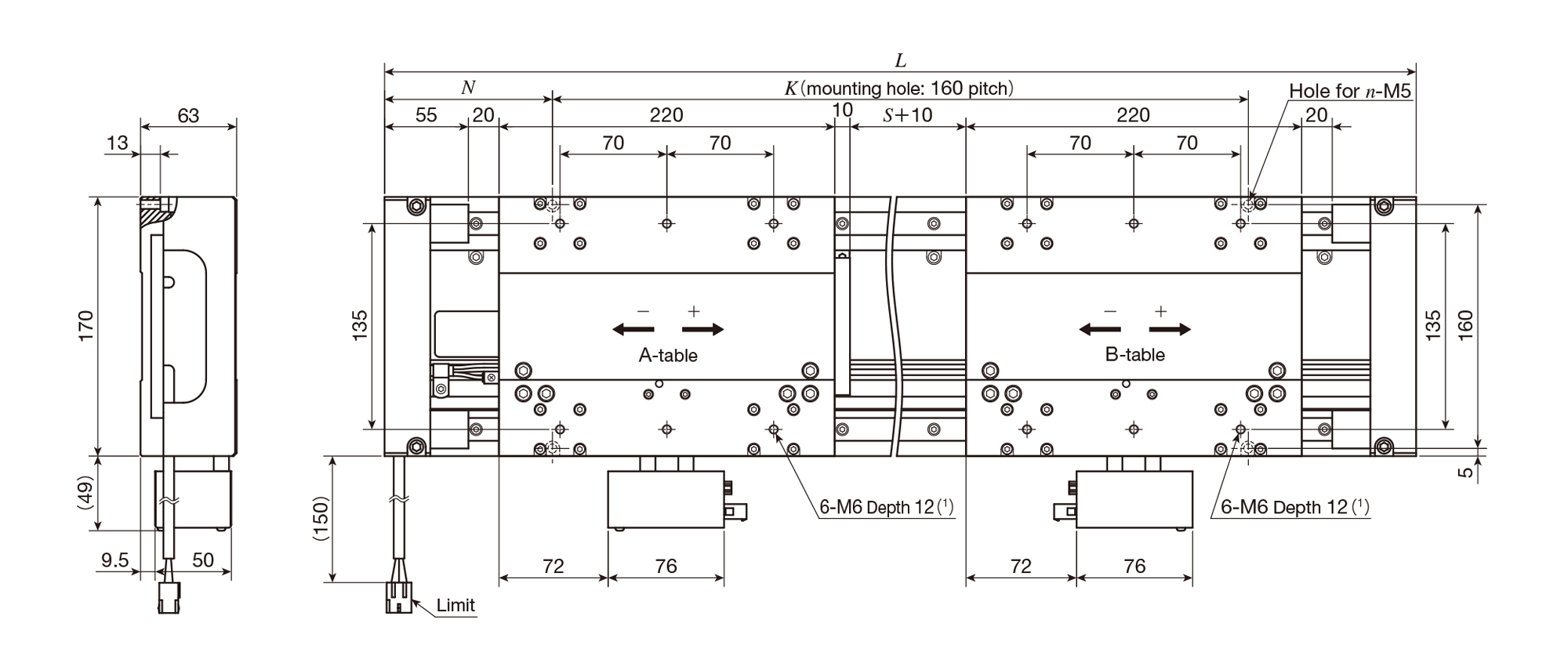

LT170HS/T2　Twin table

unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT170HS－ 410/T2	410	1020	110	800	12	29.1	4.0
LT170HS－ 890/T2	890	1500	110	1280	18	38.9
LT170HS－1370/T2	1370	1980	110	1760	24	48.6
LT170HS－1850/T2	1850	2460	110	2240	30	58.4
LT170HS－2330/T2	2330	2920	110	2720	36	68.1
LT170HS－2430/T2	2430	3040	80	2880	38	70.4

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
（2）	For other stroke lengths, please contact IKO.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Pick Up

LT Features

Linear Motor Table LT is a direct drive positioning table featuring a low sectional height and light weight. An AC linear servo motor and an optical linear scale are compactly integrated in the moving table and bed made of an aluminum alloy. Three types are offered: Compact Series LT･･･CE, Long Stroke Series LT･･･LD, and High Thrust Series LT･･･H, which allows customers to select the best fit for an application.
Linear Motor Table LT is most suitable for applications requiring high speed operation such as semi-conductor and liquid crystal related equipment, measuring instruments, assembly systems, material transfer equipment.
