Nano Linear NT･･･V

IKO Nano Linear NT is a compact linear motor tablewith excellent functionality. This is achieved via an optical linear encoder (connected to the movable steel table) and stator coil and head for said linear encoder connected to the steel bed. For guiding parts of the moving table, Linear Way wellestablished in the area of miniature linear motion rolling guides is used in combination with linear motor and highresolution linear encoder to realize highly accurate positioning. By adopting high performance neodymium magnets for the rotor, a maximum thrust of 36N is generated, and high-speed, high-response positioning is made possible. Furthermore, since the mechanical contact portion uses only a Linear Way, high cleanliness is realized.
Nano Linear NT is most suitable as a compact positioning mechanism for applications such as semiconductor / liquid crystal related manufacturing equipment, inspection instruments, and other assembly equipment which require a clean environment.

Features
Specification
Dimension
- NT38V
- NT55V
- NT80V
System Configuration
- NT38V
- NT55V
- NT80V
Identification Number

Product Features

Advanced Linear Motor Table Carrying Compactness to Extremity

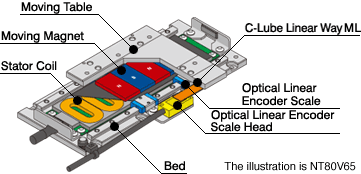

IKO Nano Linear NT is a compact linear motor table that has accomplished excellent functionality. This is achieved by means of an optical linear encoder (connected to the movable steel table), and stator coil and head for linear encoder connected to the steel bed.
For guiding parts of the moving table, Linear Way wellestablished in the area of miniature linear motion rolling guides is used in combination with linear motor and highresolution linear encoder to realize highly accurate positioning.
By adopting high performance neodymium magnets for the rotor, although the size is extremely small, a maximum thrust of 36N is generated, and high-speed, high-response positioning is made possible.
Furthermore, since the mechanical contact portion uses a Linear Way only, high cleanliness is realized.
Nano Linear NT is most suitable as compact positioning mechanism for application such as semiconductor / liquid crystal related manufacturing equipment, inspection instruments and other assembly equipment that require a clean environment.

Motion network support: Drivers compatible with motion network EtherCAT, SSCNETⅢ/H, MECHATROLINK, and RTEX are also available, so an advanced system with streamlined wiring can be configured.; EtherCAT is registered trademark and patented technology, licensed by BeckhoffAutomation GmbH,Germany.
SSCNET is a registered trademark of Mitsubishi Electric Corporation.
MECHATROLINK is a registered trademark of Yaskawa Electric Corporation.
RTEX and Realtime Express are registered trademarks of Panasonic Corporation.

Line-Up

Model and size	NT38V10	NT38V18	NT55V25	NT55V65	NT80V25	NT80V65	NT80V120

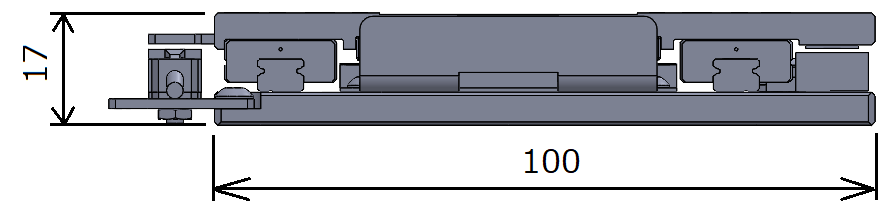

Sectional shape mm
Stroke length mm	10	18	25	65	25	65	120

Compatible with vertical mounting structure

Falling of the moving table in an accidental power shutdown situation is prevented by means of spring balance mechanism.
Making use of the low profile and compact characteristics of NT…V, multiple pick-and-place mechanisms can be installed side-by-side.

Multiple pick and place mechanism (image)
