LT130LD Dimension｜IKO Linear Motor Table LT | Mechatronics Series

Dimension

The dimensions of LT130LD are shown below.

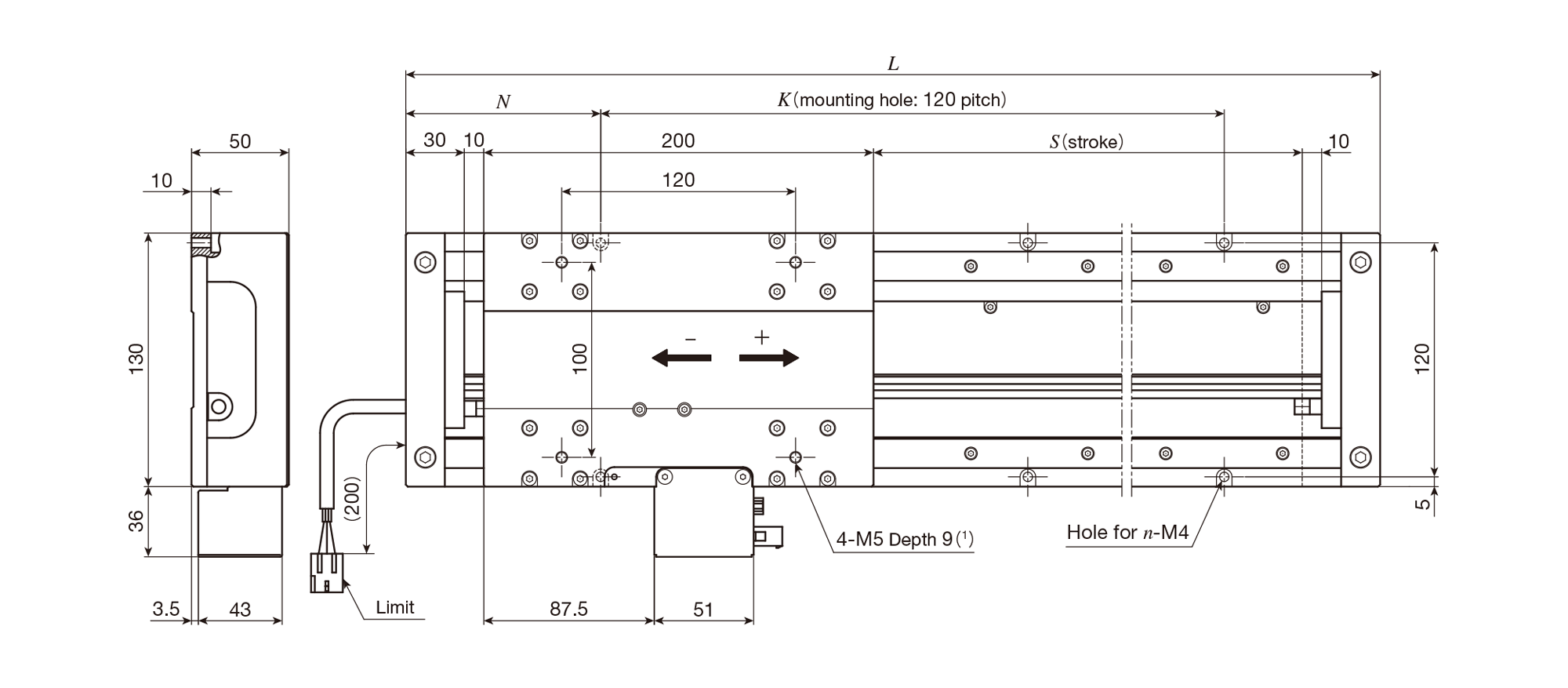

LT130LDGS　Single table

unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT130LDGS－240	240	520	80	360	8	7.6	1.7
LT130LDGS－720	720	1000	80	840	16	13.5
LT130LDGS－1200	1200	1480	80	1320	24	19.4
LT130LDGS－1680	1680	1960	80	1800	32	25.3
LT130LDGS－2160	2160	2440	80	2280	40	31.2
LT130LDGS－2640	2640	2920	80	2760	48	37.1
LT130LDGS－2760	2760	3040	80	2880	50	38.6

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
（2）	For other stroke lengths, please contact IKO.

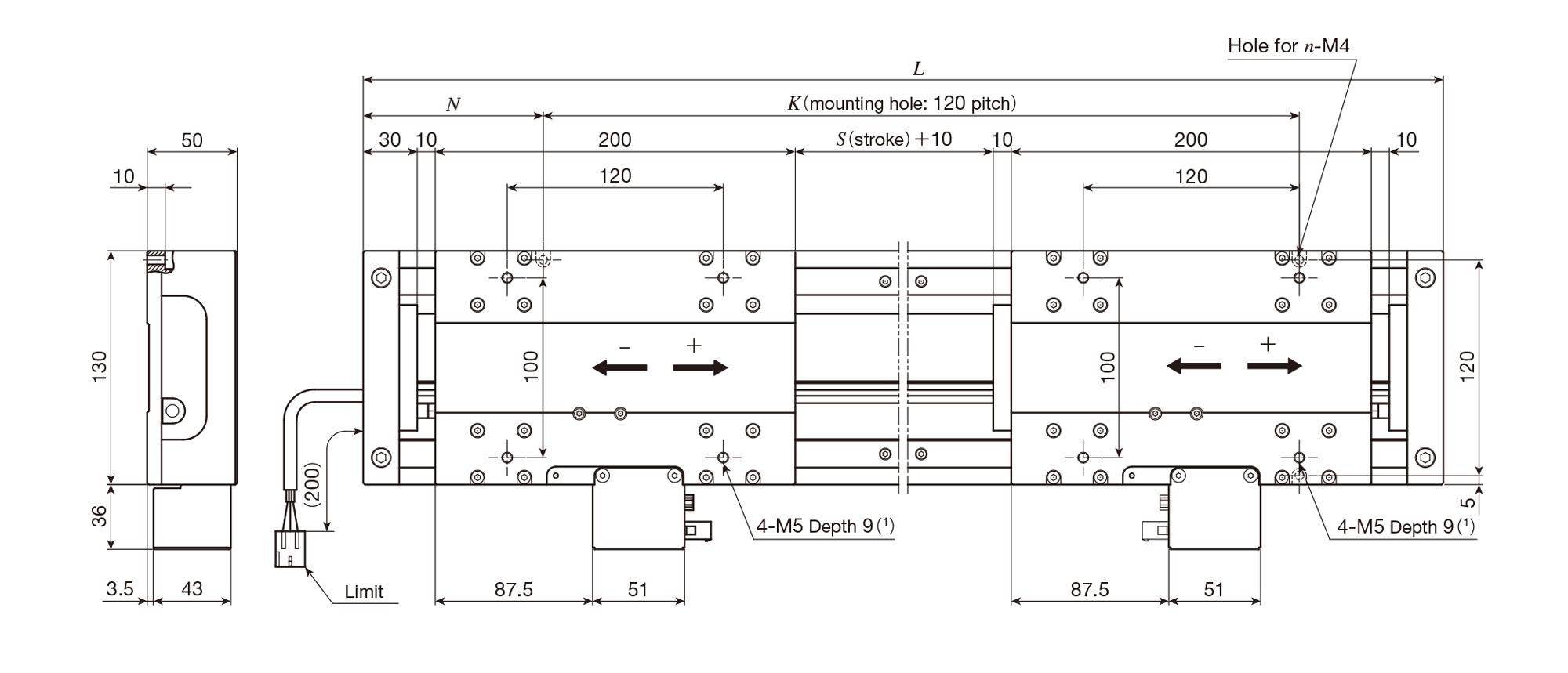

LT130LDGS/T2　Twin table

unit: mm

Identification number	Stroke length S（2）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（2）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT130LDGS－500/T2	500	1000	80	840	16	15.2	1.7
LT130LDGS－980/T2	980	1480	80	1320	24	21.1
LT130LDGS－1460/T2	1460	1960	80	1800	32	27.0
LT130LDGS－1940/T2	1940	2440	80	2280	40	32.9
LT130LDGS－2420/T2	2420	2920	80	2760	48	38.8
LT130LDGS－2540/T2	2540	3040	80	2880	50	40.3

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
（2）	For other stroke lengths, please contact IKO.

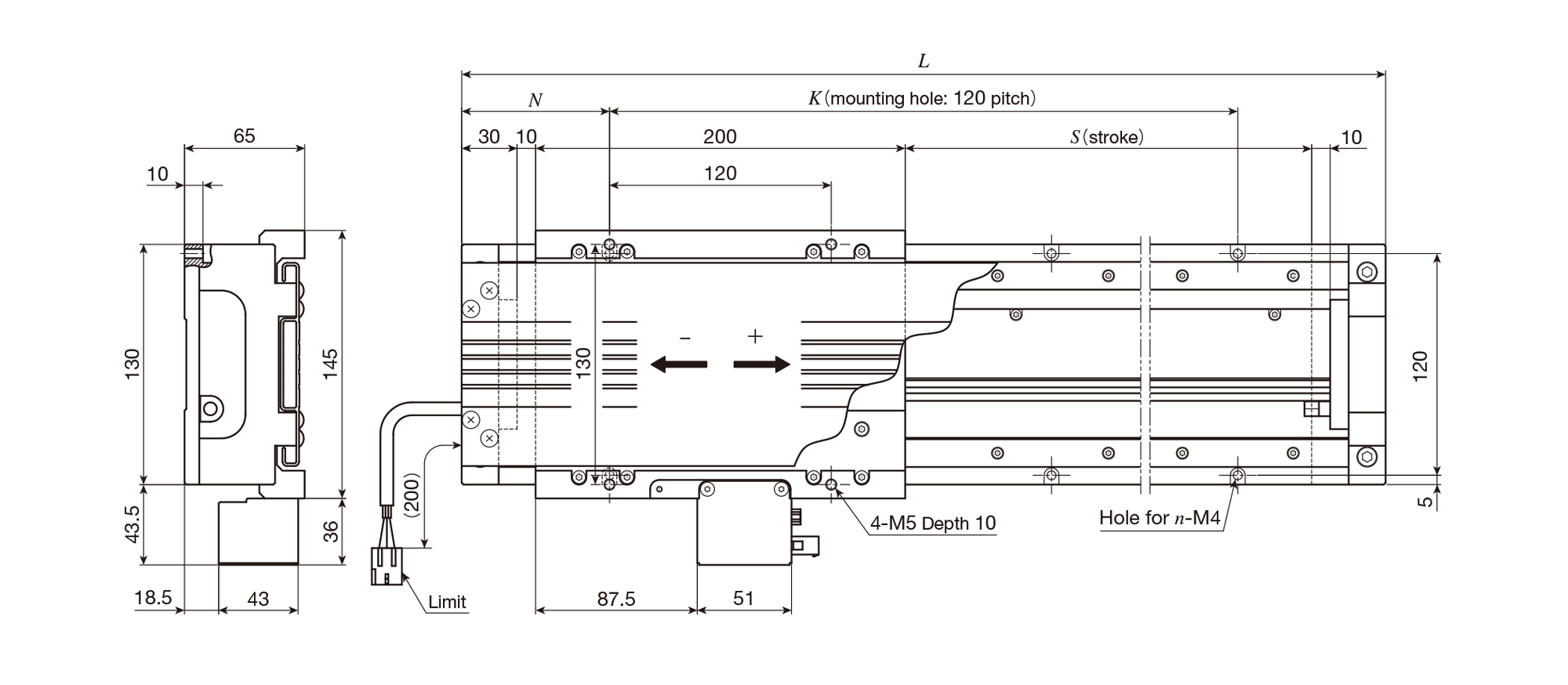

LT130LDGF/D　Single table with cover

unit: mm

Identification number	Stroke length S（1）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（1）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT130LDGF－240/D	240	520	80	360	8	8.3	2.0
LT130LDGF－720/D	720	1000	80	840	16	14.6
LT130LDGF－1200/D	1200	1480	80	1320	24	20.9
LT130LDGF－1680/D	1680	1960	80	1800	32	27.2

Note（1）

For other stroke lengths, please contact IKO.

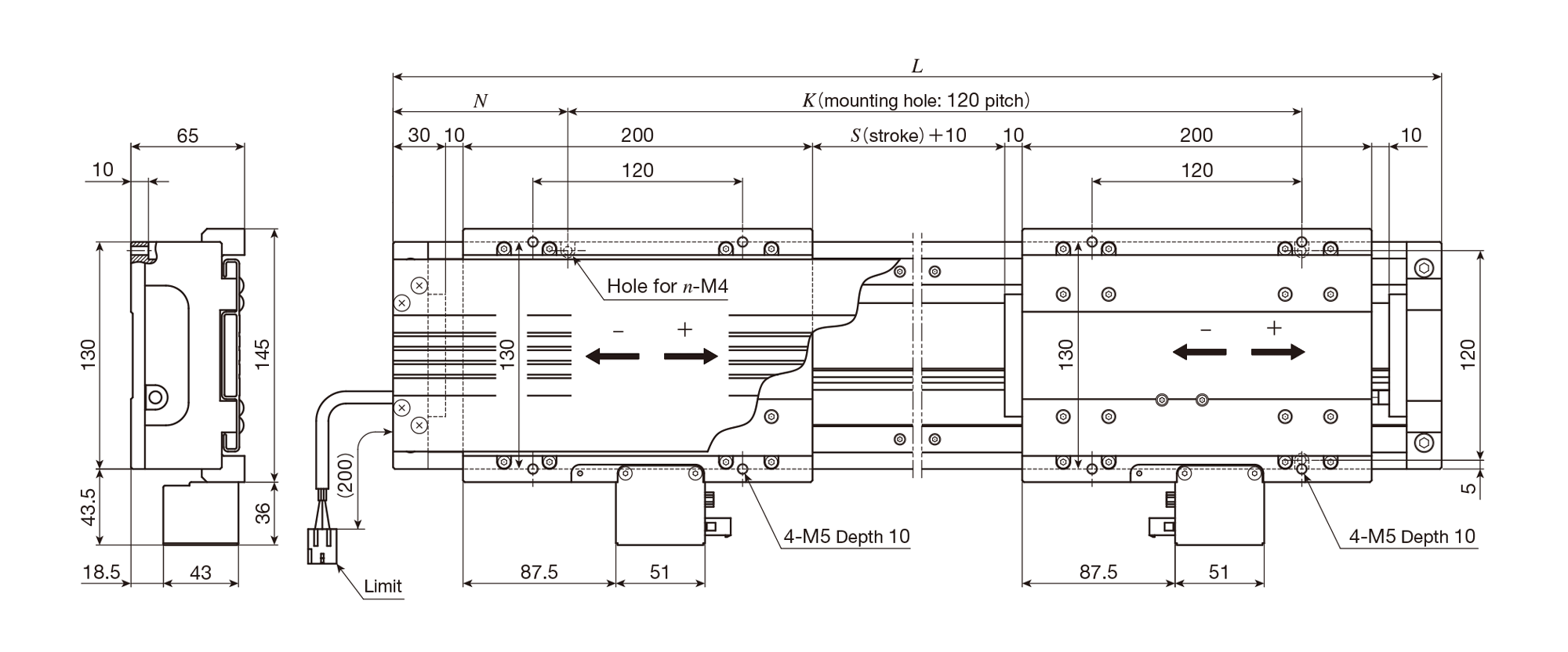

LT130LDGF/DT2　Twin table with cover

unit: mm

Identification number	Stroke length S（1）	Overall length L	Mounting holes of bed			Total mass of table Kg	Mass of moving table Kg
Identification number	Stroke length S（1）	Overall length L	N	K	n	Total mass of table Kg	Mass of moving table Kg
LT130LDGF－500/DT2	500	1000	80	840	16	16.6	2.0
LT130LDGF－980/DT2	980	1480	80	1320	24	22.8
LT130LDGF－1460/DT2	1460	1960	80	1800	32	29.1

Note（1）

For other stroke lengths, please contact IKO.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LT Features

Linear Motor Table LT is a direct drive positioning table featuring a low sectional height and light weight. An AC linear servo motor and an optical linear scale are compactly integrated in the moving table and bed made of an aluminum alloy. Three types are offered: Compact Series LT･･･CE, Long Stroke Series LT･･･LD, and High Thrust Series LT･･･H, which allows customers to select the best fit for an application.
Linear Motor Table LT is most suitable for applications requiring high speed operation such as semi-conductor and liquid crystal related equipment, measuring instruments, assembly systems, material transfer equipment.
