Parallel Drive Stage™ PD･･･S
The
Parallel Drive Stage PD･･･S is an original IKO design that realizes lower sectional height because the mechanism converting the linear motion of the ball screw actuator is placed with 2 shafts parallel into XY motion. This precision positioning stage is also compact and highly durable.
Unlike conventional XY stages with layered 1-shaft actuators, there are no moving motors or cables around the stage of the PD･･･S,making access to the stage top from the outside easy, and allowing for freedom in equipment design with an unrestricted work area.

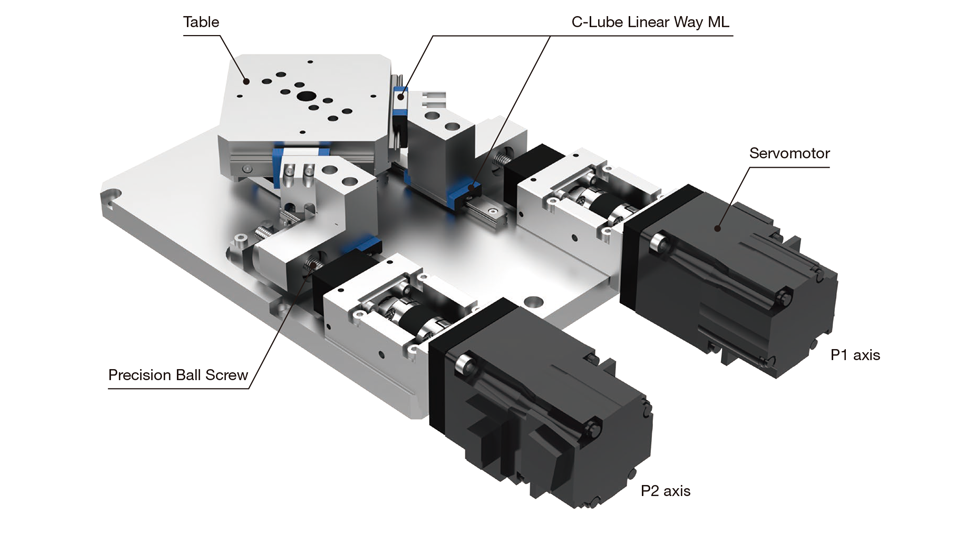

It also utilizes IKO C-Lube maintenance-free Linear Way ML as the guiding part.
Product Features
Unlike conventional XY stages with layered 1-shaft actuators, there are no moving motors or cables around the stage of the PD･･･S,making access to the stage top from the outside easy, and allowing for freedom in equipment design with an unrestricted work area. It also utilizes IKO C-Lube maintenance-free Linear Way ML as the guiding part.
| Operation explanation | Image |
|---|---|

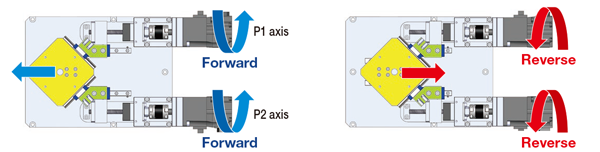

| When the P1 and P2 axes are rotated in the same direction, the table moves in the X direction. |  |

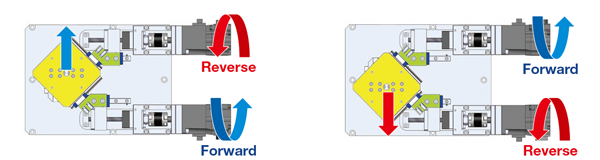

| When the P1 and P2 axes are rotated in reverse configuration, the table moves in the Y direction. |  |

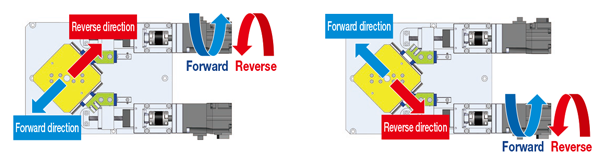

| When only one of the two axes is rotated, the table moves diagonally. |  |
| Remarks |
| *Various movements such as arc motion are possible by combining the operations above. |
| *Forward motion is rotation to the right (clockwise) when looking at the motor unit from the ball screw side. |

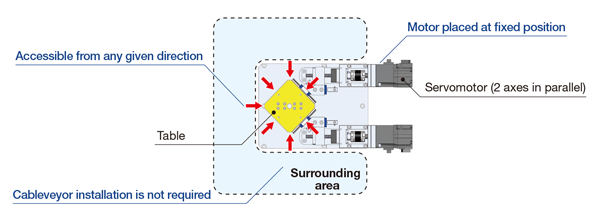

1. Original Parallel Drive Structure
This unique XY stage has motors arranged in parallel. Since the motors are arranged in one direction, side work is easy from any direction. The motors are fixed in one position so they will not move even when the table is operating and there is no need to provide extra space to prevent interference. With no restrictions on the work area, there is freedom in equipment design.

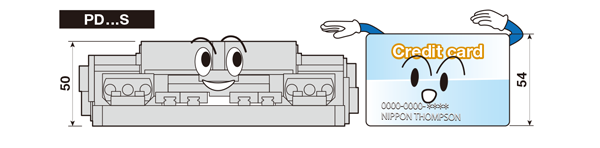

2.Low Profile and Simple Appearance
By arranging the motors in parallel, PD･･･S has an extremely low sectional height compared to conventional stages and it is also lightweight and compact. The wiring and cableveyors required for conventional stages are not necessary, so this stage also has a simple appearance.
3.Diverse Customization Requests Supported
The PD･･･S enables freedom in design while maintaining high accuracy.
Dimensions can be changed and specifications added based on the customer’s requirements. Please contact IKO.
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
