Dimension

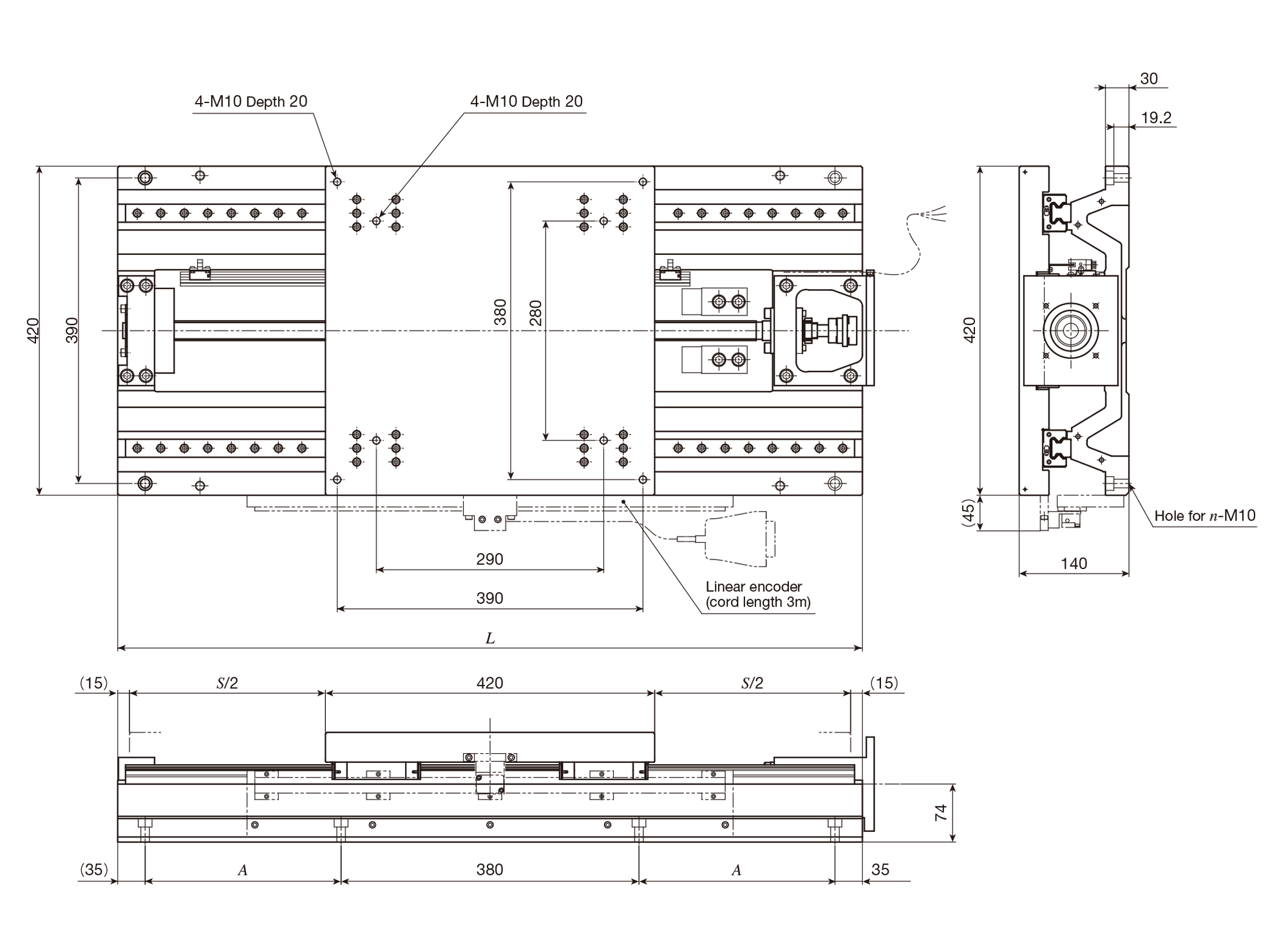

The dimensions of TX420M are shown below.

unit: mm

Identification number Stroke length
S		 Overall length
L		 Mounting holes of bed Mass（Ref.）
Kg
A (the number of
holes×pitch)		 n
TX420M-500 500 950 250 8 183
TX420M-600 600 1050 300 8 197
TX420M-800 800 1250 400（2×200） 12 223

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Related Videos

High precision with almost the same performance as Air Stage

TX Features

IKO Super Precision Positioning Table TX is a positioning table with extremely high accuracy and which was created based on the high precision, high rigidity and well proven IKO Precision Positioning Table LH. It was upgraded from this by using cylindrical rollers for rolling elements (IKO Linear Roller Way Super MX), which has best-in-class running performance as a linear motion rolling guide, coupled with a fully-closed loop control system. Optimal for highly accurate positioning where the other rolling guides are not sufficient.
