Dimension

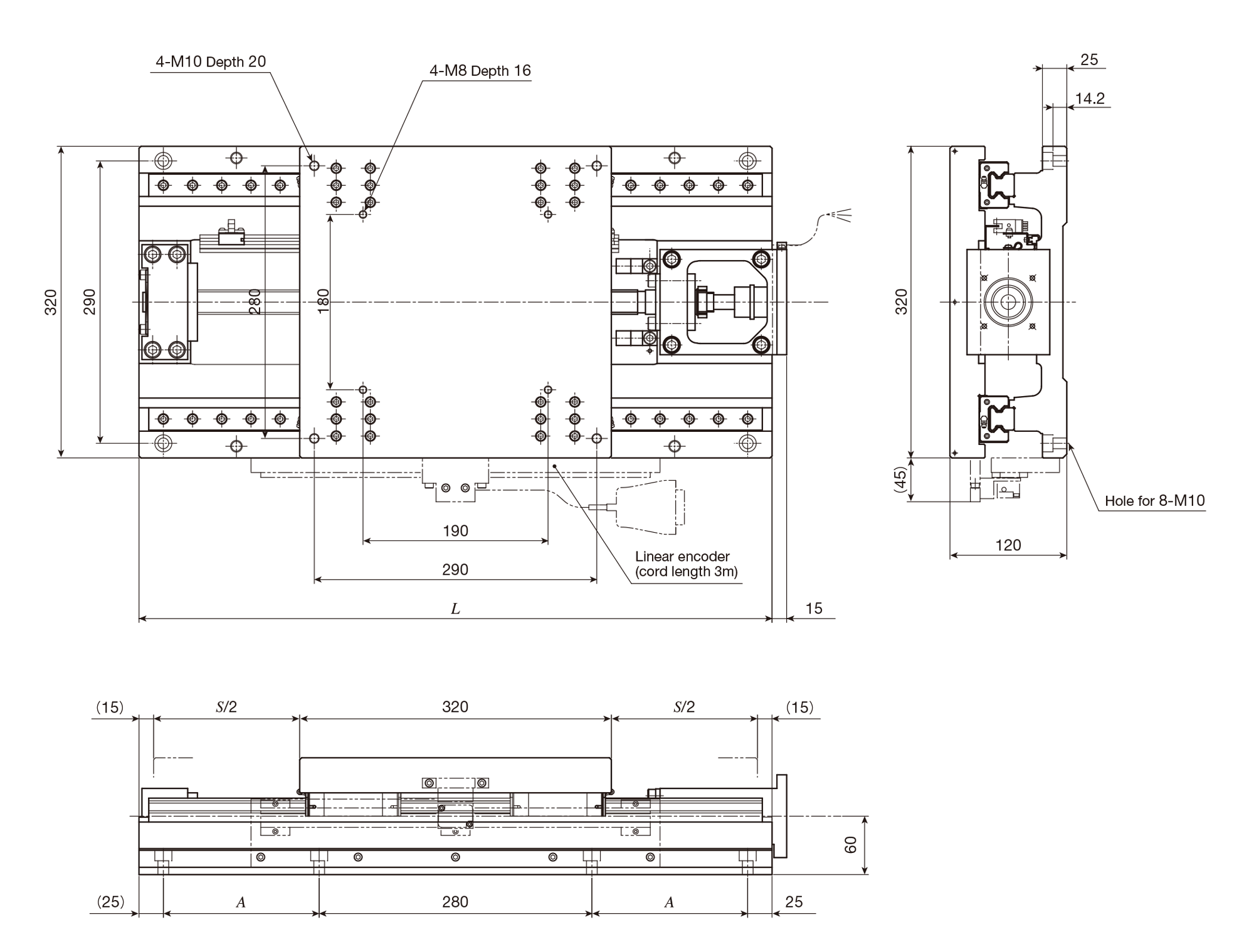

The dimensions of TX320M are shown below.

unit: mm

Identification number Stroke length
S		 Overall length
L		 Mounting holes of bed
A		 Mass（Ref.）
Kg
TX320M-300 300 650 160 104
TX320M-400 400 750 210 115
TX320M-500 500 850 260 124

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Related Videos

High precision with almost the same performance as Air Stage

TX Features

IKO Super Precision Positioning Table TX is a positioning table with extremely high accuracy and which was created based on the high precision, high rigidity and well proven IKO Precision Positioning Table LH. It was upgraded from this by using cylindrical rollers for rolling elements (IKO Linear Roller Way Super MX), which has best-in-class running performance as a linear motion rolling guide, coupled with a fully-closed loop control system. Optimal for highly accurate positioning where the other rolling guides are not sufficient.
