Dimension

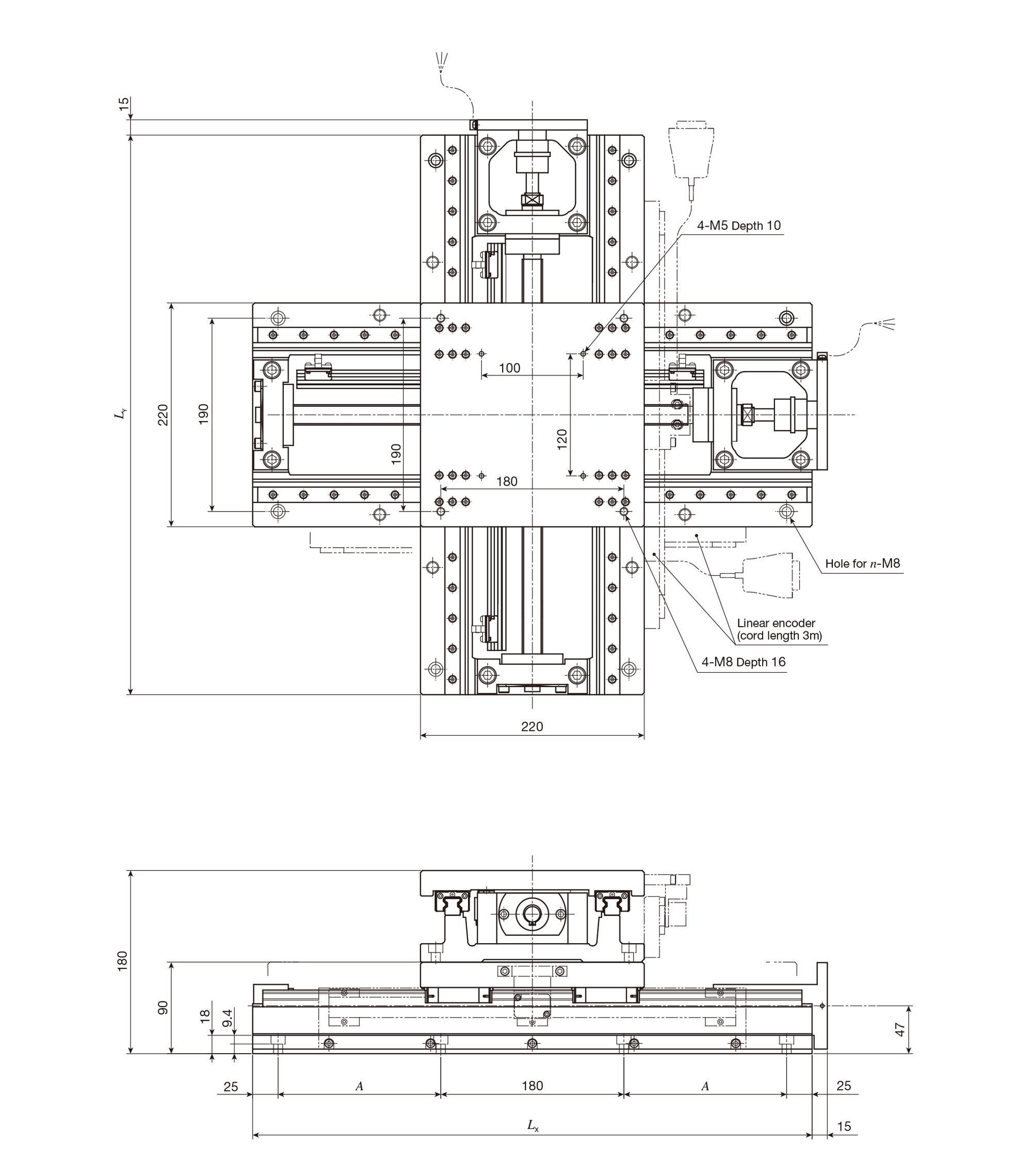

The dimensions of CTX220M are shown below.

unit: mm

Identification number	Stroke length S		Overall length		Mounting holes of bed		Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	A (the number of holes×pitch)	n	Mass（Ref.） Kg
CTX220M-2020	200	200	450	450	110	8	73
CTX220M-3020	300	200	550	450	160	8	78
CTX220M-3030	300	300	550	550	160	8	83
CTX220M-4030	400	300	650	550	210（2×105）	12	88

Remarks

The combination for CTX in the above figure is the standard configuration.
Since other combinations of stroke lengths other than those listed above, different table sizes, as well as production of cableveyor specification are possible, please contact IKO.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TX Features

IKO Super Precision Positioning Table TX is a positioning table with extremely high accuracy and which was created based on the high precision, high rigidity and well proven IKO Precision Positioning Table LH. It was upgraded from this by using cylindrical rollers for rolling elements (IKO Linear Roller Way Super MX), which has best-in-class running performance as a linear motion rolling guide, coupled with a fully-closed loop control system. Optimal for highly accurate positioning where the other rolling guides are not sufficient.
