TSL170SM Dimension｜Specification｜IKO Precision Positioning Table L TSL･･･M

Dimension

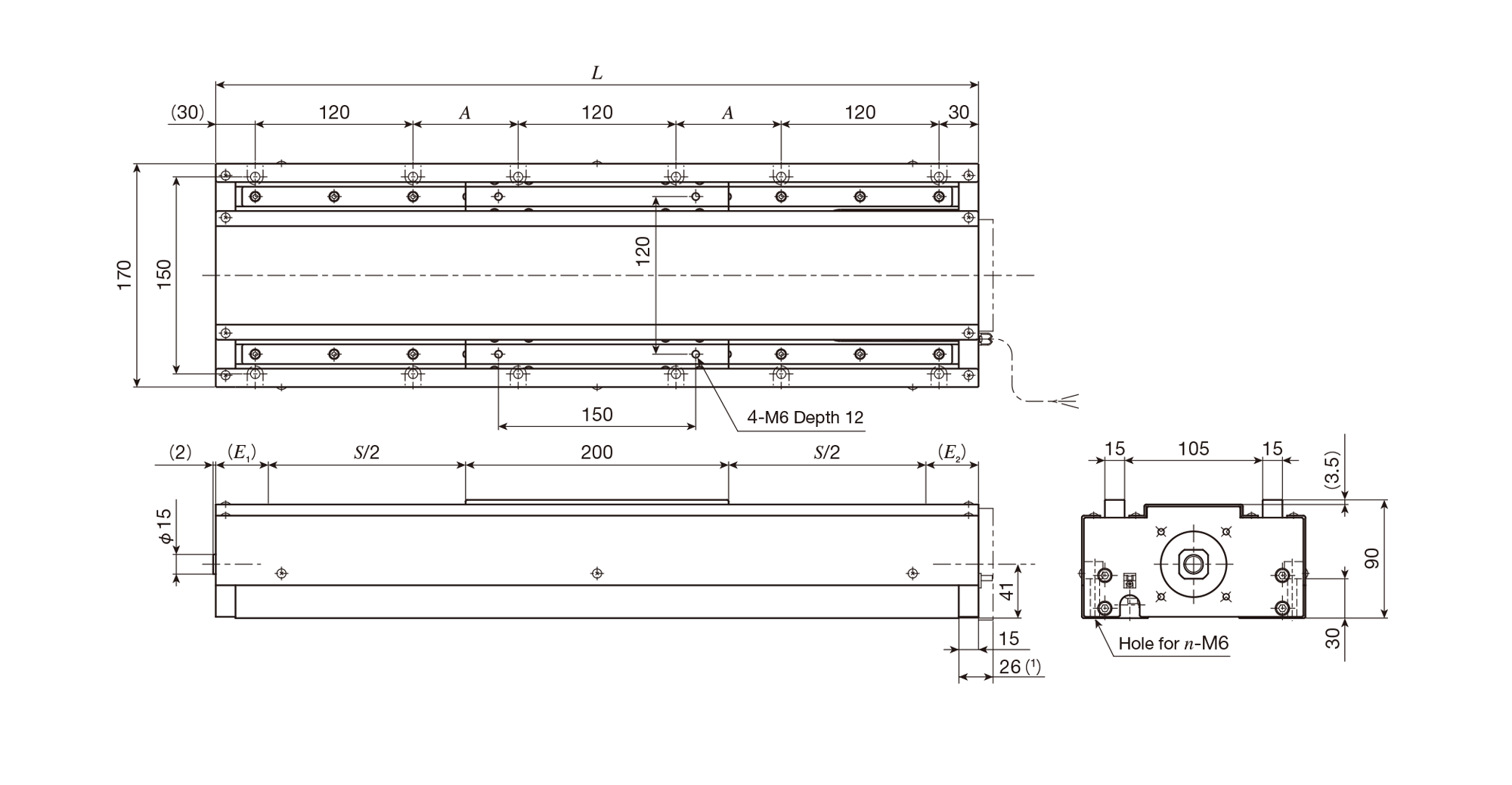

The dimensions of TSL170SM are shown below.

unit: mm

Identification number	Stroke length			Dimensions of table			Mass（Ref.） Kg
	S	E1	E2	Overall length	Mounting holes of bed
	S	E1	E2	L	A(the number of holes×pitch)	n
TSL170SM-300	300	40	40	580	80	12	14.8
TSL170SM-400	400			680	130	12	16.6
TSL170SM-500	500			780	180	12	18.5
TSL170SM-600	600			880	230	12	20.3
TSL170SM-800	800			1080	330(2×165)	16	24.0
TSL170SM-1000	1000			1280	430(2×215)	16	27.7

Note（1）

Applicable to AT207.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Precision Positioning Table L Features

Precision Positioning Table L is a light weight, long stroke type positioning table in which two rows of high accuracy, high rigidity type IKO Linear Ways are incorporated on a slide table and bed made of high-strength aluminum alloy together with a precision ball screw for the drive mechanism. Parallel arrangement of two sets of Linear Ways achieves stability as well as high running and positional accuracy in addition to high load capacity. Many variations in table sizes and stroke lengths are available. Dedicated XY brackets are also available for this series. Therefore, an assembly such as an X-Y robot can be readily constructed to suit the requirements of each application. With IKO's C-Lube technology integrated in the linear ways, the maintenance work including regreasing of the Linear Ways and the ball screw can be greatly reduced.
This series is widely used and its excellent performance has been verified as a high accuracy positioning mechanism for assembly systems, working machines, measuring instruments, etc.
