TSLH320 Dimension｜Precision Positioning Table LH TSLH･･･M/CTLH･･･M

Dimension

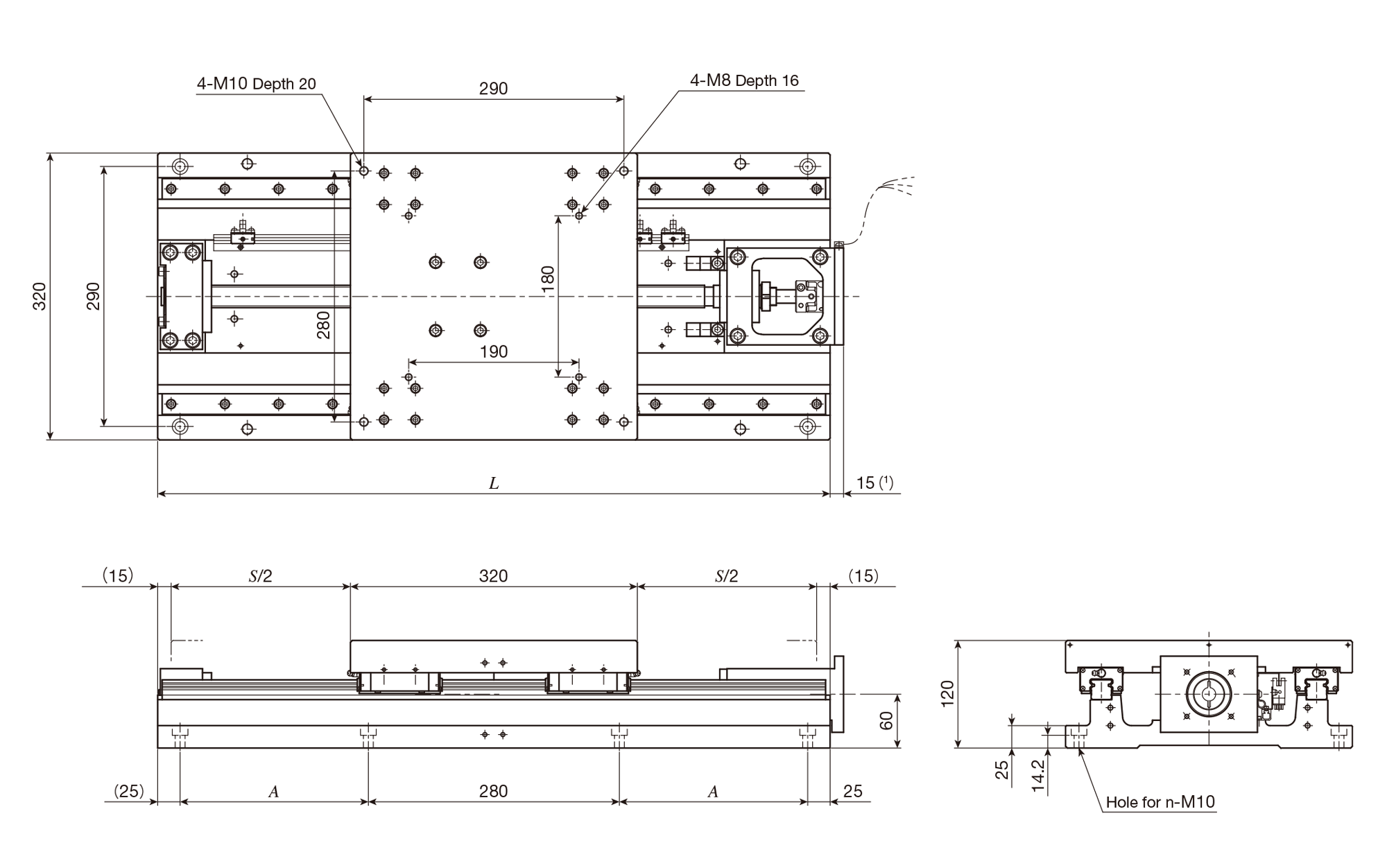

The dimensions of TSLH320M are shown below.

unit: mm

Identification number	Stroke length S	Overall length L	Mounting holes of bed		Mass（Ref.） Kg
Identification number	Stroke length S	Overall length L	A(the number of holes×pitch)	n	Mass（Ref.） Kg
TSLH320M-300	300	650	160	8	100
TSLH320M-400	400	750	210	8	109
TSLH320M-500	500	850	260	8	118
（TSLH320M-600）	600	950	310	8	127
（TSLH320M-800）	800	1150	410(2×205)	12	146
（TSLH320M-1000）	1000	1350	510(2×255)	12	164

Note（1）	When selecting AT305, 26mm is applied. When selecting AT313, 20mm is applied.
Remark:	If you are interested in a product of identification number shown in （）, please contact IKO.

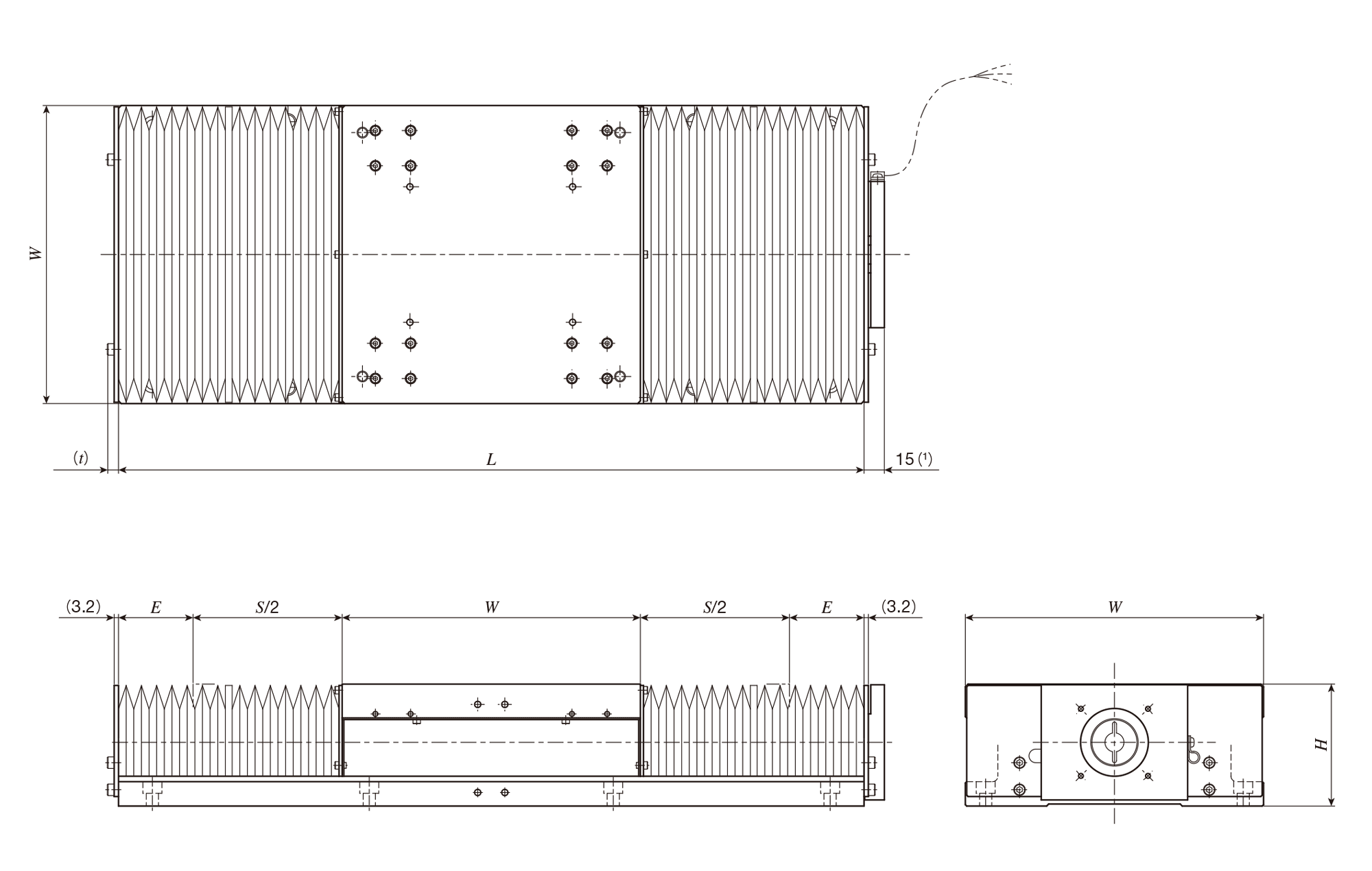

TSLH320M…/J Table with bellows

unit: mm

Identification number	Stroke length S	Overall length L	W	H	E	t	Mass（Ref.） Kg
TSLH220M-150/J	110	400	220	90	35	8.2	33
TSLH220M-200/J	150	450			40		36
TSLH220M-250/J	180	500			50		38
TSLH220M-300/J	220	550			55		40
TSLH220M-400/J	300	650			65		44
（TSLH220M- 500/J）	370	750			80		49
（TSLH220M- 600/J）	440	850			95		53
TSLH320M- 300/J	230	650	320	120	50	9.2	104
TSLH320M- 400/J	310	750			60		113
TSLH320M- 500/J	400	850			65		129
（TSLH320M- 600/J）	480	950			75		131
（TSLH320M- 800/J）	640	1150			95		151
（TSLH320M-1000/J）	800	1350			115		169
TSLH420M- 500/J	410	950	420	140	60	10.5	183
TSLH420M- 600/J	500	1050			65		195
TSLH420M- 800/J	660	1250			85		219
（TSLH420M-1000/J）	830	1450			100		244

Note（1）	When selecting AT305, 26mm is applied. When selecting AT306, 27mm is applied. When selecting AT313, 20mm is applied. When selecting AT314, 23mm is applied.
Remarks	For the usage in vertical axis, the dimension of the bellows is different, so please contact IKO. If you are interested in a product of identification number shown in （）, please contact IKO. For mounting dimensions, see the dimension tables for TSLH220M, TSLH320M, and TSLH420M.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LH Features

Precision Positioning Table LH (TSLH/CTLH) is a positioning table featuring high reliability, high accuracy, and high rigidity. The slide table and bed are made of cast iron, and therefore have high rigidity and superior vibration damping characteristics. IKO Linear Ways are integrated along with a precision ball screw as the drive mechanism. With the parallel arrangement of two sets of Linear Ways, this table provides stable and high running and positioning accuracy, as well as high load capacity. This series includes four sizes with table widths ranging from 120 mm to 420 mm (super large size). Two axis tables which combine single axis tables are also available in this series.
This table is most suitable for use as a high accuracy positioning mechanism with a large applied load and a relatively long stroke.
