CTLH120 Dimension｜Precision Positioning Table LH TSLH･･･M/CTLH･･･M

Dimension

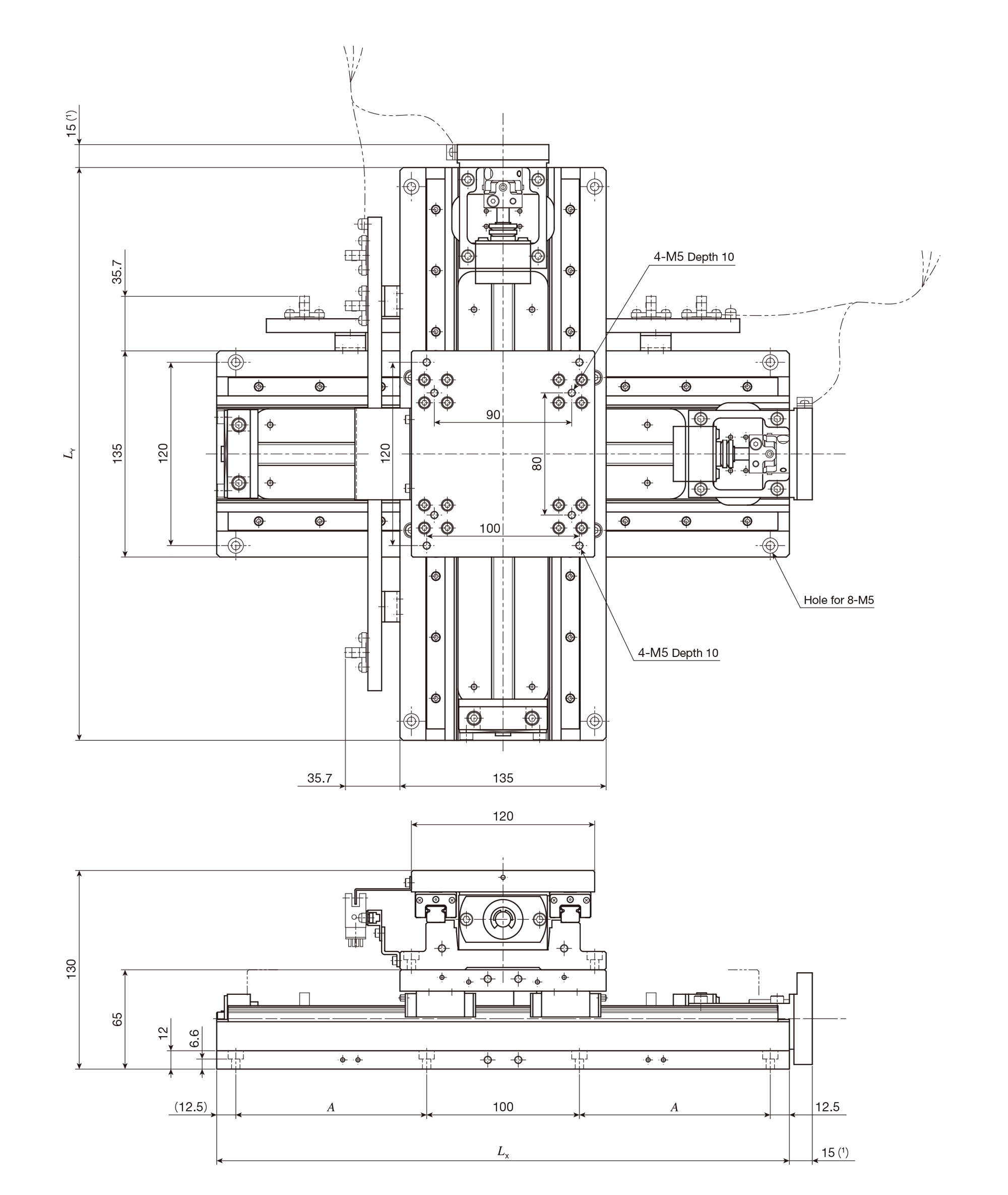

The dimensions of CTLH120M are shown below.

unit: mm

Identification number	Stroke length S		Overall length		Mounting holes of bed A	Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	Mounting holes of bed A	Mass（Ref.） Kg
CTLH120M-1010	100	100	275	275	75	20
CTLH120M-2010	200	100	375	275	125	22
CTLH120M-2020	200	200	375	375	125	24
CTLH120M-3020	300	200	475	375	175	26
CTLH120M-3030	300	300	475	475	175	28

Note（1）	When selecting AT302 or AT308, 21mm is applied.
Remark:	As a combination of stroke length other than listed above and a table of different size is possible, please contact IKO.

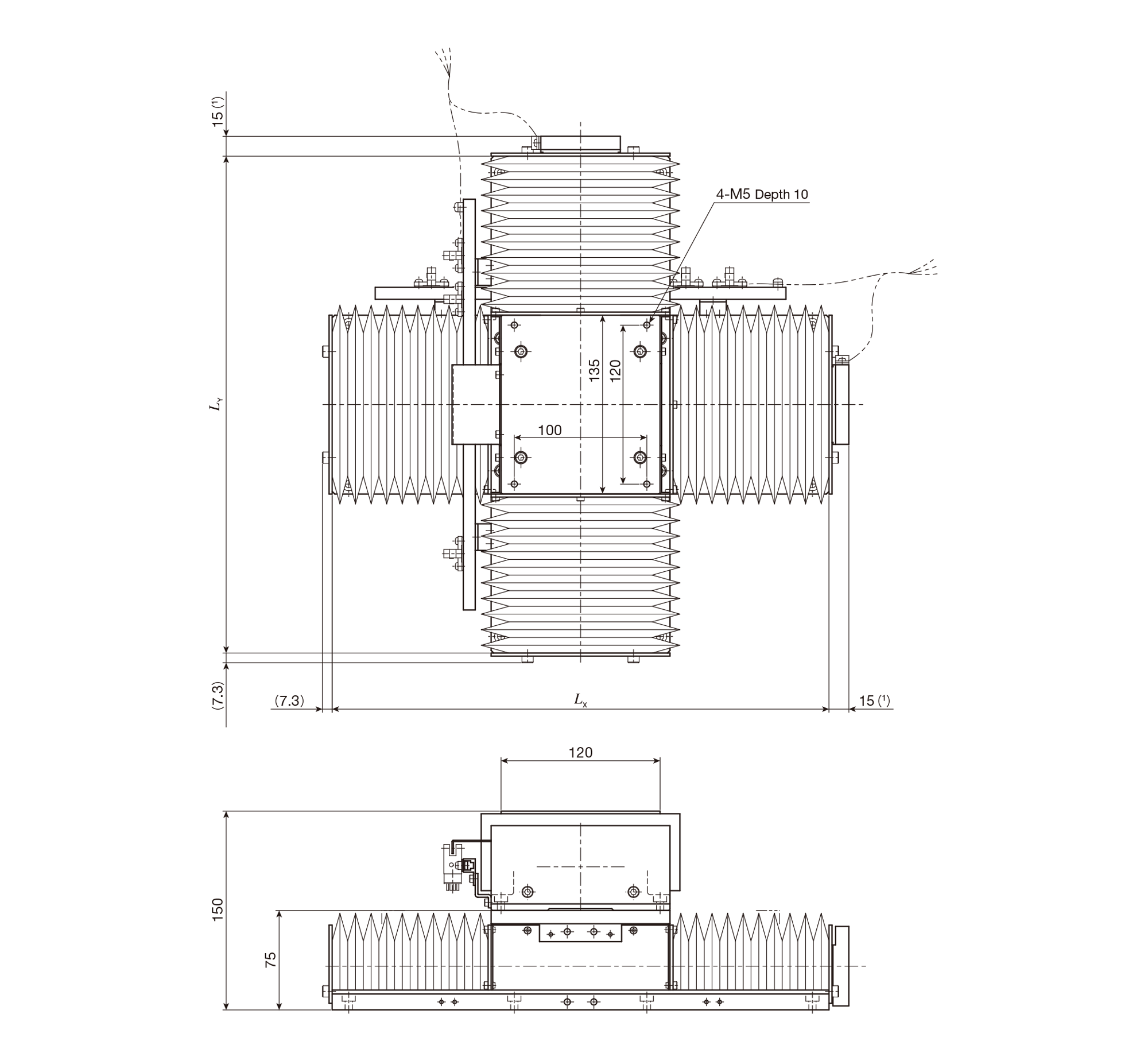

CTLH120M…/J Table with bellows

unit: mm

Identification number	Stroke length S		Overall length of bed		Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	Mass（Ref.） Kg
CTLH120M-1010/J	85	85	275	275	25
CTLH120M-2010/J	165	85	375	275	27
CTLH120M-2020/J	165	165	375	375	29
CTLH120M-3020/J	240	165	475	375	31
CTLH120M-3030/J	240	240	475	475	33

Note（1）	When selecting AT302 or AT308, 21mm is applied.
Remarks	For the usage in vertical axis, the dimension of the bellows is different, so please contact IKO. For mounting dimensions, see the dimension table for TSLH120M.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LH Features

Precision Positioning Table LH (TSLH/CTLH) is a positioning table featuring high reliability, high accuracy, and high rigidity. The slide table and bed are made of cast iron, and therefore have high rigidity and superior vibration damping characteristics. IKO Linear Ways are integrated along with a precision ball screw as the drive mechanism. With the parallel arrangement of two sets of Linear Ways, this table provides stable and high running and positioning accuracy, as well as high load capacity. This series includes four sizes with table widths ranging from 120 mm to 420 mm (super large size). Two axis tables which combine single axis tables are also available in this series.
This table is most suitable for use as a high accuracy positioning mechanism with a large applied load and a relatively long stroke.
