CTLH320 Dimension｜Precision Positioning Table LH TSLH･･･M/CTLH･･･M

Dimension

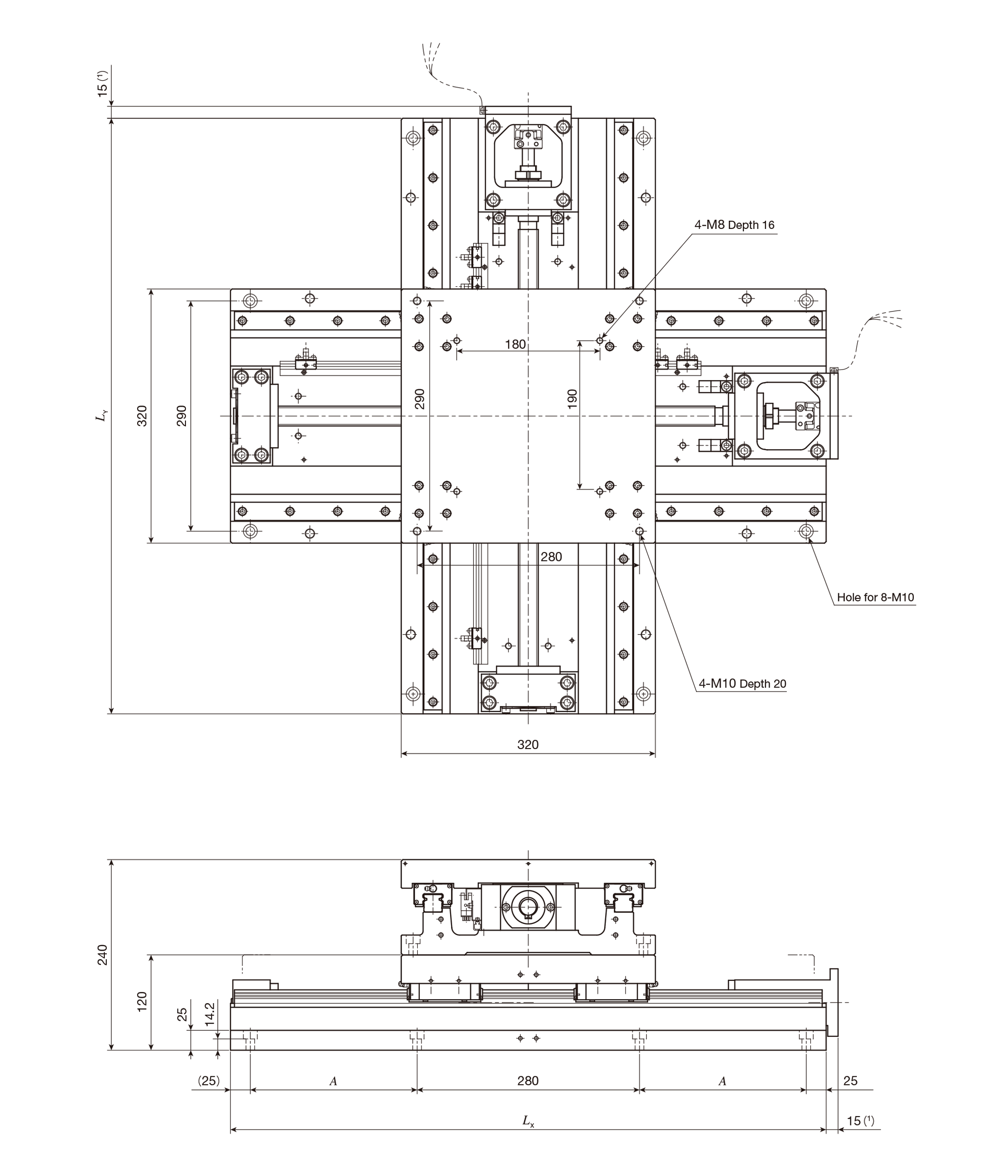

The dimensions of CTLH320M are shown below.

unit: mm

Identification number	Stroke length S		Overall length		Mounting holes of bed A	Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	Mounting holes of bed A	Mass（Ref.） Kg
CTLH320M-3030	300	300	650	650	160	199
CTLH320M-4030	400	300	750	650	210	209
CTLH320M-4040	400	400	750	750	210	218
CTLH320M-5040	500	400	850	750	260	227
CTLH320M-5050	500	500	850	850	260	236

Note（1）	When selecting AT305, 26mm is applied. When selecting AT313, 20mm is applied.
Remark:	As a combination of stroke length other than listed above and a table of different size is possible, please consult IKO.

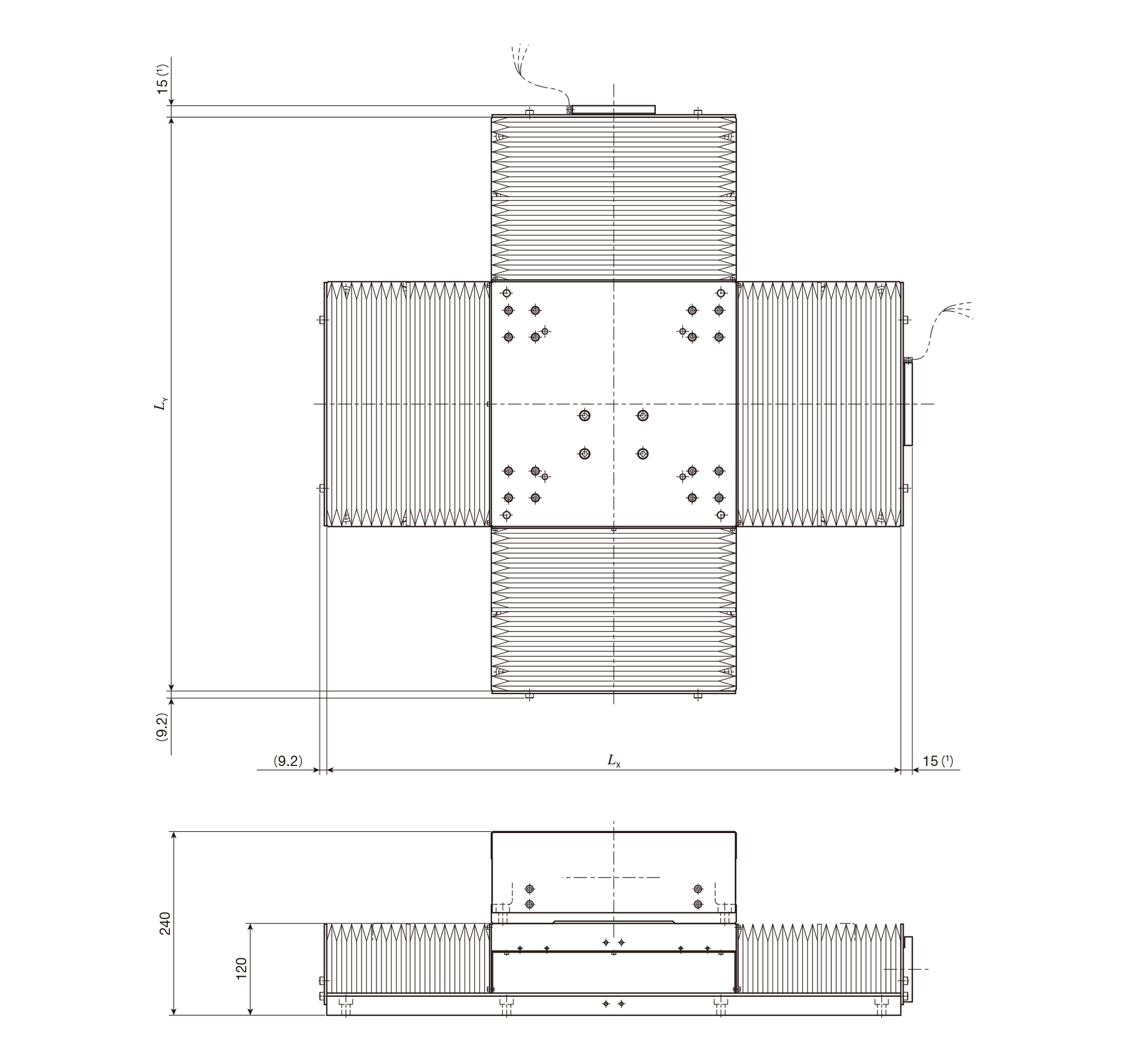

CTLH320M…/J Table with bellows

unit: mm

Identification number	Stroke length S		Overall length of bed		Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	Mass（Ref.） Kg
CTLH320M-3030/J	230	230	650	650	207
CTLH320M-4030/J	310	230	750	650	216
CTLH320M-4040/J	310	310	750	750	226
CTLH320M-5040/J	400	310	850	750	235
CTLH320M-5050/J	400	400	850	850	244

Note（1）	When selecting AT305, 26mm is applied. When selecting AT313, 20mm is applied.
Remarks	For the usage in vertical axis, the dimension of the bellows is different, so please contact IKO. For mounting dimensions, see the dimension table for TSLH320M.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LH Features

Precision Positioning Table LH (TSLH/CTLH) is a positioning table featuring high reliability, high accuracy, and high rigidity. The slide table and bed are made of cast iron, and therefore have high rigidity and superior vibration damping characteristics. IKO Linear Ways are integrated along with a precision ball screw as the drive mechanism. With the parallel arrangement of two sets of Linear Ways, this table provides stable and high running and positioning accuracy, as well as high load capacity. This series includes four sizes with table widths ranging from 120 mm to 420 mm (super large size). Two axis tables which combine single axis tables are also available in this series.
This table is most suitable for use as a high accuracy positioning mechanism with a large applied load and a relatively long stroke.
