CTLH220 Dimension｜Precision Positioning Table LH TSLH･･･M/CTLH･･･M

Dimension

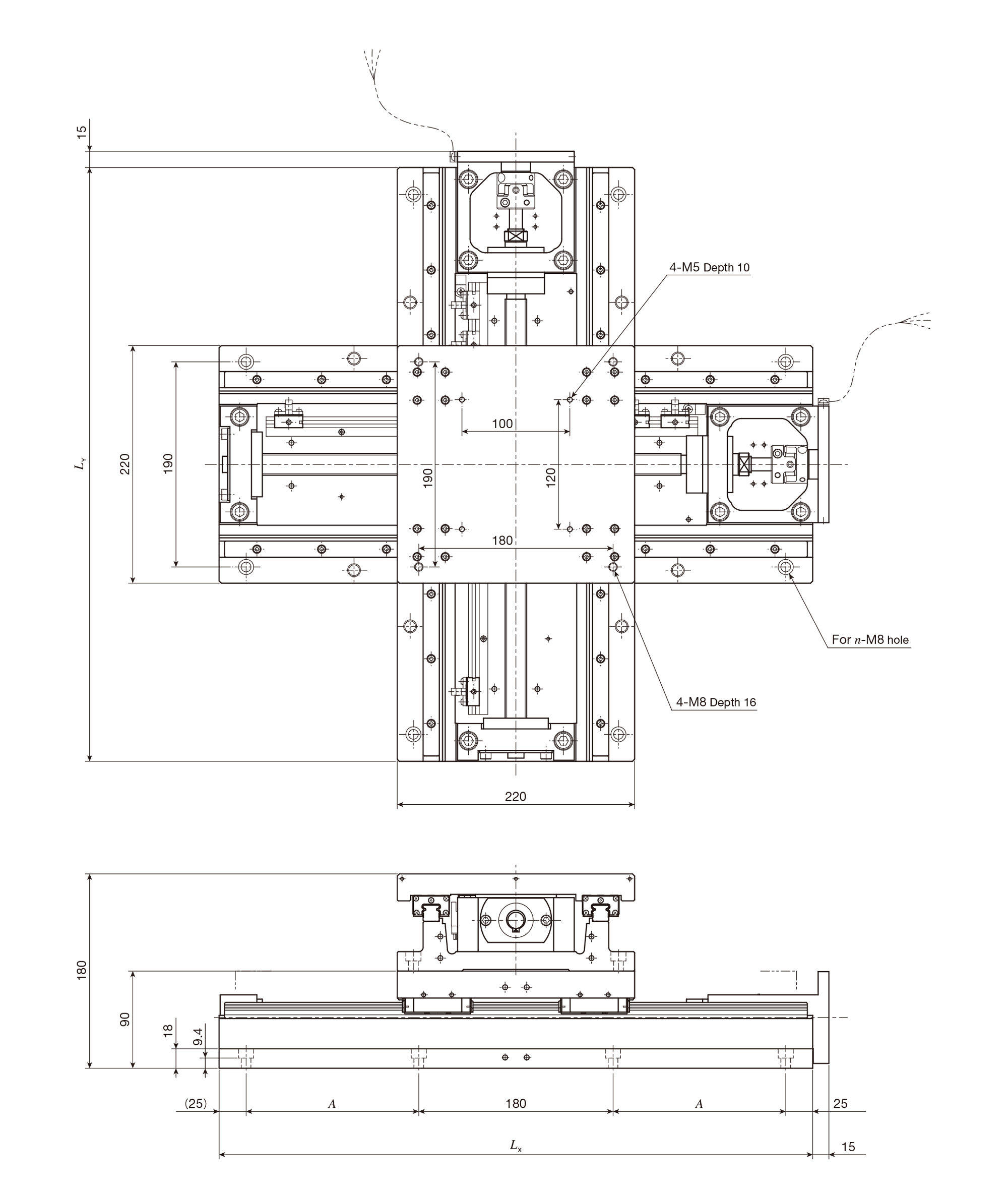

The dimensions of CTLH220M are shown below.

unit: mm

Identification number	Stroke length S		Overall length		Mounting holes of bed		Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	A（the number of holes×pitch）	n	Mass（Ref.） Kg
CTLH220M-2020	200	200	450	450	110	8	67
CTLH220M-3020	300	200	550	450	160	8	71
CTLH220M-3030	300	300	550	550	160	8	76
CTLH220M-4030	400	300	650	550	210（2×105）	12	80
CTLH220M-4040	400	400	650	650	210（2×105）	12	84

Remark:

As a combination of stroke length other than listed above and a table of different size is possible, please contact IKO.

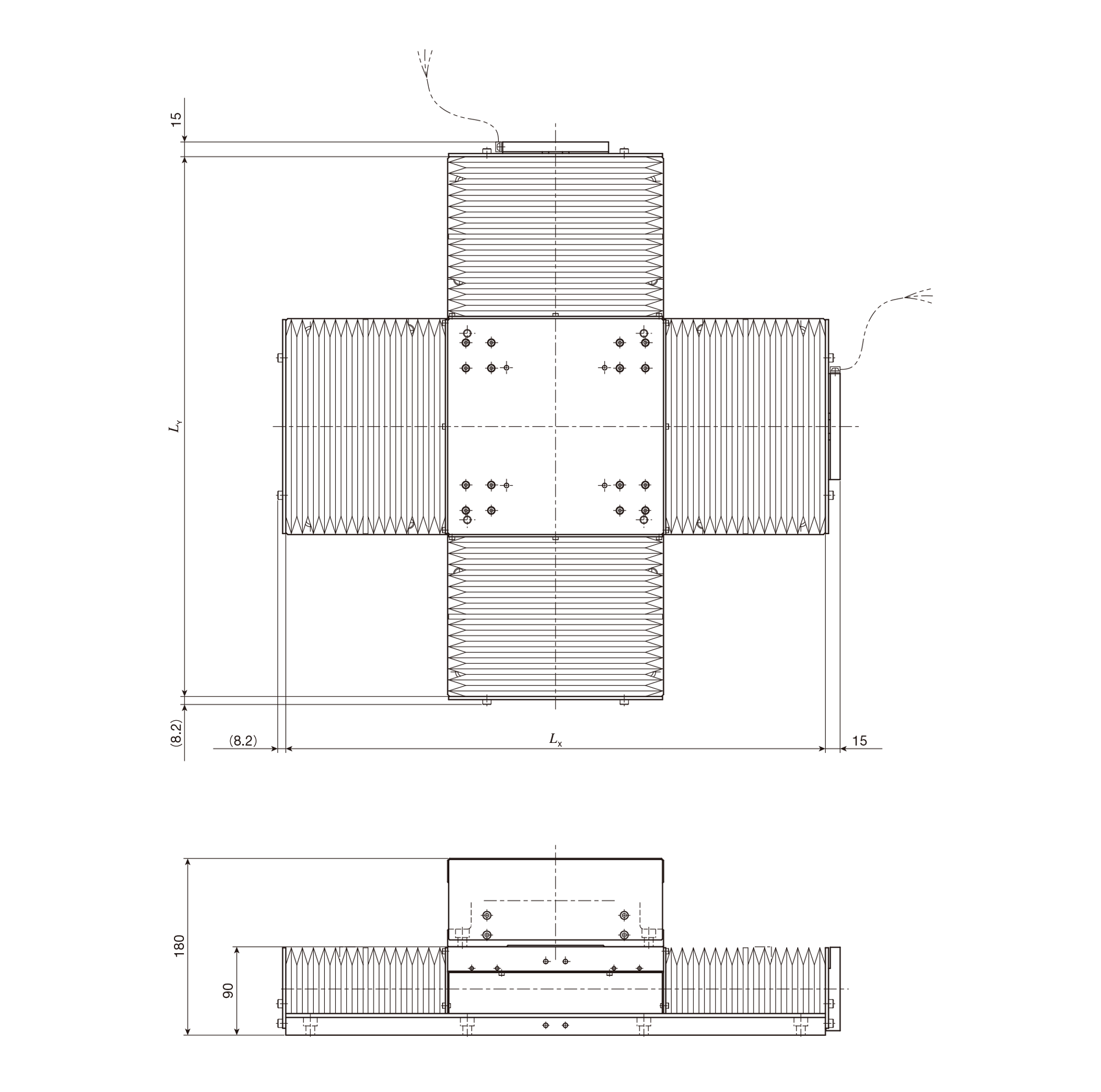

CTLH220M…/J Table with bellows

unit: mm

Identification number	Stroke length S		Overall length of bed		Mass（Ref.） Kg
Identification number	X-axis	Y-axis	LX	LY	Mass（Ref.） Kg
CTLH220M-2020/J	150	150	450	450	71
CTLH220M-3020/J	220	150	550	450	75
CTLH220M-3030/J	220	220	550	550	80
CTLH220M-4030/J	300	220	650	550	84
CTLH220M-4040/J	300	300	650	650	88

Remarks

For the usage in vertical axis, the dimension of the bellows is different, so please contact IKO.
For mounting dimensions, see the dimension table for TSLH220M.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LH Features

Precision Positioning Table LH (TSLH/CTLH) is a positioning table featuring high reliability, high accuracy, and high rigidity. The slide table and bed are made of cast iron, and therefore have high rigidity and superior vibration damping characteristics. IKO Linear Ways are integrated along with a precision ball screw as the drive mechanism. With the parallel arrangement of two sets of Linear Ways, this table provides stable and high running and positioning accuracy, as well as high load capacity. This series includes four sizes with table widths ranging from 120 mm to 420 mm (super large size). Two axis tables which combine single axis tables are also available in this series.
This table is most suitable for use as a high accuracy positioning mechanism with a large applied load and a relatively long stroke.
