TSLH120M Dimension｜Precision Positioning Table LH TSLH･･･M/CTLH･･･M

Dimension

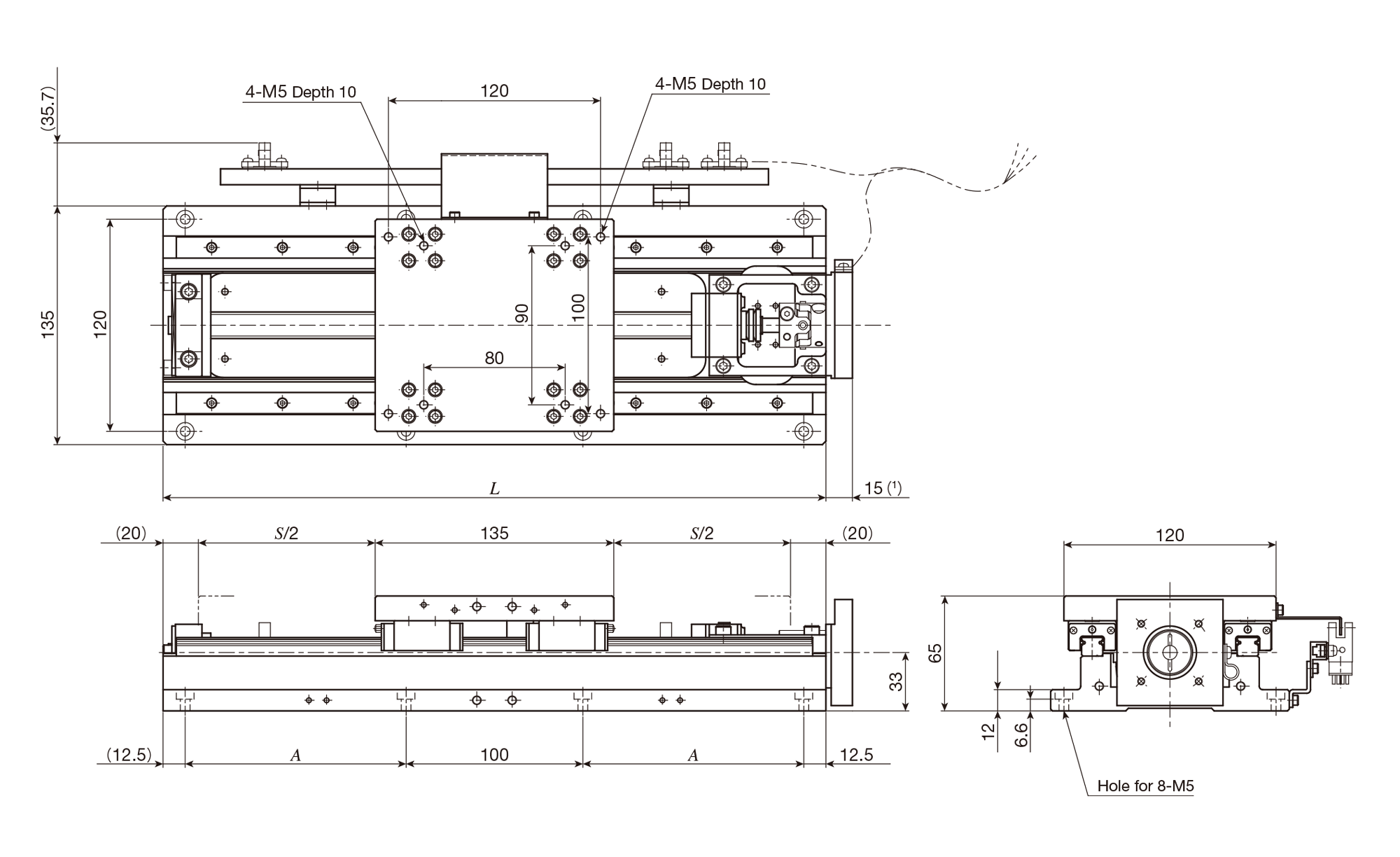

The dimensions of TSLH120M are shown below.

unit: mm

Identification number	Stroke length S	Overall length L	Mounting holes of bed A	Mass（Ref.） Kg
TSLH120M-100	100	275	75	10
TSLH120M-150	150	325	100	11
TSLH120M-200	200	375	125	12
TSLH120M-250	250	425	150	13
TSLH120M-300	300	475	175	14

Note（1）

When selecting AT302 or AT308, 21mm is applied.

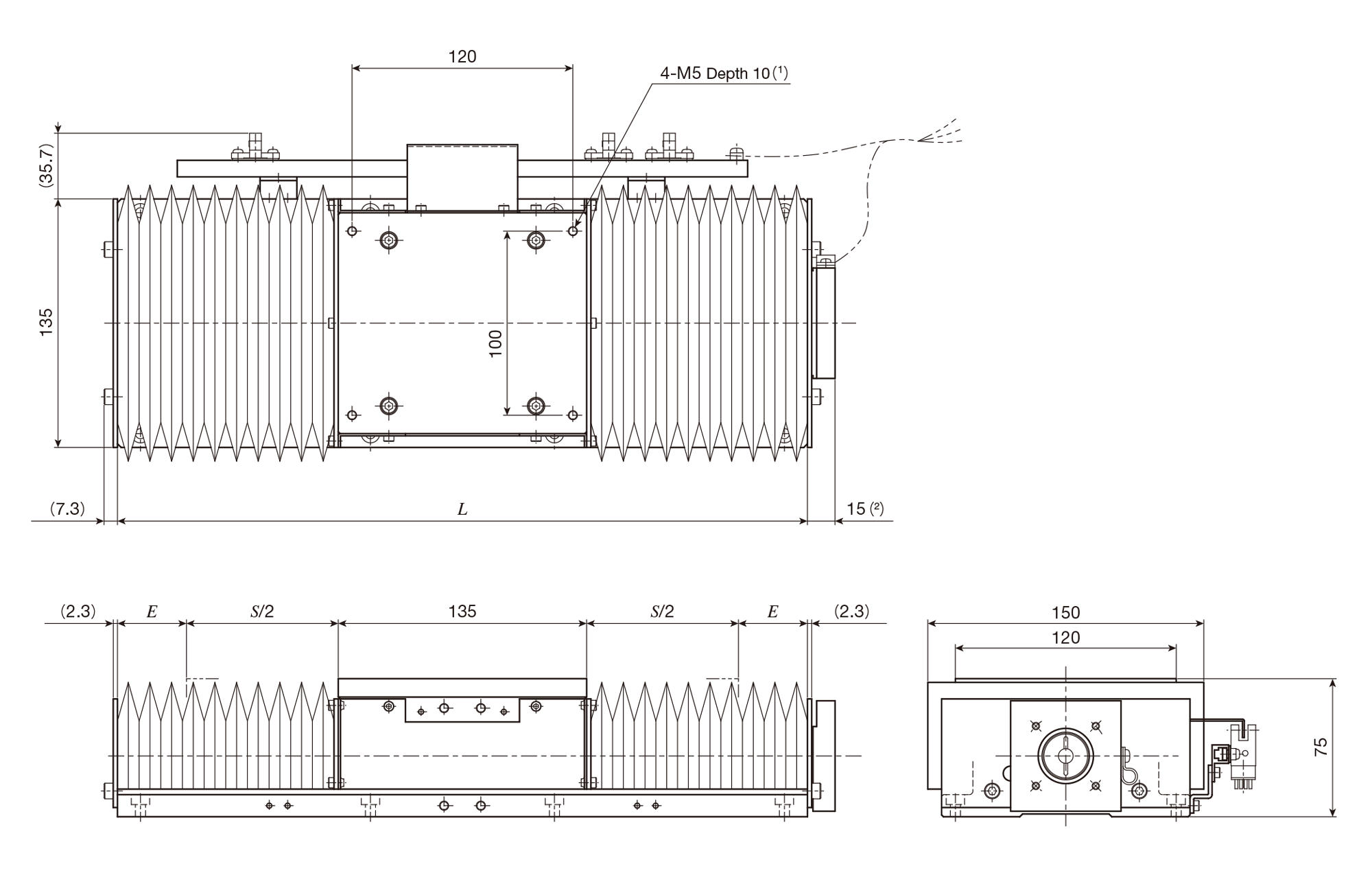

TSLH120M…/J Table with bellows

unit: mm

Identification number	Stroke length S	Overall length L	E	Mass（Ref.） Kg
TSLH120M-100/J	85	275	27.5	13
TSLH120M-150/J	125	325	32.5	14
TSLH120M-200/J	165	375	37.5	15
TSLH120M-250/J	205	425	42.5	16
TSLH120M-300/J	240	475	50.0	17

Notes（1）	Too deep insertion depth of the mounting bolt may affect the running performance of the moving table, so never insert a bolt longer than the depth of the through hole.
Notes（2）	When selecting AT302 or AT308, 21mm is applied.
Remarks	For the usage in vertical axis, the dimension of the bellows is different, so please contact IKO. For bed mounting dimensions, see the dimension table for TSLH120M.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

LH Features

Precision Positioning Table LH (TSLH/CTLH) is a positioning table featuring high reliability, high accuracy, and high rigidity. The slide table and bed are made of cast iron, and therefore have high rigidity and superior vibration damping characteristics. IKO Linear Ways are integrated along with a precision ball screw as the drive mechanism. With the parallel arrangement of two sets of Linear Ways, this table provides stable and high running and positioning accuracy, as well as high load capacity. This series includes four sizes with table widths ranging from 120 mm to 420 mm (super large size). Two axis tables which combine single axis tables are also available in this series.
This table is most suitable for use as a high accuracy positioning mechanism with a large applied load and a relatively long stroke.
