Dimension

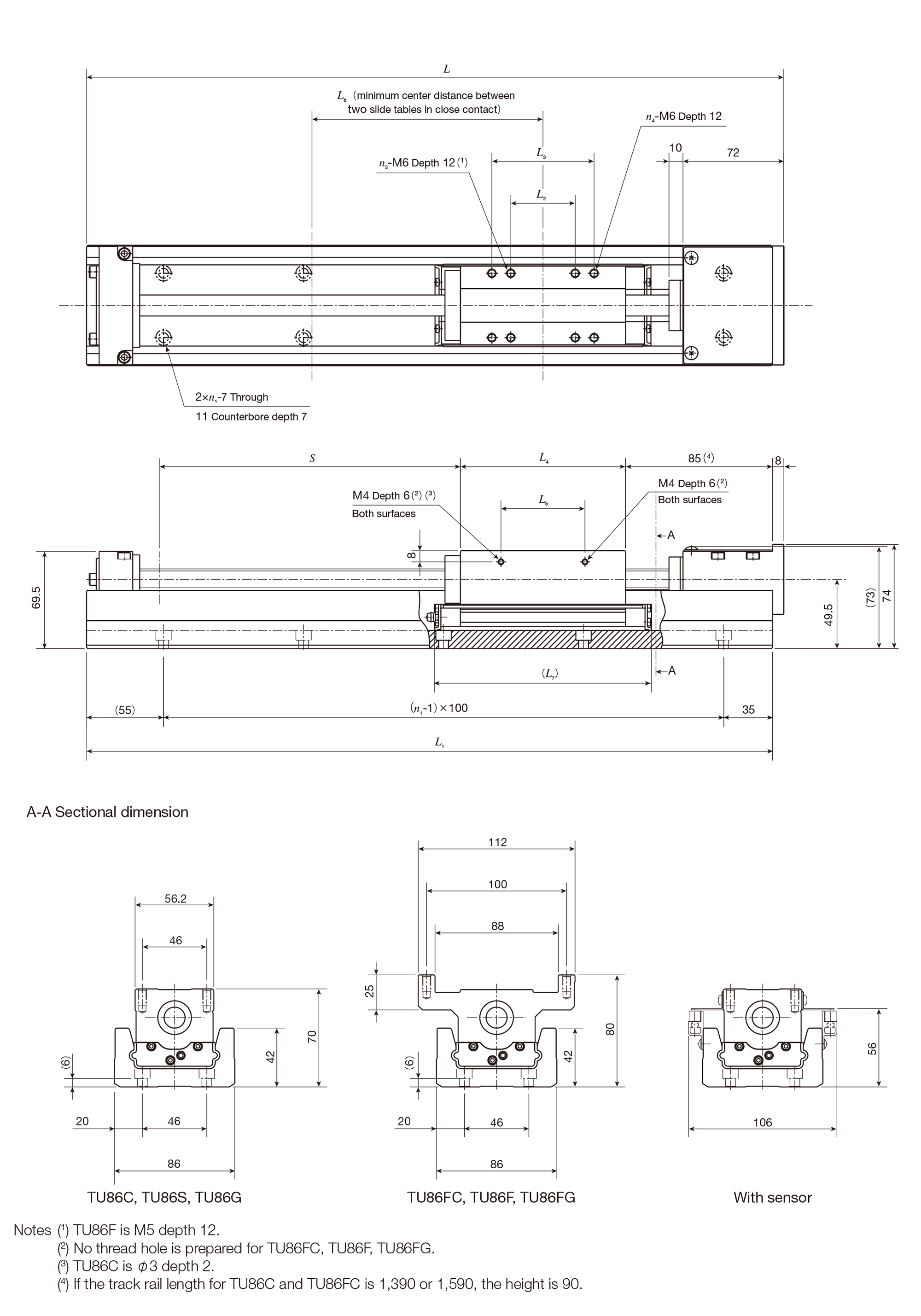

The dimensions of TU86 are shown below.

Dimensions of slide table

unit: mm

Model and size	L2	L3	L4	L5	L6	L7	n3	n4	Mass Kg
TU86C	－	－	43	30	90	80	2	－	0.7
TU86S	46	－	93	63	140	130	4	－	1.7
TU86G	46	73	118	60	165	155	4	4	2.2
TU86FC	－	－	43	－	90	80	2	－	1.1
TU86F	28	46	93	－	140	130	4	4	2.3
TU86FG	46	73	118	－	165	155	4	4	3.0

Dimensions of track rail

unit: mm

Length of track rail L1	Overall length L	n1	Stroke length S(1)			Mass(2) Kg
			TU86C	TU86S	TU86G	TU86C	TU86S	TU86G	TU86FC	TU86F	TU86FG
			TU86FC	TU86F	TU86FG	TU86C	TU86S	TU86G	TU86FC	TU86F	TU86FG
490	498	5	300(220)	250(120)	225(－)	9.9	10.9	11.4	10.3	11.5	12.2
590	598	6	400(320)	350(220)	325(170)	10.8	11.7	12.2	11.2	12.4	13.0
690	698	7	500(420)	450(320)	425(270)	12.3	13.2	13.8	12.7	13.9	14.6
790	798	8	600(520)	550(420)	525(370)	13.8	14.7	15.3	14.2	15.4	16.1
890	898	9	700(620)	650(520)	625(470)	15.0	15.9	16.4	15.4	16.6	17.2
990	998	10	800(720)	750(620)	725(570)	16.5	17.4	17.9	16.9	18.1	18.7
1090	1098	11	900(820)	850(720)	825(670)	18.0	18.9	19.4	18.4	19.6	20.2
1190	1198	12	1000(920)	950(820)	925(770)	19.5	20.4	21.0	19.9	21.1	21.8
1390	1398	14	1200(1120)	1150(1020)	1125(970)	24.5	25.4	25.9	24.9	26.0	26.7
1590	1598	16	1400(1320)	1350(1220)	1325(1170)	27.8	28.7	29.2	28.2	29.3	30.0

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

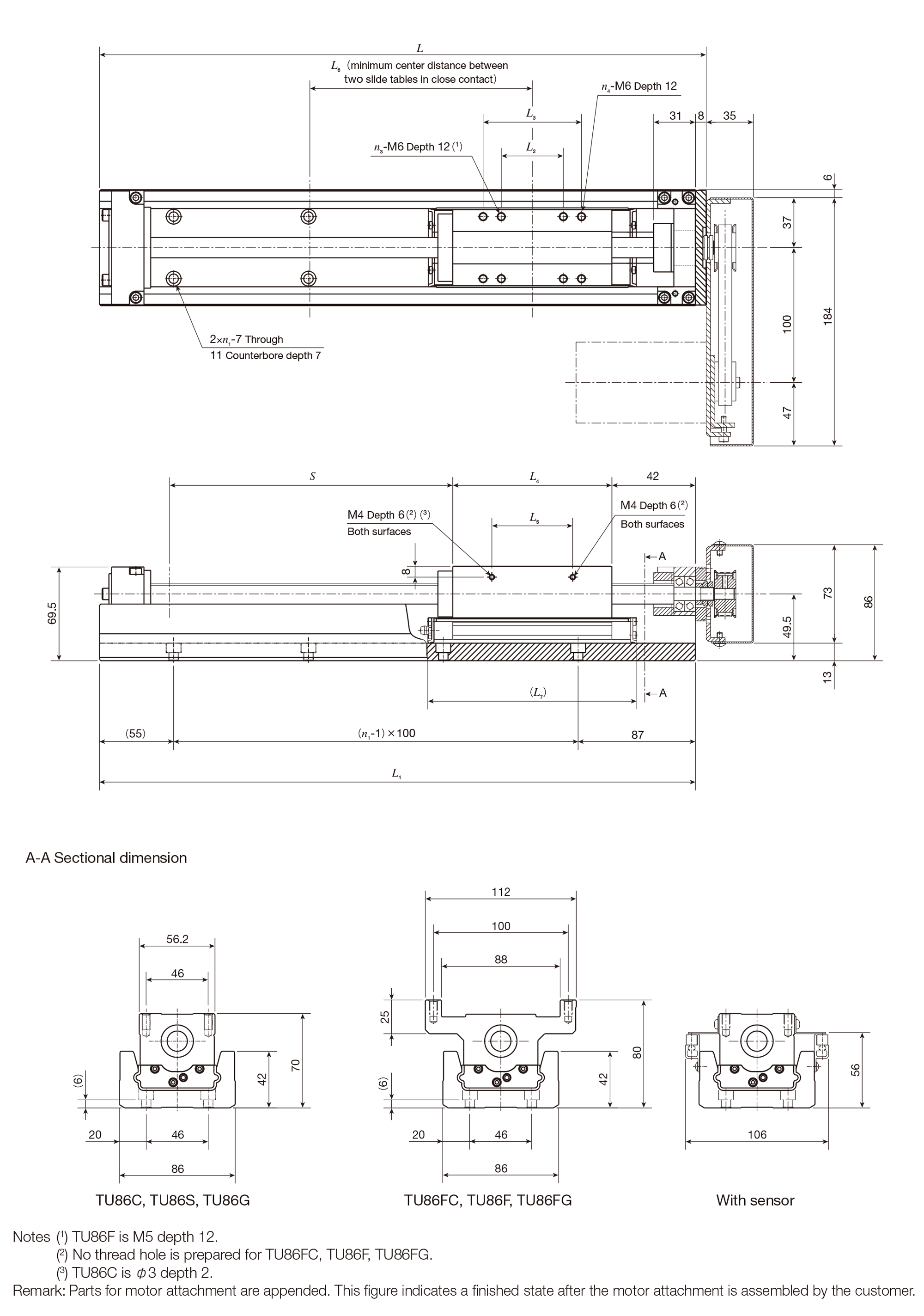

Motor folding back specification

Dimensions of slide table

unit: mm

Model and size	L2	L3	L4	L5	L6	L7	n3	n4	Mass Kg
TU86C	－	－	43	30	90	80	2	－	0.7
TU86S	46	－	93	63	140	130	4	－	1.7
TU86G	46	73	118	60	165	155	4	4	2.2
TU86FC	－	－	43	－	90	80	2	－	1.1
TU86F	28	46	93	－	140	130	4	4	2.3
TU86FG	46	73	118	－	165	155	4	4	3.0

Dimensions of track rail

unit: mm

Length of track rail L1	Overall length L	n1	Stroke length S(1)			Mass(2) Kg
			TU86C	TU86S	TU86G	TU86C	TU86S	TU86G	TU86FC	TU86F	TU86FG
			TU86FC	TU86F	TU86FG	TU86C	TU86S	TU86G	TU86FC	TU86F	TU86FG
442	450	4	295(215)	245(115)	220(－)	10.3	11.3	11.8	10.7	11.9	12.6
542	550	5	395(315)	345(215)	320(165)	11.2	12.1	12.6	11.6	12.8	13.4
642	650	6	495(415)	445(315)	420(265)	12.7	13.6	14.2	13.1	14.3	15.0
742	750	7	595(515)	545(415)	520(365)	14.2	15.1	15.7	14.6	15.8	16.5
842	850	8	695(615)	645(515)	620(465)	15.4	16.3	16.8	15.8	17.0	17.6
942	950	9	795(715)	745(615)	720(565)	16.9	17.8	18.3	17.3	18.5	19.1
1042	1050	10	895(815)	845(715)	820(665)	18.4	19.3	19.8	18.8	20.0	20.6
1142	1150	11	995(915)	945(815)	920(765)	19.9	20.8	21.4	20.3	21.5	22.2

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

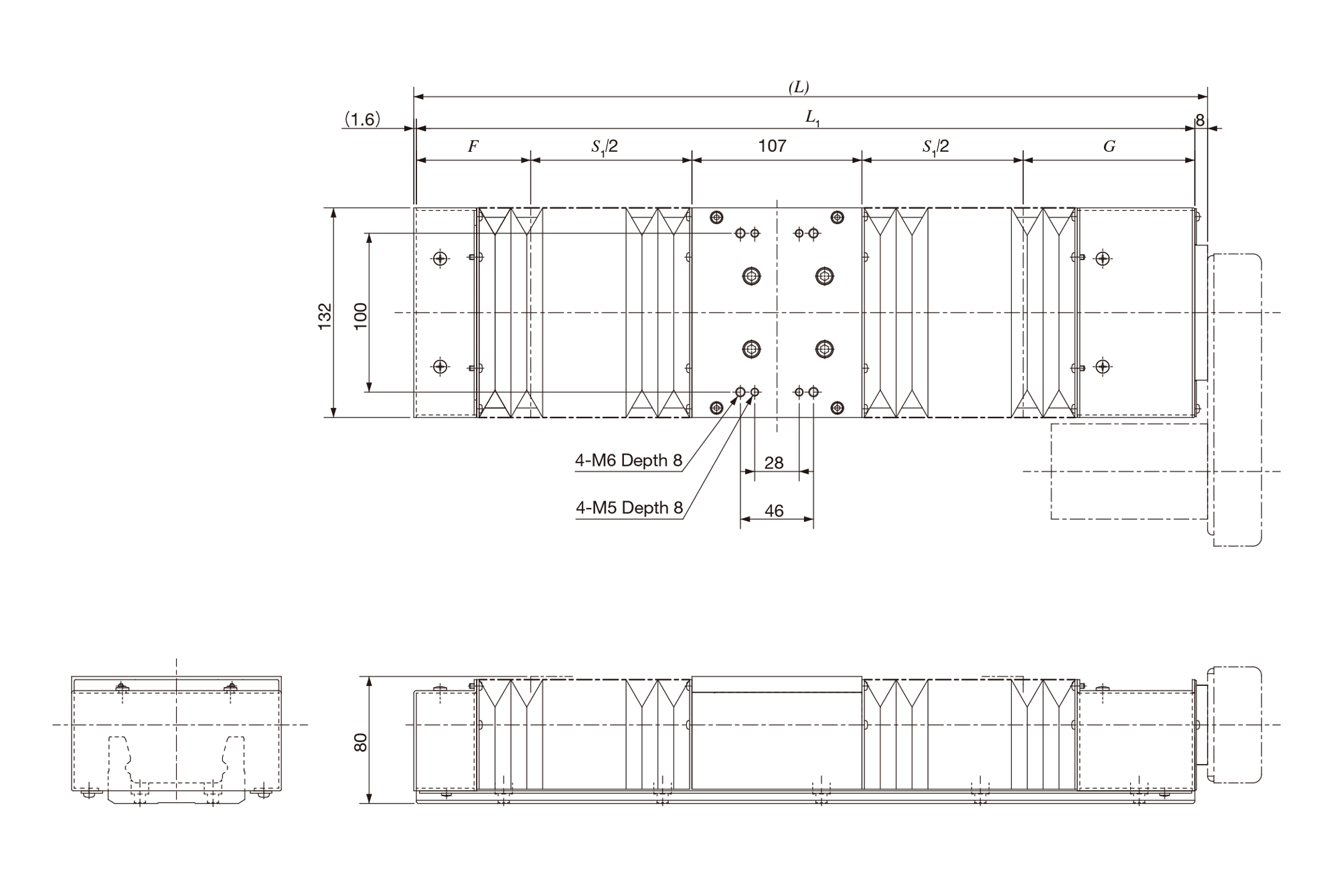

Table with bellows

unit: mm

Length of track rail L1	Overall length (L)	Limit stroke length (1) S1	Stroke length(2) S	F	G
490(442)	499.6(451.6)	203(198)	195(190)	72(72)	108(65)
590(542)	599.6(551.6)	275(270)	265(260)	86(86)	122(79)
690(642)	699.6(651.6)	349(344)	340(335)	99(99)	135(92)
790(742)	799.6(751.6)	421(416)	410(405)	113(113)	149(106)
890(842)	899.6(851.6)	521(516)	510(505)	113(113)	149(106)
990(942)	999.6(951.6)	593(588)	580(575)	127(127)	163(120)
1090(1042)	1099.6(1051.6)	667(662)	655(650)	140(140)	176(133)
1190(1142)	1199.6(1151.6)	739(734)	730(725)	154(154)	190(147)

Notes（1）	The value indicates the limit value of stroke with which the slide table can move.
（2）	The value indicates the allowable stroke length when limit sensors are mounted.
Remarks	The values in （） are applied to table with bellows of motor folding back specification. For the track rail mounting dimensions, please see the dimension table for TU86. Applicable to tables with C-Lube.

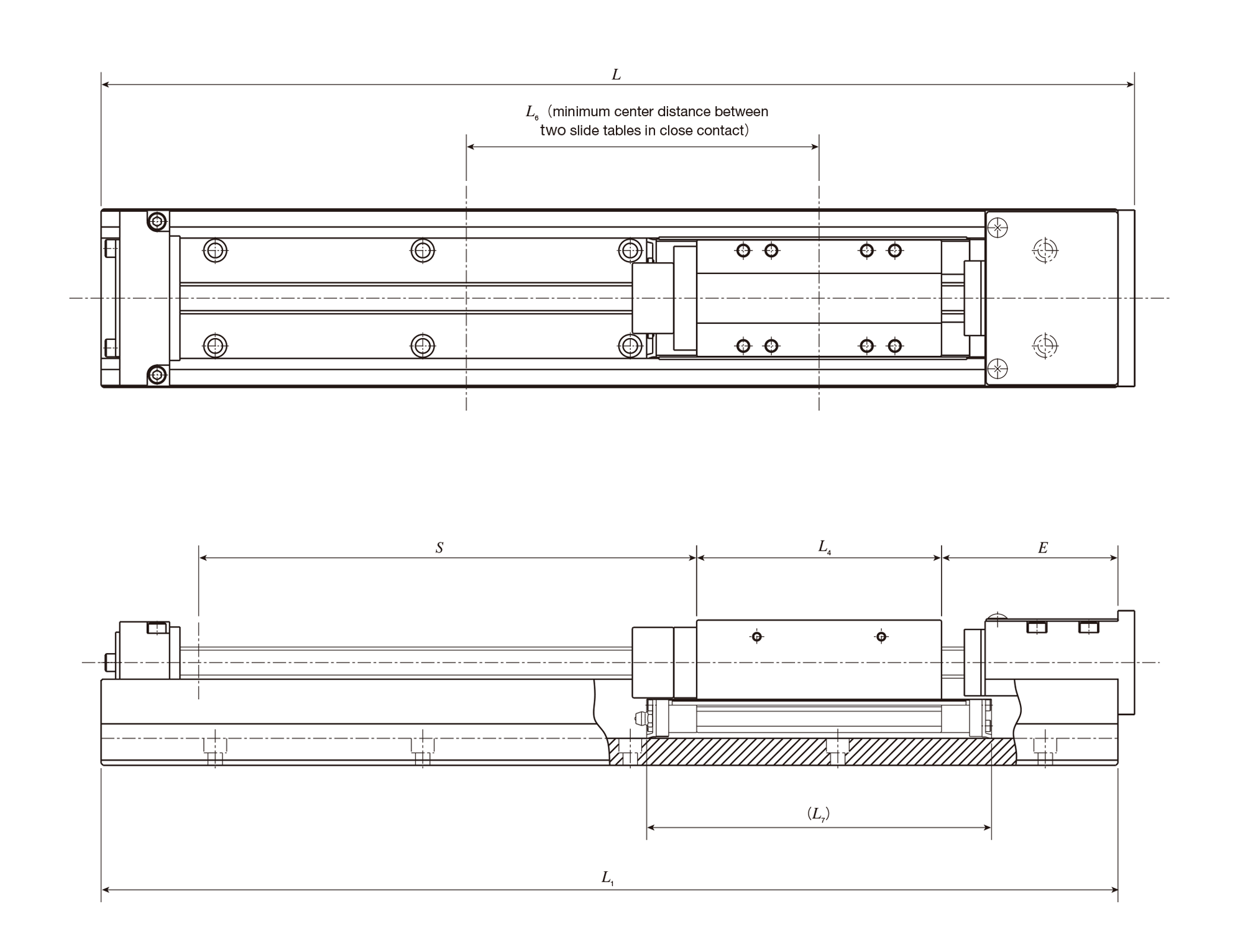

Table with C-Lube

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length(1) S	E	L4	L6	L7
TU86C TU86FC	490	498	260(190)	110	43	95	92
	590	598	360(290)
	690	698	460(390)
	790	798	560(490)
	890	898	660(590)
	990	998	760(690)
	1090	1098	860(790)
	1190	1198	960(890)
TU86S TU86F	490	498	230(120)	85	93	145	142
	590	598	330(220)
	690	698	430(320)
	790	798	530(420)
	890	898	630(520)
	990	998	730(620)
	1090	1098	830(720)
	1190	1198	930(820)
TU86G TU86FG	490	498	210(－)	85	118	170	167
	590	598	310(170)
	690	698	410(270)
	790	798	510(370)
	890	898	610(470)
	990	998	710(570)
	1090	1098	810(670)
	1190	1198	910(770)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remark:	For dimensions of the slide table and track rail, please see the dimension table for each size.

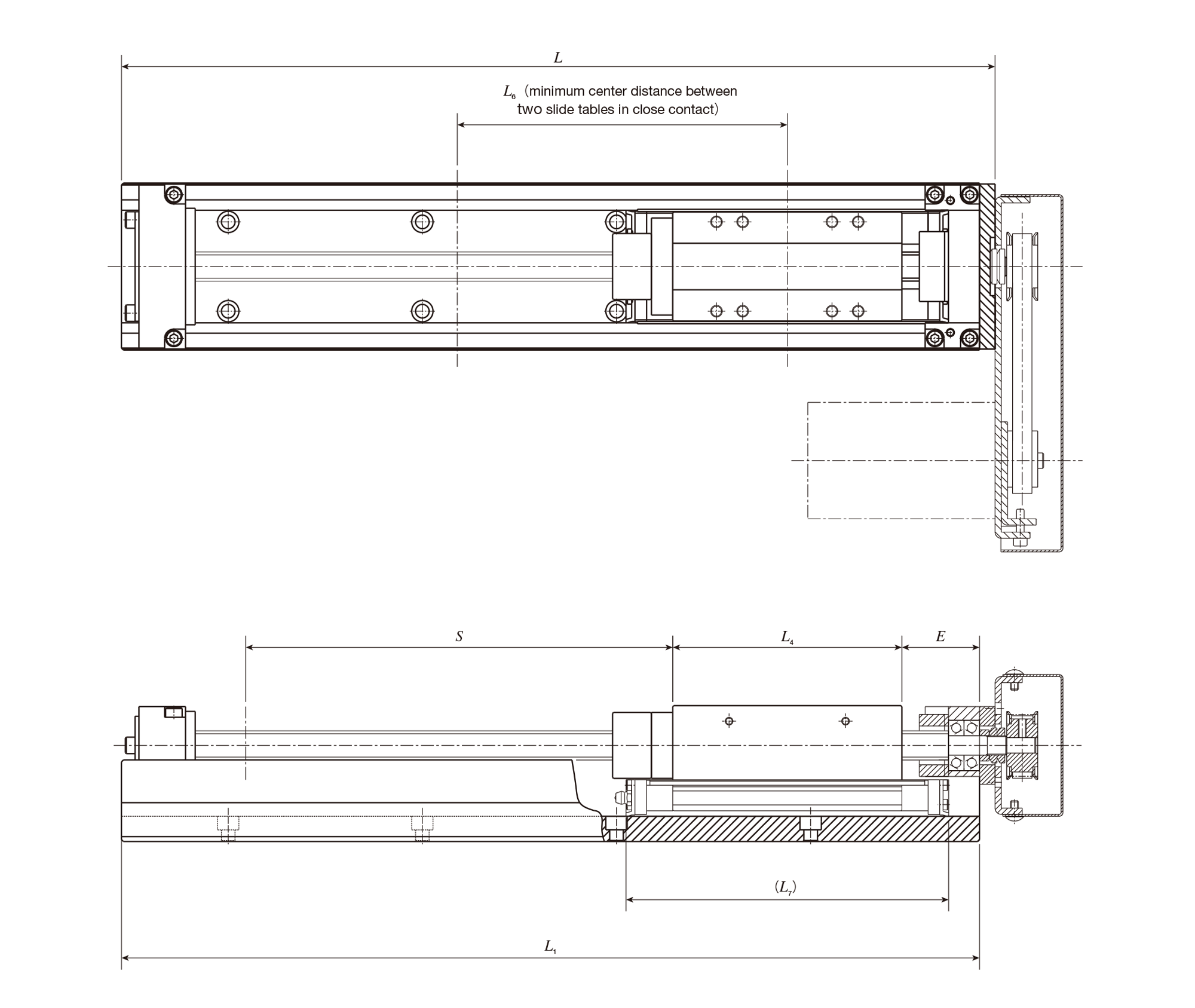

Table with C-Lube (Motor folding back specification)

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length(1) S	E	L4	L6	L7
TU86C TU86FC	442	450	250(190)	70	43	95	92
	542	550	350(290)
	642	650	450(390)
	742	750	550(490)
	842	850	650(590)
	942	950	750(690)
	1042	1050	850(790)
	1142	1150	950(890)
TU86S TU86F	442	450	230(120)	40	93	145	142
	542	550	330(220)
	642	650	430(320)
	742	750	530(420)
	842	850	630(520)
	942	950	730(620)
	1042	1050	830(720)
	1142	1150	930(820)
TU86G TU86FG	442	450	210(－)	40	118	170	167
	542	550	310(170)
	642	650	410(270)
	742	750	510(370)
	842	850	610(470)
	942	950	710(570)
	1042	1050	810(670)
	1142	1150	910(770)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remarks	Parts for motor attachment are appended. This figure indicates a finished state after the motor attachment is assembled by the customer. For dimensions of the slide table and track rail, please see the dimension table for each size.

Without ball screw specification

unit: mm

Model and size	Specification of track rail	Length of track rail L1	Without bridge cover		With bridge cover
Model and size	Specification of track rail	Length of track rail L1	F1	G1	F1	G1
TU86	Without motor folding back	490	32	19	35	29
		590
		690
		790
		890
		990
		1090
		1190
		1390
		1590	32	19	－	－
	Motor folding back specification	442	32	28	35	29
		542
		642
		742
		842
		942
		1042
		1142

Remark:

For dimensions of the slide table and track rail, please see the dimension table for each size.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TU Features

TU Series is a slim, low-profile positioning table that consists of a U-shaped track rail and a slide table. The slide table assembled inside the U-shaped track rail is an integral part of a linear motion rolling guide mechanism, in which two rows of large diameter steel balls are arranged in four point contact with raceways. Owing to this design, stable, high accuracy motion and high rigidity are obtained in operations even when loads are fluctuating, varying in direction and magnitude, or are complex. Also, by adopting a U-shaped track rail, the rigidity of track rail under moment load and torsion is greatly improved. TU Series includes six sizes with a track rail widths of between 25 mm to 130 mm. For each of them, various slide table lengths can be selected. Also, ball screw types and leads, motor types, and sensor installations, etc. can be selected to obtain an optimum positioning table suitable for each application.
