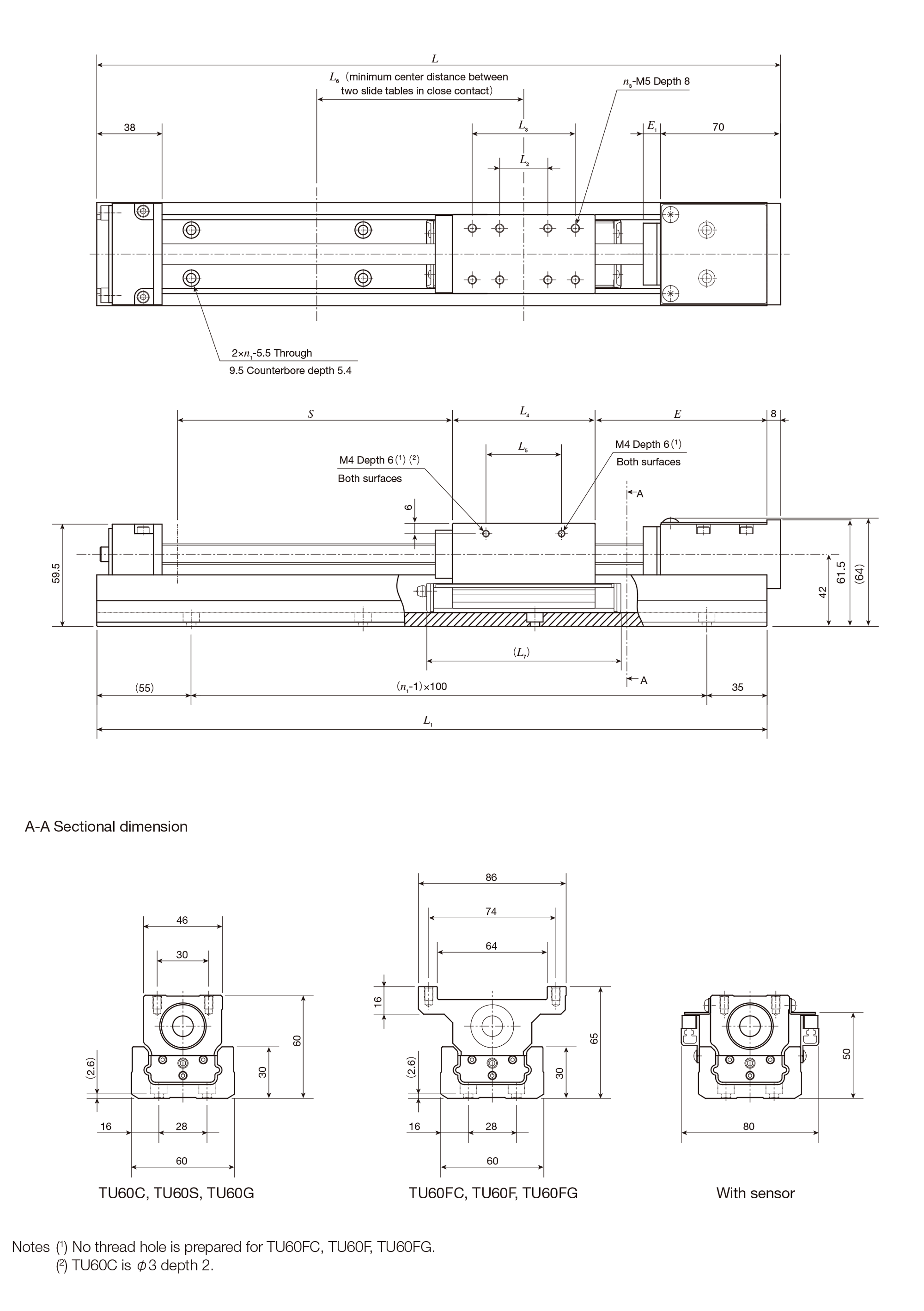

Dimension

The dimensions of TU60 are shown below.

＜Ball screw lead 5mm, 10mm＞

Dimensions of slide table

unit: mm

Model
and size		 L2 L3 L4 L5 L6 L7 n3 E E1 Mass
Kg
TU60C － － 27.4 17.4 65 58 2 90 15 0.3
TU60S 28 － 52.4 18 90 83 4 80 10 0.6
TU60G 28 60 83 44 120.5 113 8 80 10 1.0
TU60FC － － 27.4 － 65 58 2 90 15 0.4
TU60F 28 － 52.4 － 90 83 4 80 10 0.8
TU60FG 28 60 83 － 120.5 113 8 80 10 1.3

Dimensions of track rail

unit: mm

Length
of track rail
L1		 Overall
length
L		 n1 Stroke length S(1) Mass (2) Kg
TU60C TU60S TU60G TU60C TU60S TU60G TU60FC TU60F TU60FG
TU60FC TU60F TU60FG
290 298 3 110(50) 100(－) 70(－) 3.0 3.3 3.6 3.1 3.5 3.9
390 398 4 210(150) 200(120) 170(60) 3.7 4.0 4.4 3.8 4.2 4.7
490 498 5 310(250) 300(220) 270(160) 4.5 4.8 5.1 4.6 4.9 5.4
590 598 6 410(350) 400(320) 370(260) 5.2 5.5 5.8 5.3 5.7 6.1
690 698 7 510(450) 500(420) 470(360) 6.0 6.2 6.6 6.1 6.4 6.9
790 798 8 610(550) 600(520) 570(460) 6.7 7.0 7.3 6.8 7.2 7.6
990 998 10 810(750) 800(720) 770(660) 8.3 8.6 9.0 8.4 8.7 9.1
1190 1198 12 1010(950) 1000(920) 970(860) 9.8 10.1 10.5 9.9 10.2 10.6
Notes（1） The value indicates the allowable stroke length when limit sensors are mounted. The value in （ ） represents dimension for two slide tables in close contact.
    （2） The value shows the mass of the entire table with one slide table.
＜Ball screw lead 20mm＞

Dimensions of slide table

unit: mm

Model
and size		 L2 L3 L4 L5 L6 L7 n3 E E1 Mass
Kg
TU60C － － 27.4 17.4 65 58 2 110 15 0.3
TU60S 28 － 52.4 18 90 83 4 85 15 0.6
TU60G 28 60 83 44 120.5 113 8 85 15 1.0
TU60FC － － 27.4 － 65 58 2 110 15 0.4
TU60F 28 － 52.4 － 90 83 4 85 15 0.8
TU60FG 28 60 83 － 120.5 113 8 85 15 1.3

Dimensions of track rail

unit: mm

Length
of track rail
L1		 Overall
length
L		 n1 Stroke length S(1) Mass (2) Kg
TU60C TU60S TU60G TU60C TU60S TU60G TU60FC TU60F TU60FG
TU60FC TU60F TU60FG
290 298 3 95(－) 95(－) 65(－) 3.1 3.4 3.7 3.2 3.6 4.0
390 398 4 195(135) 195(115) 165(－) 3.8 4.1 4.5 3.9 4.3 4.8
490 498 5 295(235) 295(215) 265(155) 4.6 4.9 5.2 4.7 5.0 5.5
590 598 6 395(335) 395(315) 365(255) 5.3 5.6 5.9 5.4 5.8 6.2
690 698 7 495(435) 495(415) 465(355) 6.1 6.3 6.7 6.2 6.5 7.0
790 798 8 595(535) 595(515) 565(455) 6.8 7.1 7.4 6.9 7.3 7.7
Notes（1） The value indicates the allowable stroke length when limit sensors are mounted. The value in （ ） represents dimension for two slide tables in close contact.
    （2） The value shows the mass of the entire table with one slide table.

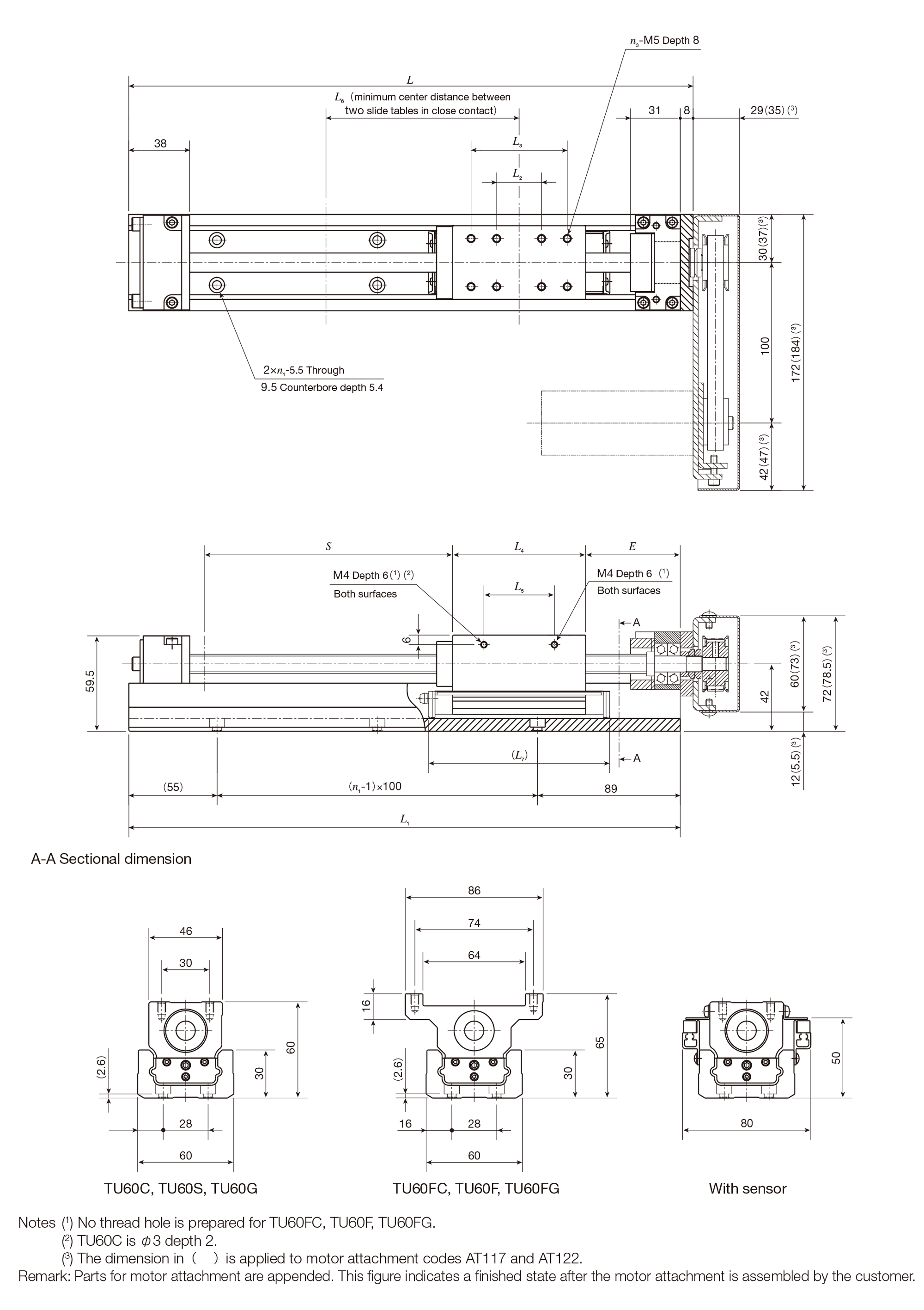

Motor folding back specification

＜Ball screw lead 5mm, 10mm＞

Dimensions of slide table

unit: mm

Model
and size		 L2 L3 L4 L5 L6 L7 n3 E Mass
Kg
TU60C － － 27.4 17.4 65 58 2 44 0.3
TU60S 28 － 52.4 18 90 83 4 39 0.6
TU60G 28 60 83 44 120.5 113 8 39 1.0
TU60FC － － 27.4 － 65 58 2 44 0.4
TU60F 28 － 52.4 － 90 83 4 39 0.8
TU60FG 28 60 83 － 120.5 113 8 39 1.3

Dimensions of track rail

unit: mm

Length
of track rail
L1		 Overall
length
L		 n1 Stroke length S(1) Mass (2) Kg
TU60C TU50S TU60G TU60C TU60S TU60G TU60FC TU60F TU60FG
TU50FC TU50F TU50FG
224 252 2 110(50) 95(－) －(－) 3.6 3.9 － 3.7 4.1 －
344 352 3 210(150) 195(115) 165(－) 4.3 4.6 5.0 4.4 4.8 5.3
444 452 4 310(250) 295(215) 265(155) 5.1 5.4 5.7 5.2 5.5 6.0
544 552 5 410(350) 395(315) 365(255) 5.8 6.1 6.4 5.9 6.3 6.7
644 652 6 510(450) 495(415) 465(355) 6.6 6.8 7.2 6.7 7.0 7.5
744 752 7 610(550) 595(515) 565(455) 7.5 7.6 7.9 7.6 7.8 8.2
Notes（1） The value indicates the allowable stroke length when limit sensors are mounted. The value in （ ） represents dimension for two slide tables in close contact.
    （2） The value shows the mass of the entire table with one slide table.
＜Ball screw lead 20mm＞

Dimensions of slide table

unit: mm

Model
and size		 L2 L3 L4 L5 L6 L7 n3 E Mass
Kg
TU60C － － 27.4 17.4 65 58 2 64 0.3
TU60S 28 － 52.4 18 90 83 4 39 0.6
TU60G 28 60 83 44 120.5 113 8 39 1.0
TU60FC － － 27.4 － 65 58 2 64 0.4
TU60F 28 － 52.4 － 90 83 4 39 0.8
TU60FG 28 60 83 － 120.5 113 8 39 1.3

Dimensions of track rail

unit: mm

Length
of track rail
L1		 Overall
length
L		 n1 Stroke length S(1) Mass (2) Kg
TU60C TU60S TU60G TU60C TU60S TU60G TU60FC TU60F TU60FG
TU60FC TU60F TU60FG
244 252 2 95(－) 95(－) －(－) 3.7 4.0 － 3.8 4.2 －
344 352 3 195(135) 195(115) 165(－) 4.4 4.7 5.1 4.5 4.9 5.4
444 452 4 295(235) 295(215) 265(155) 5.2 5.5 5.8 5.3 5.6 6.1
544 552 5 395(335) 395(315) 365(255) 5.9 6.2 6.5 6.0 6.4 6.8
644 652 6 495(435) 495(415) 465(355) 6.7 6.9 7.3 6.8 7.1 7.6
744 752 7 595(535) 595(515) 565(455) 7.6 7.7 8.0 7.7 7.9 8.3
Notes（1） The value indicates the allowable stroke length when limit sensors are mounted. The value in （ ） represents dimension for two slide tables in close contact.
    （2） The value shows the mass of the entire table with one slide table.

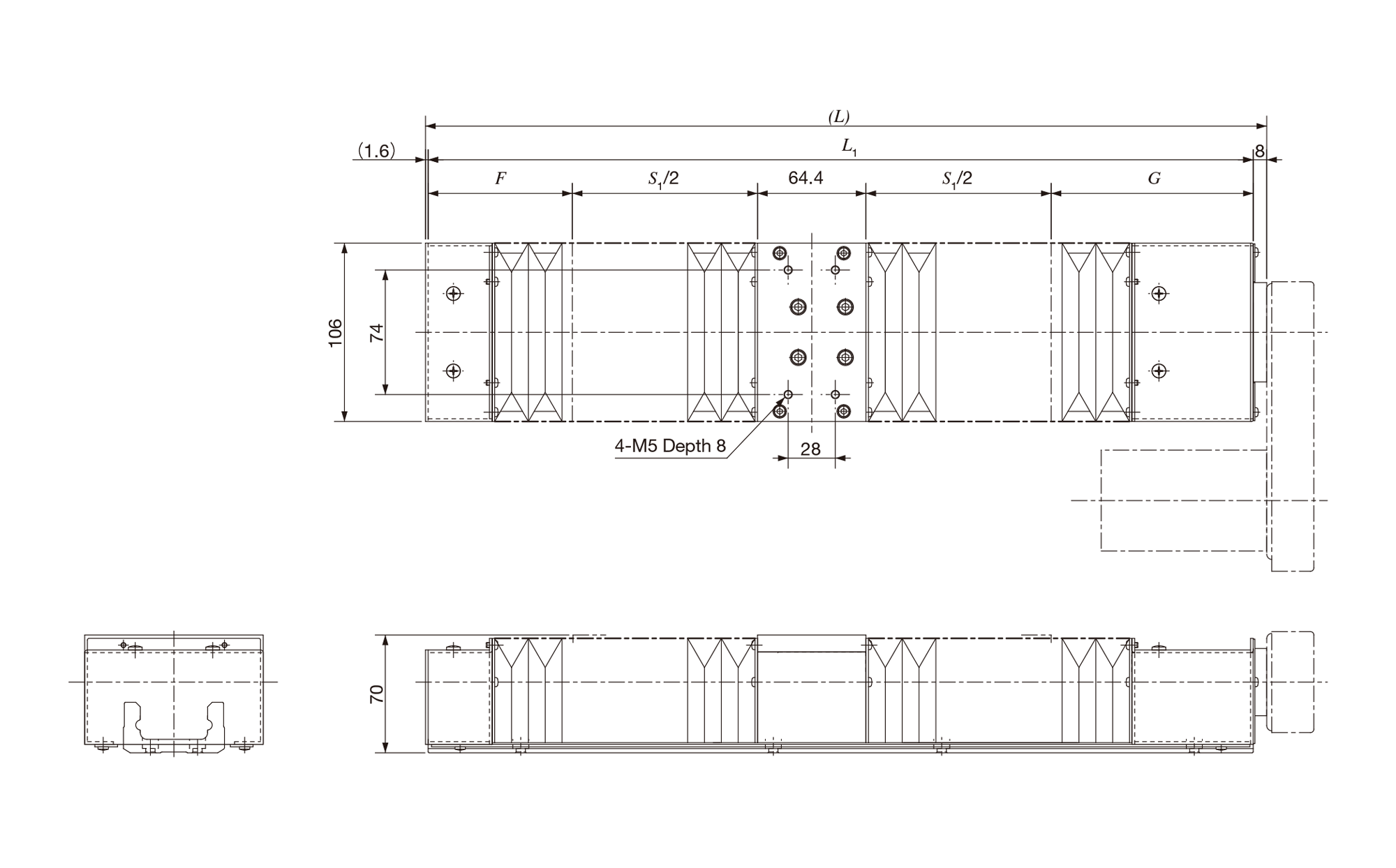

Table with bellows

unit: mm

Length of track rail
L1		 Overall
length
(L)		 Limit stroke length(1)
S1		 Stroke length(2)
S		 F G
290(244) 299.6(253.6) 73.6(68.6) 65(60) 59(59) 93(52)
390(344) 399.6(353.6) 147.6(142.6) 140(135) 72(72) 106(65)
490(444) 499.6(453.6) 219.6(214.6) 210(205) 86(86) 120(79)
590(544) 599.6(553.6) 293.6(288.6) 285(280) 99(99) 133(92)
690(644) 699.6(653.6) 393.6(388.6) 380(375) 99(99) 133(92)
790(744) 799.6(753.6) 465.6(460.6) 455(450) 113(113) 147(106)
Notes（1） The value indicates the limit value of stroke with which the slide table can move.
    （2） The value indicates the allowable stroke length when limit sensors are mounted.
Remarks
  1. The values in （ ） are applied to table with bellows of motor folding back specification.
  2. For the track rail mounting dimensions, please see the dimension table for TU60.
  3. Applicable to tables with C-Lube.

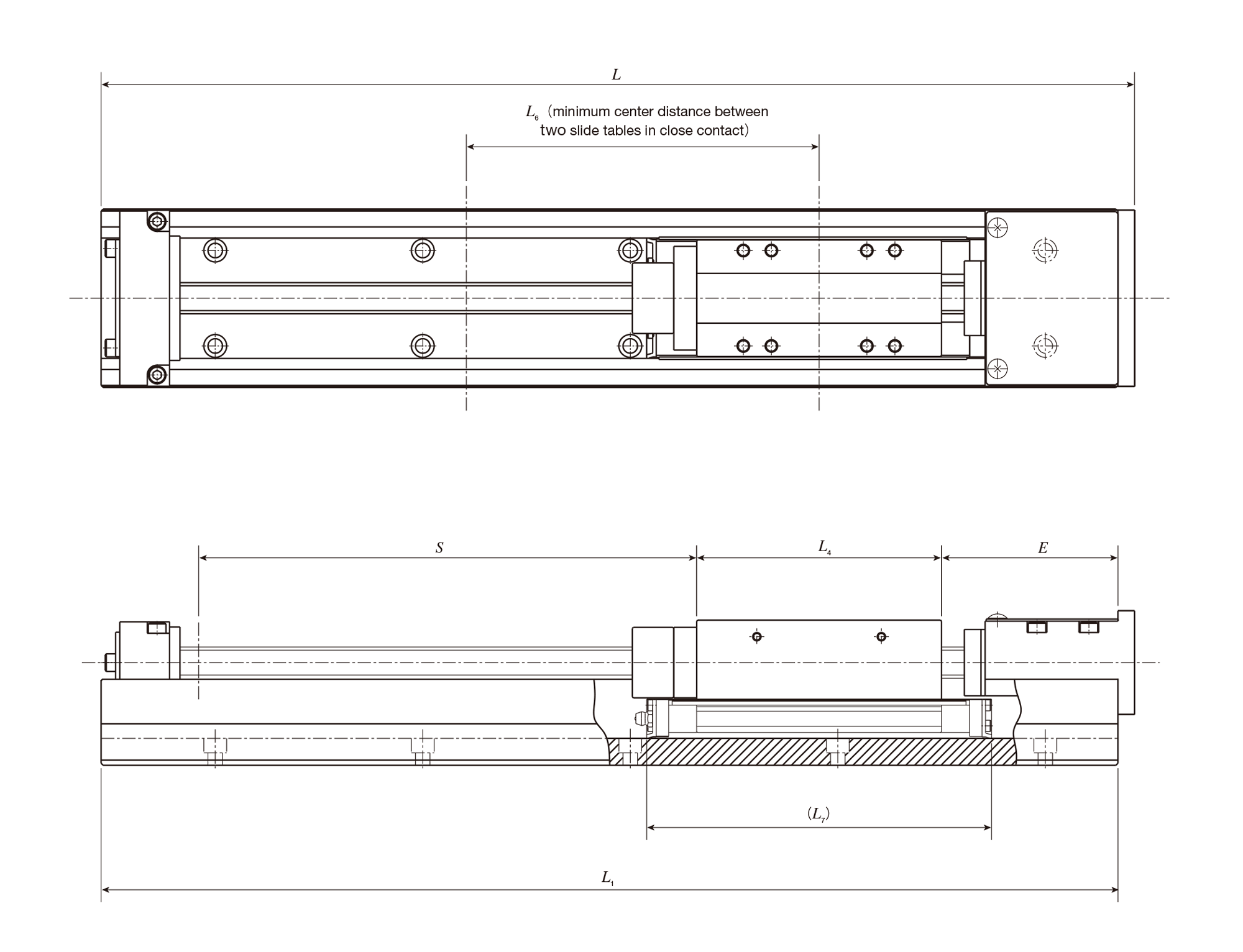

Table with C-Lube

unit: mm

Model
and size		 Length
of track rail
L1		 Overall
length
L		 Stroke length(1)S E L4 L6 L7
Lead 5mm
Lead 10mm		 Lead 20mm Lead 5mm
Lead 10mm		 Lead 20mm
TU60C
TU60FC		 290 298 90(－) 70(－) 100 120 27.4 75 70
390 398 190(140) 170(120)
490 498 290(240) 270(220)
590 598 390(340) 370(320)
690 698 490(440) 470(420)
790 798 590(540) 570(520)
TU60S
TU60F		 290 298 90(－) 70(－) 80 95 52.4 100 95
390 398 190(110) 170(100)
490 498 290(210) 270(200)
590 598 390(310) 370(300)
690 698 490(410) 470(400)
790 798 590(510) 570(500)
TU60G
TU60FG		 290 298 －(－) －(－) 80 85 83 130 125
390 398 160(－) 155(－)
490 498 260(150) 255(150)
590 598 360(250) 355(250)
690 698 460(350) 455(350)
790 798 560(450) 555(450)
Note（1） The value indicates the allowable stroke length when limit sensors are mounted. The value in（ ） represents dimension for two slide tables in close contact.
Remark: For dimensions of the slide table and track rail, please see the dimension table for each size.

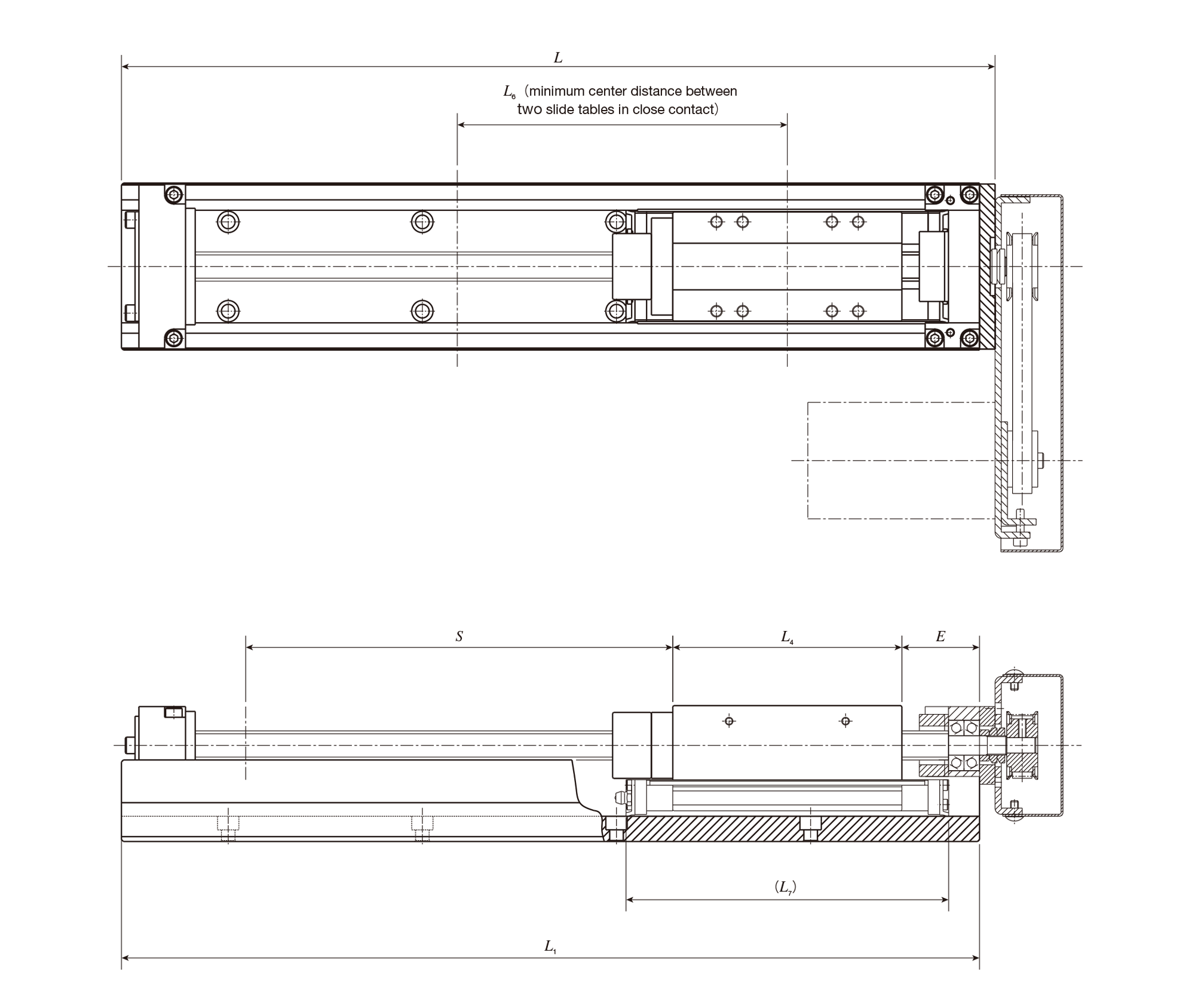

Table with C-Lube (Motor folding back specification)

unit: mm

Model
and size		 Length
of track rail
L1		 Overall
length
L		 Stroke length(1)S E L4 L6 L7
Lead 5mm
Lead 10mm		 Lead 20mm Lead 5mm
Lead 10mm		 Lead 20mm
TU60C
TU60FC		 244 252 90(－) 70(－) 55 74 27.4 75 70
344 352 190(140) 170(120)
444 452 290(240) 270(220)
544 552 390(340) 370(320)
644 652 490(440) 470(420)
744 752 590(540) 570(520)
TU60S
TU60F		 244 252 80(－) 70(－) 40 49 52.4 100 95
344 352 180(110) 170(100)
444 452 280(210) 270(200)
544 552 380(310) 370(300)
644 652 480(410) 470(400)
744 752 580(510) 570(500)
TU60G
TU60FG		 244 252 －(－) －(－) 40 39 83 130 125
344 352 150(－) 155(－)
444 452 250(150) 255(150)
544 552 350(250) 355(250)
644 652 450(350) 455(350)
744 752 550(450) 555(450)
Note（1） The value indicates the allowable stroke length when limit sensors are mounted. The value in（ ） represents dimension for two slide tables in close contact.
Remarks
  1. Parts for motor attachment are appended. This figure indicates a finished state after the motor attachment is assembled by the customer.
  2. For dimensions of the slide table and track rail, please see the dimension table for each size.

Without ball screw specification

unit: mm

Model
and size		 Specification
of track rail		 Length of track rail
L1		 Without bridge cover With bridge cover
F1 G1 F1 G1
TU60 Without motor
folding back		 290 32 17 35 29
390
490
590
690
790
990
1190 32 17 － －
Motor folding
back specification		 244 32 28 35 29
344
444
544
644
744
Remark: For dimensions of the slide table and track rail, please see the dimension table for each size.

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
