Dimension

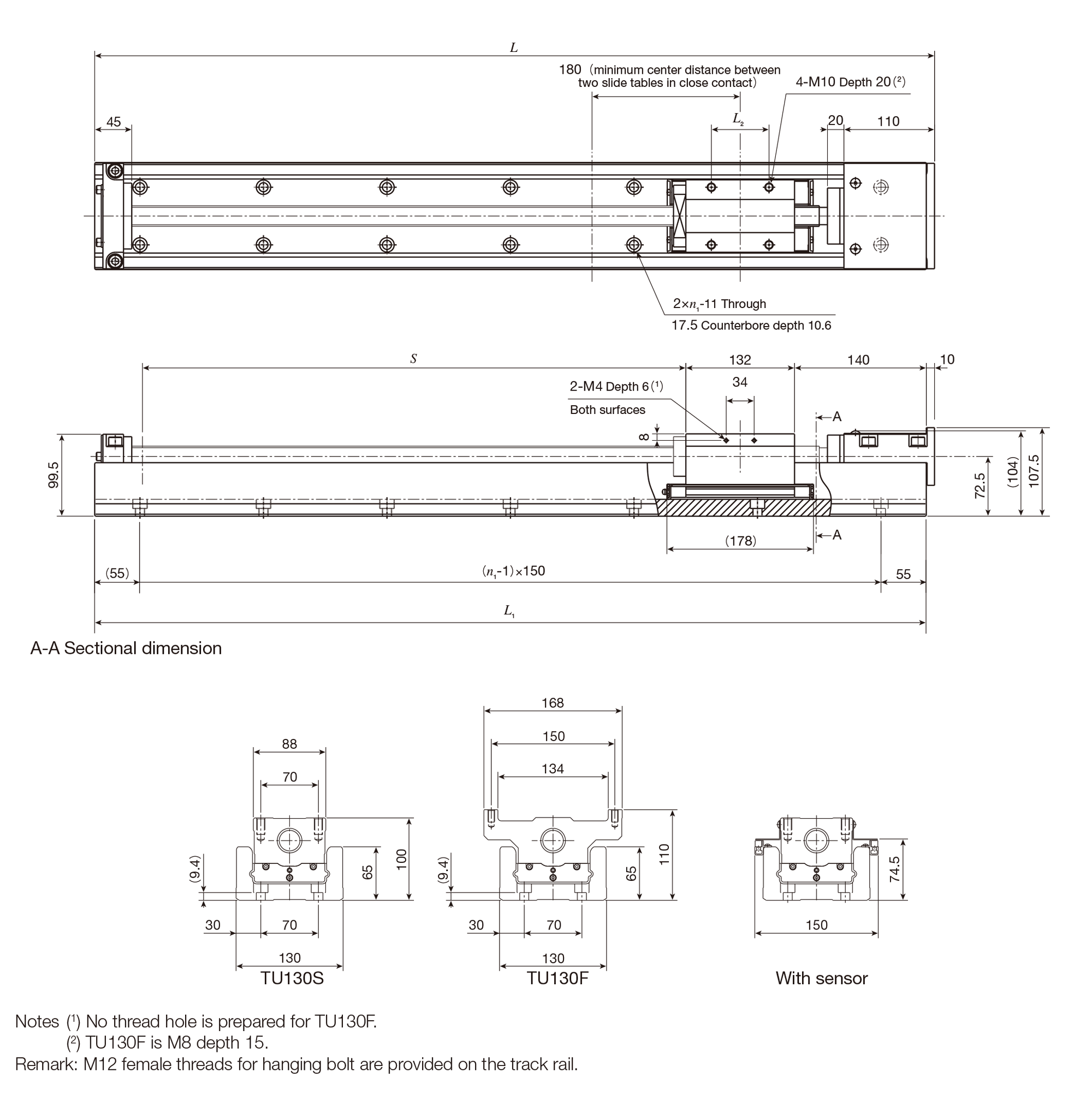

The dimensions of TU130 are shown below.

Dimensions

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length S(1)	ｎ1	L2	Mass of slide table Kg	Mass(2) Kg
TU130S	1010	1020	660(490)	7	70	5.4	45.2
	1160	1170	810(640)	8			50.6
	1310	1320	960(790)	9			56.2
	1460	1470	1110(940)	10			61.8
	1610	1620	1260(1090)	11			67.3
TU130F	1010	1020	660(490)	7	50	7.8	47.6
	1160	1170	810(640)	8			53.0
	1310	1320	960(790)	9			58.6
	1460	1470	1110(940)	10			64.2
	1610	1620	1260(1090)	11			69.7

Notes（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in （） represents dimension for two slide tables in close contact.
（2）	The value shows the mass of the entire table with one slide table.

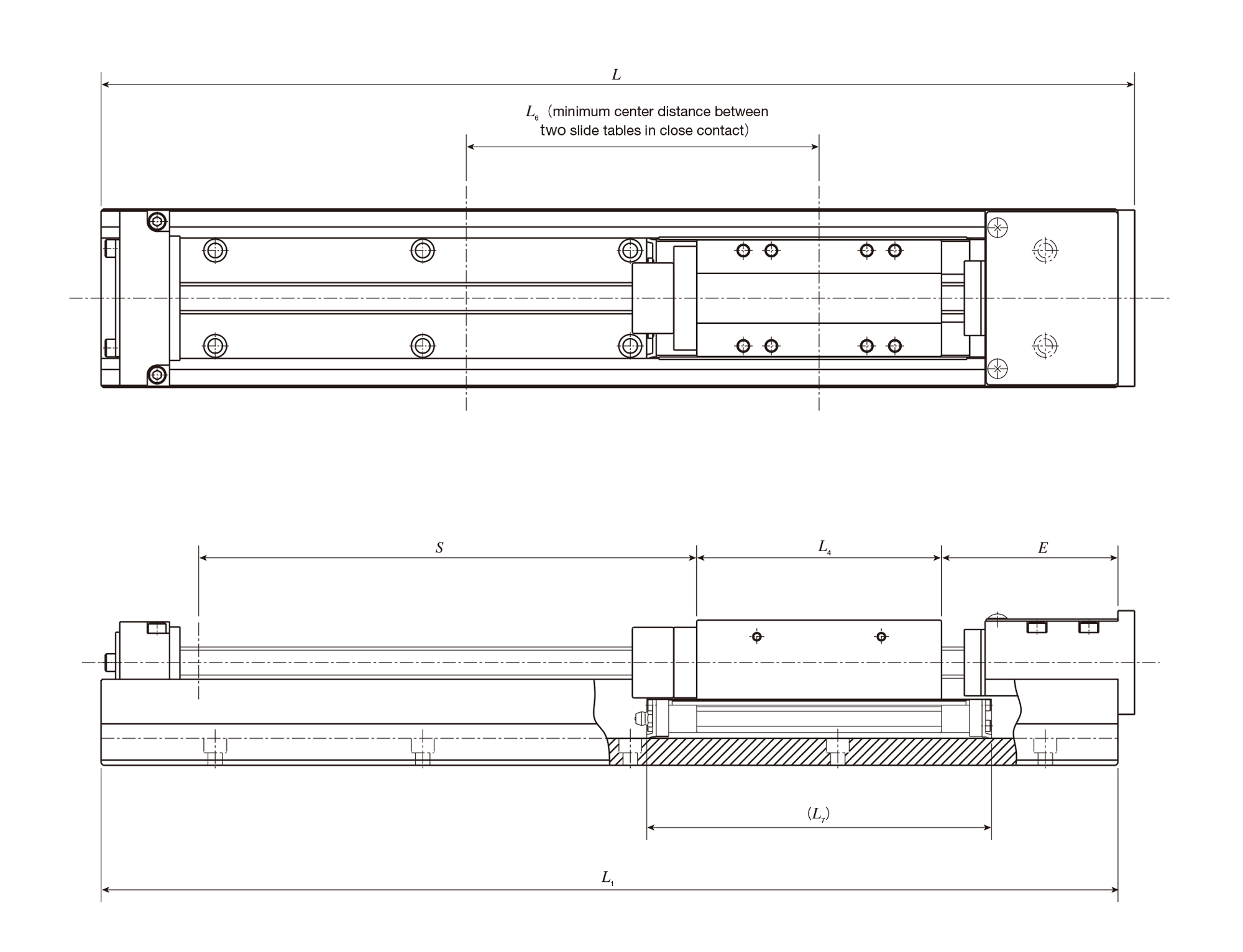

Table with C-Lube

unit: mm

Model and size	Length of track rail L1	Overall length L	Stroke length(1) S	E	L4	L6	L7
TU130S TU130F	1010	1020	630(480)	140	132	195	190
	1160	1170	780(630)
	1310	1320	930(780)
	1460	1470	1080(930)
	1610	1620	1230(1080)

Note（1）	The value indicates the allowable stroke length when limit sensors are mounted. The value in（） represents dimension for two slide tables in close contact.
Remark:	For dimensions of the slide table and track rail, please see the dimension table for each size.

Without ball screw specification

unit: mm

Model and size	Specification of track rail	Length of track rail L1	Without bridge cover		With bridge cover
Model and size	Specification of track rail	Length of track rail L1	F1	G1	F1	G1
TU130	Without motor folding back	1010	35	38	35	38
		1160
		1310
		1460
		16100

Remark:

For dimensions of the slide table and track rail, please see the dimension table for each size.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TU Features

TU Series is a slim, low-profile positioning table that consists of a U-shaped track rail and a slide table. The slide table assembled inside the U-shaped track rail is an integral part of a linear motion rolling guide mechanism, in which two rows of large diameter steel balls are arranged in four point contact with raceways. Owing to this design, stable, high accuracy motion and high rigidity are obtained in operations even when loads are fluctuating, varying in direction and magnitude, or are complex. Also, by adopting a U-shaped track rail, the rigidity of track rail under moment load and torsion is greatly improved. TU Series includes six sizes with a track rail widths of between 25 mm to 130 mm. For each of them, various slide table lengths can be selected. Also, ball screw types and leads, motor types, and sensor installations, etc. can be selected to obtain an optimum positioning table suitable for each application.
