Dimension

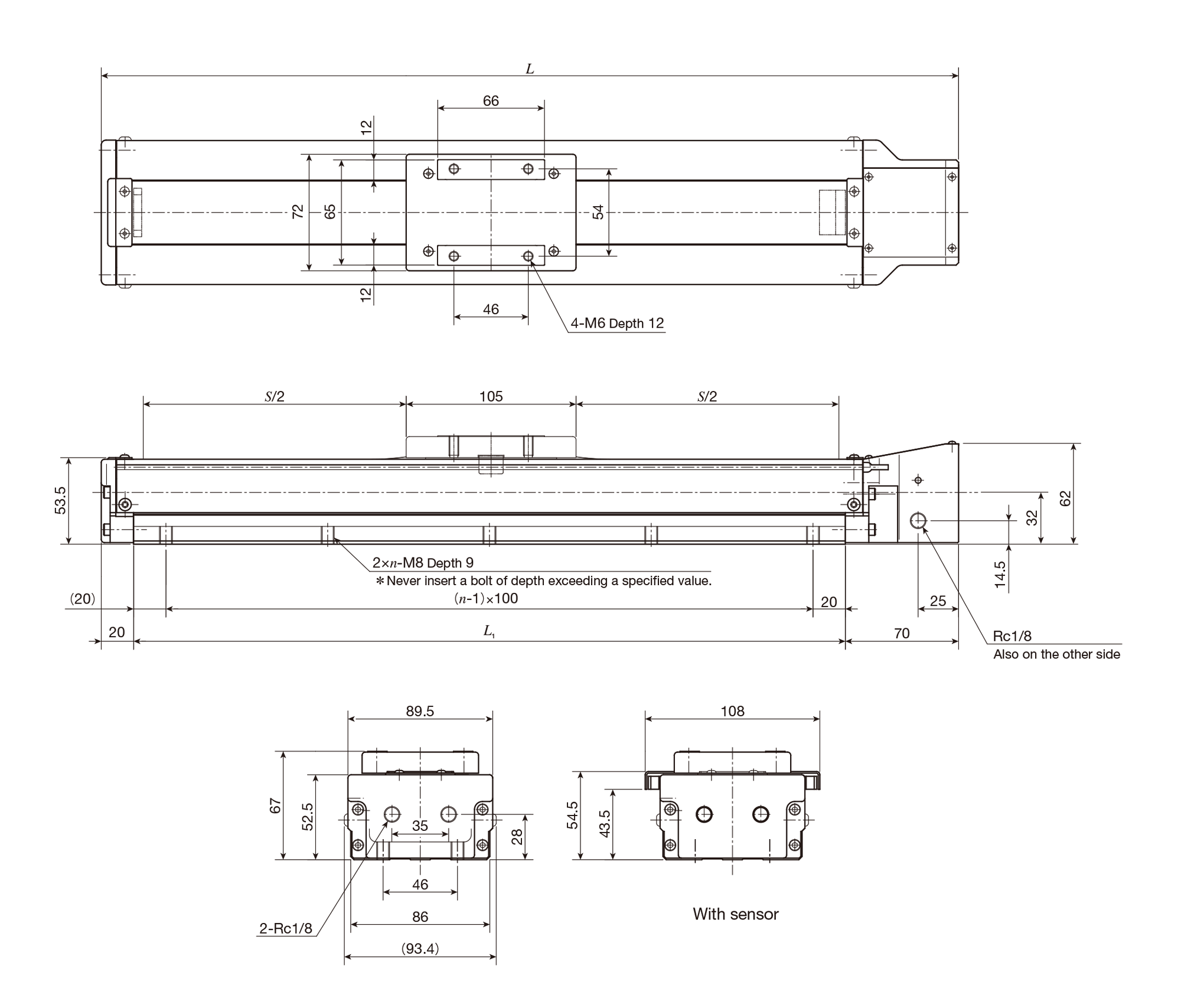

The dimensions of TC86 are shown below.

TC86EB

unit: mm

Bed length
L1		 Overall length
L		 Stroke length
S		 Mounting holes of bed
n		 Mass（Ref.）
Kg
340 430 200 4 3.6
440 530 300 5 4.2
540 630 400 6 4.8
640 730 500 7 5.4
740 830 600 8 6.0
840 930 700 9 6.6
940 1030 800 10 7.3

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TC Features

IKO Cleanroom Precision Positioining Table TC･･･E is the most suitable positioning table for use in a Cleanroom environment such as semiconductor or LCD manufacturing equipment or similar applications. The driving components and moving components inside of the table are sealed tightly with a stainless sheet and side covers, which prevent dust generated from within the table from being released to the surrounding environment. Cleanliness of ISO Class 3 (Federal Standard 209D Class 1) can be achieved by IKO Cleanroom Precision Positioning Table TC with the original tight-sealing structure.
