Dimension

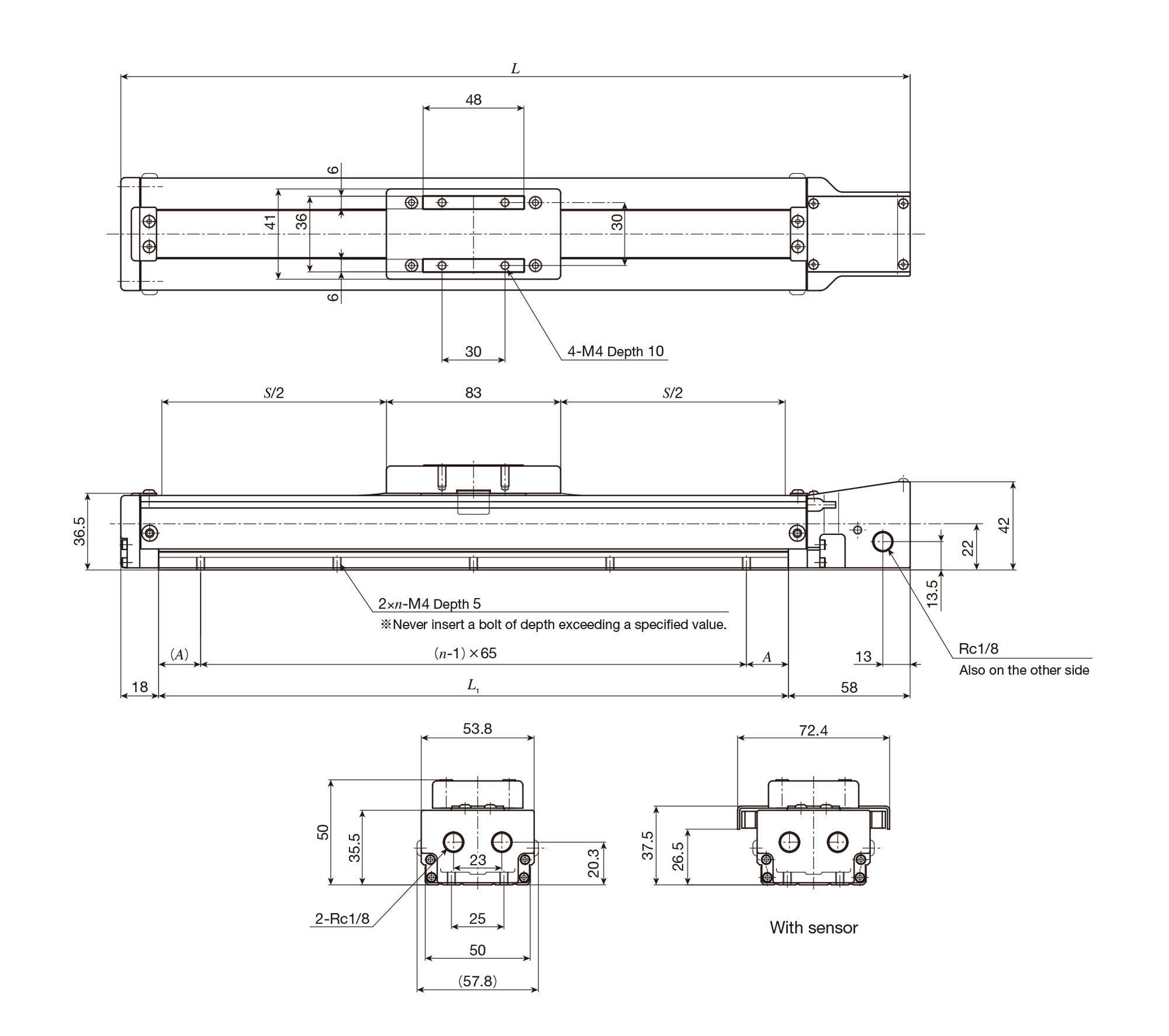

The dimensions of TC50 are shown below.

TC50EB

unit: mm

Bed length
L1		 Overall length
L		 Stroke length
S		 Mounting holes of bed Mass（Ref.）
Kg
A n
150 226 50 10 2 0.9
200 276 100 35 3 1.0
250 326 150 27.5 4 1.1
300 376 200 20 5 1.2

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TC Features

IKO Cleanroom Precision Positioining Table TC･･･E is the most suitable positioning table for use in a Cleanroom environment such as semiconductor or LCD manufacturing equipment or similar applications. The driving components and moving components inside of the table are sealed tightly with a stainless sheet and side covers, which prevent dust generated from within the table from being released to the surrounding environment. Cleanliness of ISO Class 3 (Federal Standard 209D Class 1) can be achieved by IKO Cleanroom Precision Positioning Table TC with the original tight-sealing structure.
