Dimension

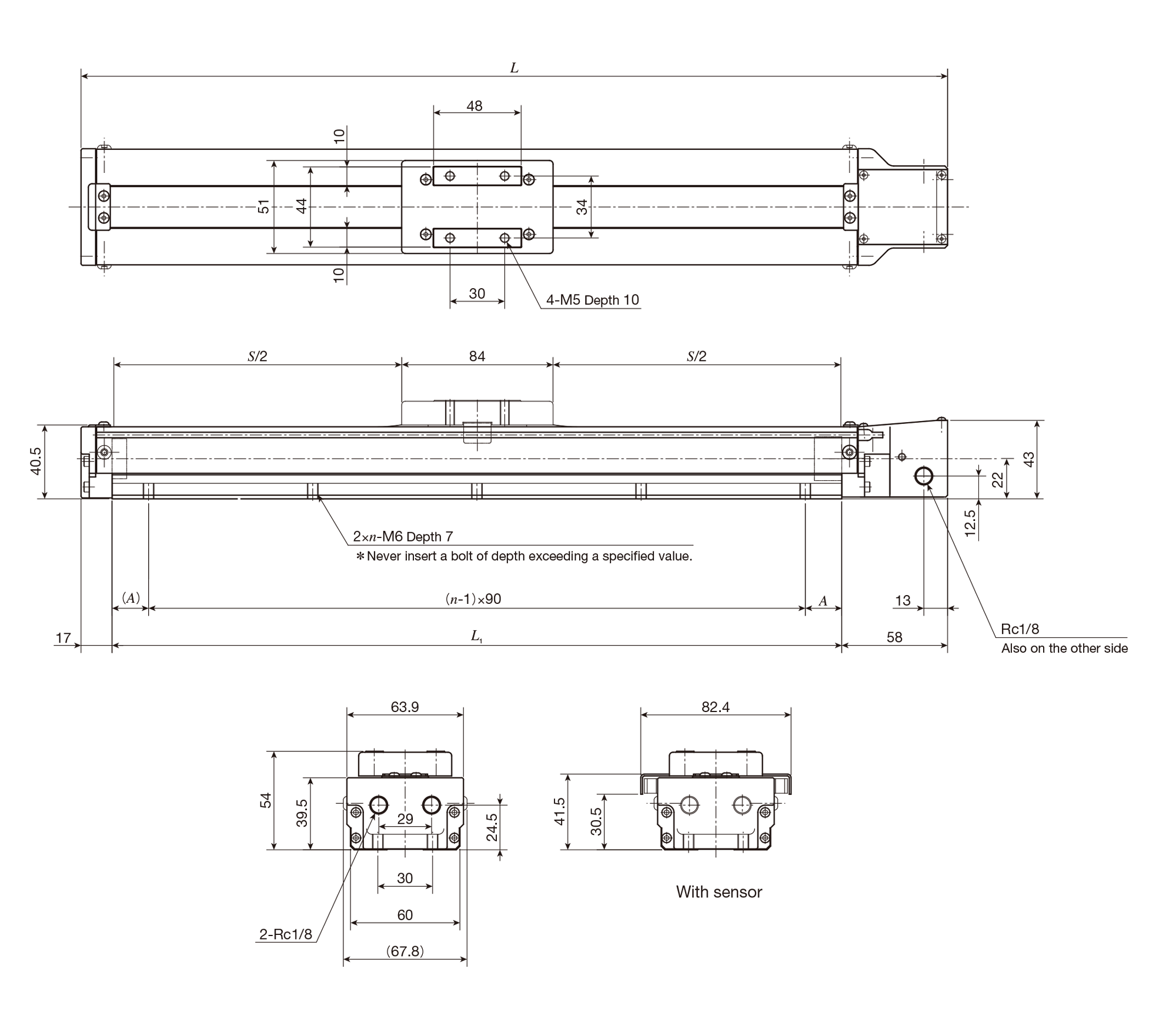

The dimensions of TC60 are shown below.

TC60EB

unit: mm

Bed length
L1		 Overall length
L		 Stroke length
S		 Mounting holes of bed Mass（Ref.）
Kg
A n
150 225 50 30 2 1.1
200 275 100 10 3 1.3
300 375 200 15 4 1.7
400 475 300 20 5 2.0
500 575 400 25 6 2.4
600 675 500 30 7 2.7
Remark: Motor attachment for stepper motor is 8mm lower than the bottom of the bed.

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TC Features

IKO Cleanroom Precision Positioining Table TC･･･E is the most suitable positioning table for use in a Cleanroom environment such as semiconductor or LCD manufacturing equipment or similar applications. The driving components and moving components inside of the table are sealed tightly with a stainless sheet and side covers, which prevent dust generated from within the table from being released to the surrounding environment. Cleanliness of ISO Class 3 (Federal Standard 209D Class 1) can be achieved by IKO Cleanroom Precision Positioning Table TC with the original tight-sealing structure.
