System coifiguration configuration

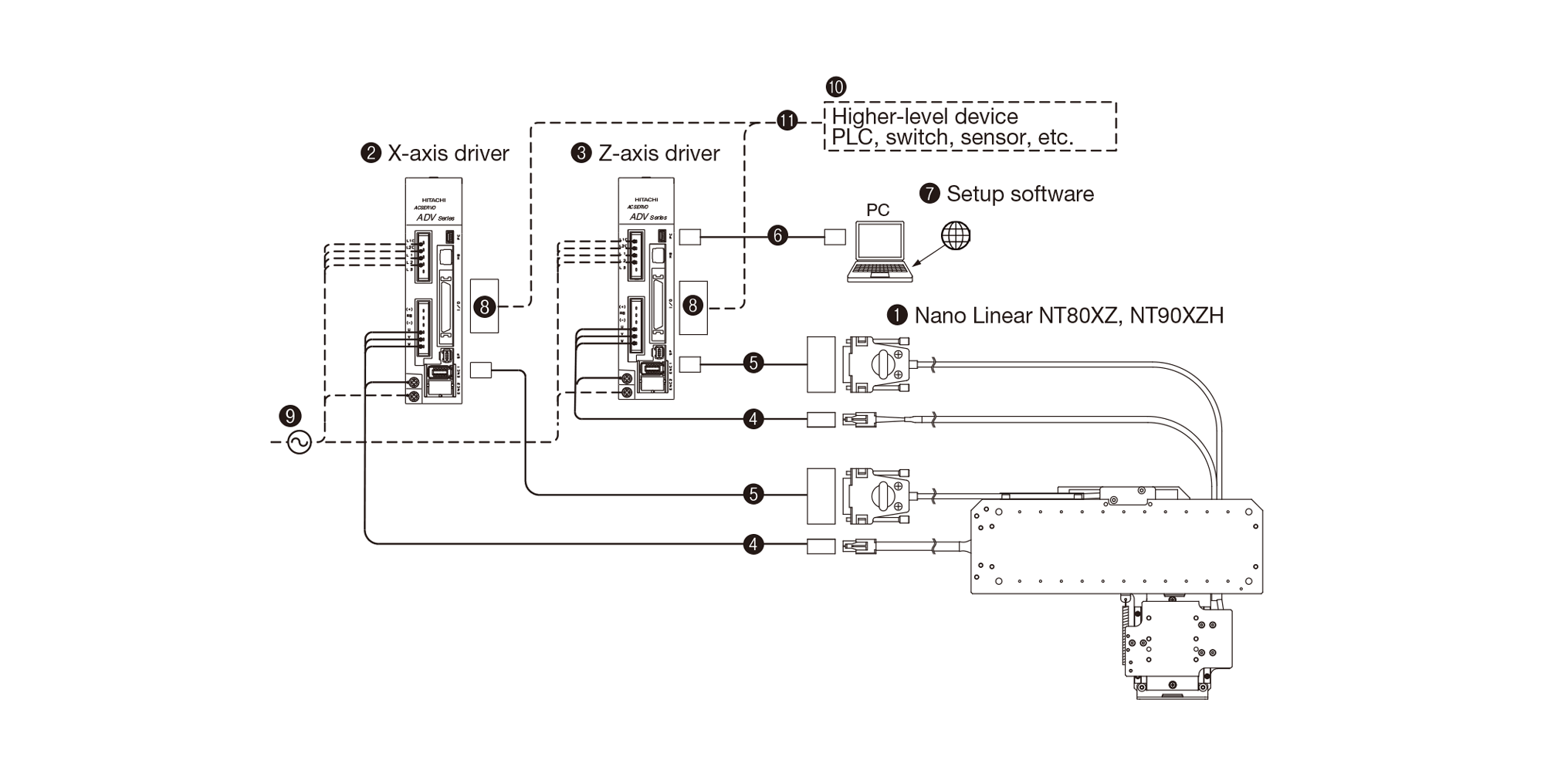

NT90XZH is configured as shown below.
System configuration for NT90XZH
*Click the image to enlarge it.
| No. | Name | Quantity | Model and size |
|---|---|---|---|
| ① | Nano Linear NT90XZH | 1 | NT90XZH2510 |
| ② | Driver for X-axis | 1 | ADVA-01NL/NT90XZH（200V specs） ADVA-R5ML/NT90XZH（100V specs） |
| ③ | Driver for Z-axis | 1 | ADVA-01NL/NT90XZH（200V specs） ADVA-R5ML/NT90XZH（100V specs） |
| ④ | Motor extension cord (3m)(1) | 2 | TAE20V3-AM03 |
| ⑤ | Encoder extension cord (2m)(1) | 2 | TAE20V4-EC02 |
| ⑥ | PC connection cable | 1 | USB mini B cable （This must be prepared by customer.） |
| ⑦ | Setup software | 1 | ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd. |
| ⑧ | I/O connector | 2 | TAE20R5-CN(2) |
| ⑨ | Power cord | － | This must be prepared by customer |
| ⑩ | Higher-level device | － | |
| ⑪ | I/O connector connection cable | － |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) | I/O connector TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
