Dimension

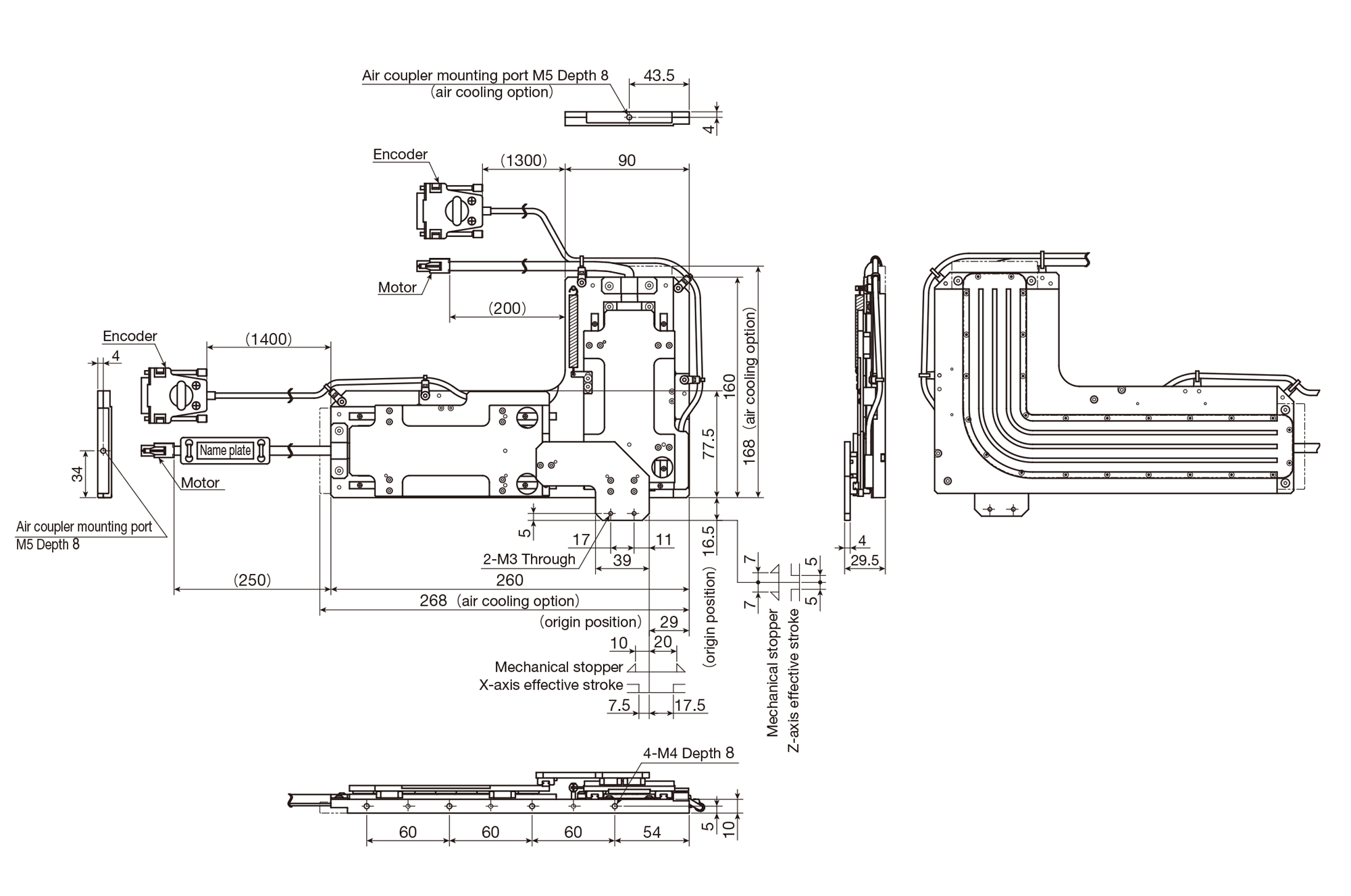

The dimensions of NT90XZH are shown below.
NT90XZH
![](../../common/images_en/NT-XZH/NT-90XZH-size-1.png)
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
The dimensions of NT90XZH are shown below.
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
Nano Linear NT, which adopts IKO C-Lube Linear Way ML for the guide of the table, is a high thrust pick-and-place unit driven by linear motor that unifies the motion of X-axis and the Z-axis in a compact arrangement.
Both high thrust and light weight of the moving part of the linear motor are achieved by adopting a method to drive the moving table with a linkage. This and therefore accomplishes a reduction of the takt time.
The driving pattern and the stroke can be changed to match the work requirements by inputting positioning data.
