Dimension
The dimensions of TZ120X are shown below.

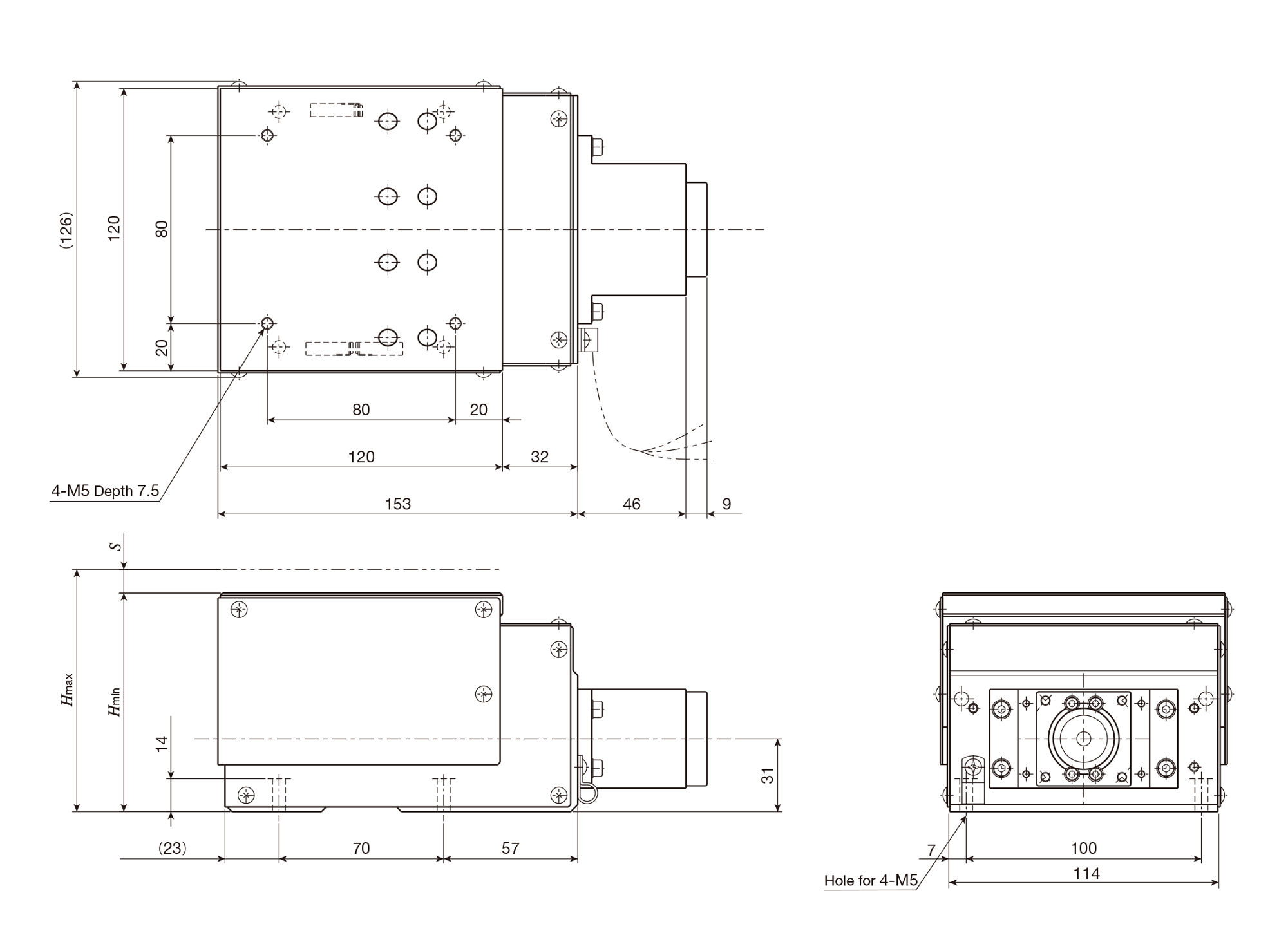

without linear encoder
unit: mm
| Identification number |
Wedge reduction ratio |
Mass (Ref.) Kg |
Height | Stroke length S |
|
|---|---|---|---|---|---|
| Hmin （CW limit position） |
Hmax （CCW limit position） |
||||
| TZ120X-2 | 1:2 | 3.8 | 93 | 103 | 10 |
| TZ120X-4 | 1:4 | 3.4 | 84.5 | 89.5 | 5 |

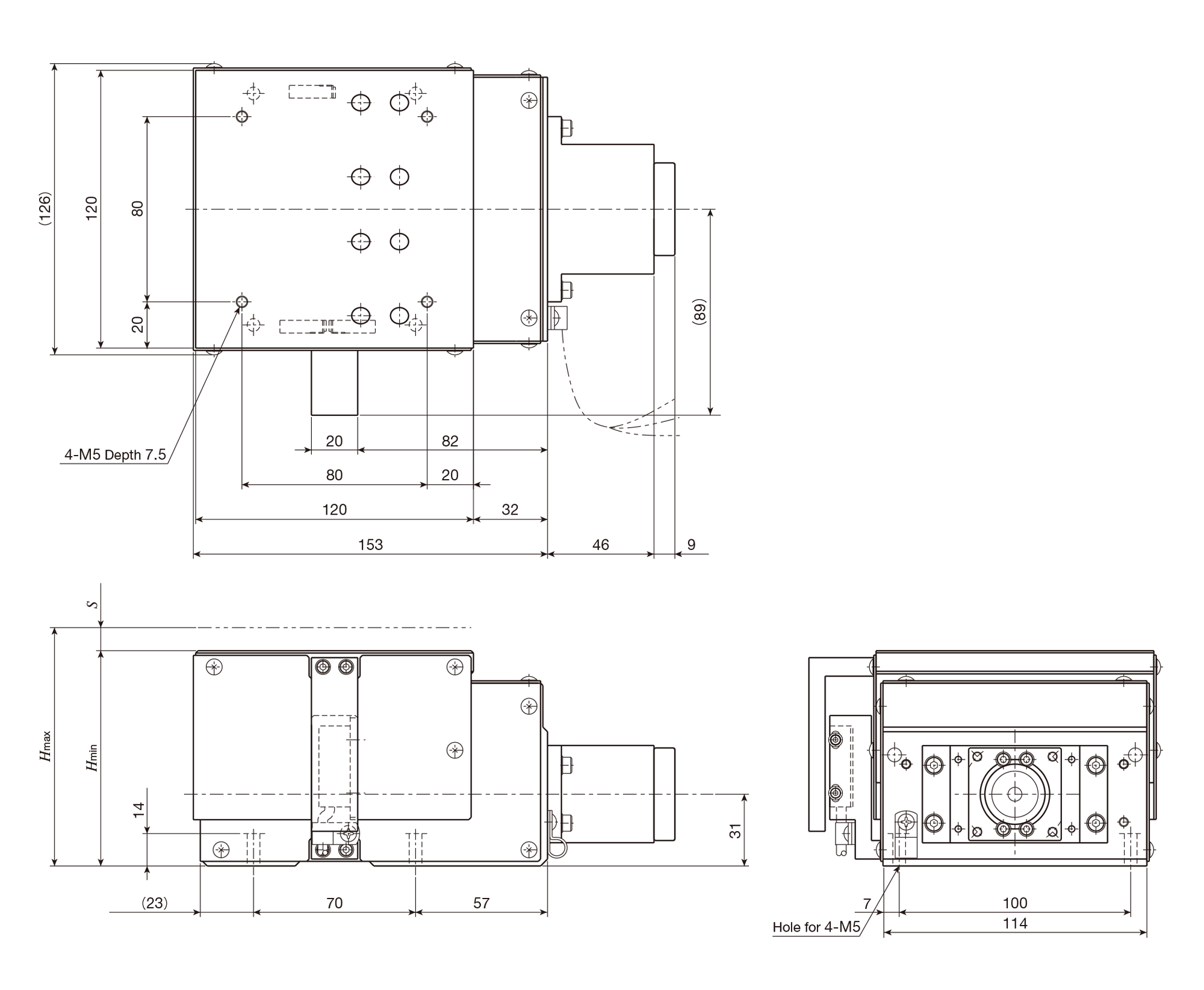

with linear encoder
unit: mm
| Identification number |
Wedge reduction ratio |
Mass (Ref.) Kg |
Height | Stroke length S |
|
|---|---|---|---|---|---|
| Hmin （CW limit position） |
Hmax （CCW limit position） |
||||
| TZ120X-2 | 1:2 | 4.5 | 93 | 103 | 10 |
| TZ120X-4 | 1:4 | 4.1 | 84.5 | 89.5 | 5 |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
