Dimension

The dimensions of TS220/310 are shown below.

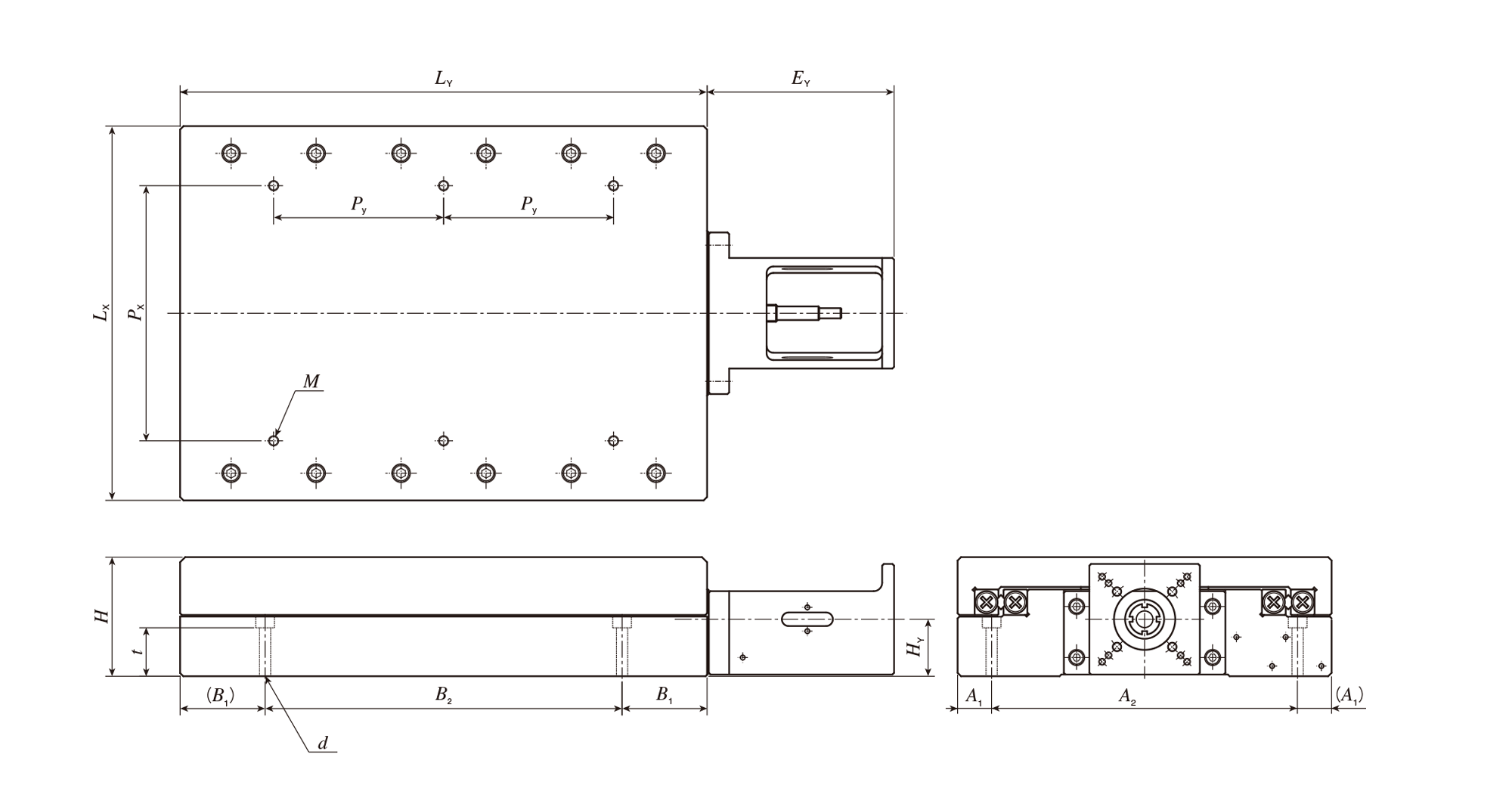

Specification without sensor

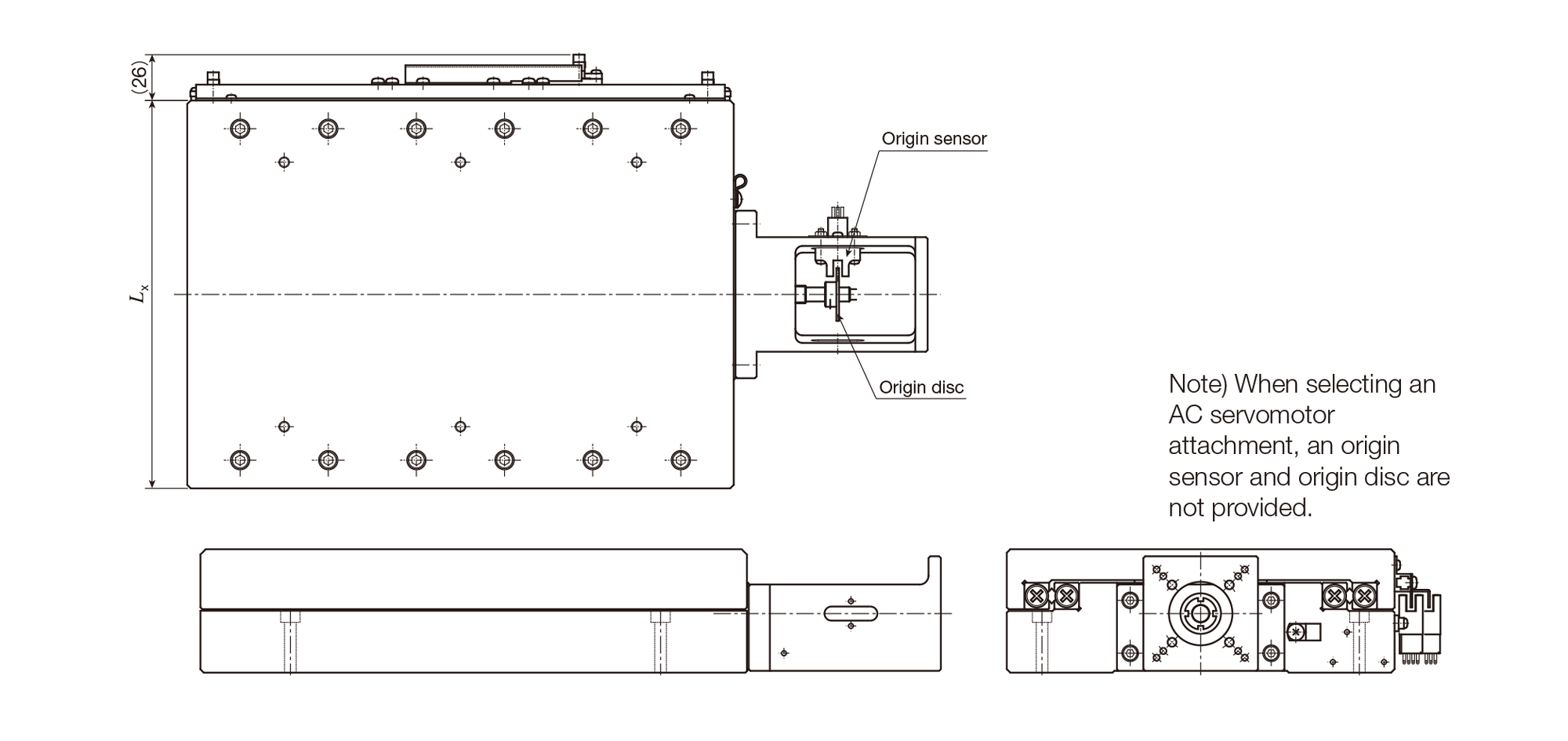

Specification with sensor

unit: mm

Identification number	Dimensions of table			Stroke length	EY	Height of shaft center HY
Identification number	LX	LY	H	Stroke length	EY	Height of shaft center HY
TS125/220(1)	125	220	60	120	71	31.5
TS220/310	220	310	70	180	110	33.5
TS260/350	260	350	100	250	120	47.5

Identification number	Mounting bolt			Bed mounting-related dimensions						Reference mass(2) Kg
Identification number	M(3)	PX	PY	d	t	A1	A2	B1	B2	Reference mass(2) Kg
TS125/220(1)	6-M5 depth 10	70	75	For 4-M5	29.6	12.5	100	20	180	11
TS220/310	6-M6 depth 12	150	100	For 4-M6	28.5	20	180	50	210	27
TS260/350	6-M6 depth 12	150	125	For 4-M8	45.4	22.5	215	50	250	48

Notes(1)	The motor bracket is positioned 1.5mm higher than the upper surface of the table.
(2)	Mass of the sensor is not included.
(3)	Too deep insertion depth of the mounting bolt may affect the running performance of the slide table, so never insert a bolt longer than the depth of the through hole.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TS・CT Features

TS/CT Compact Series Table is a positioning table which incorporates IKO's Crossed Roller Way, a long established precision type linear motion rolling guide. It is assembled in conjunction with a high rigidity and superior vibration-damping slide table and bed made of cast iron together with a precision ball screw as the drive mechanism. This table achieves a low sectional height, high reliability, and high accuracy by making the most of the features of the compact, high accuracy and high rigidity Crossed Roller Way. Compact Series TS/CT includes a single axis type and also a two axis type and is widely used in applications requiring high accuracy positioning such as precision measuring instruments and systems.
