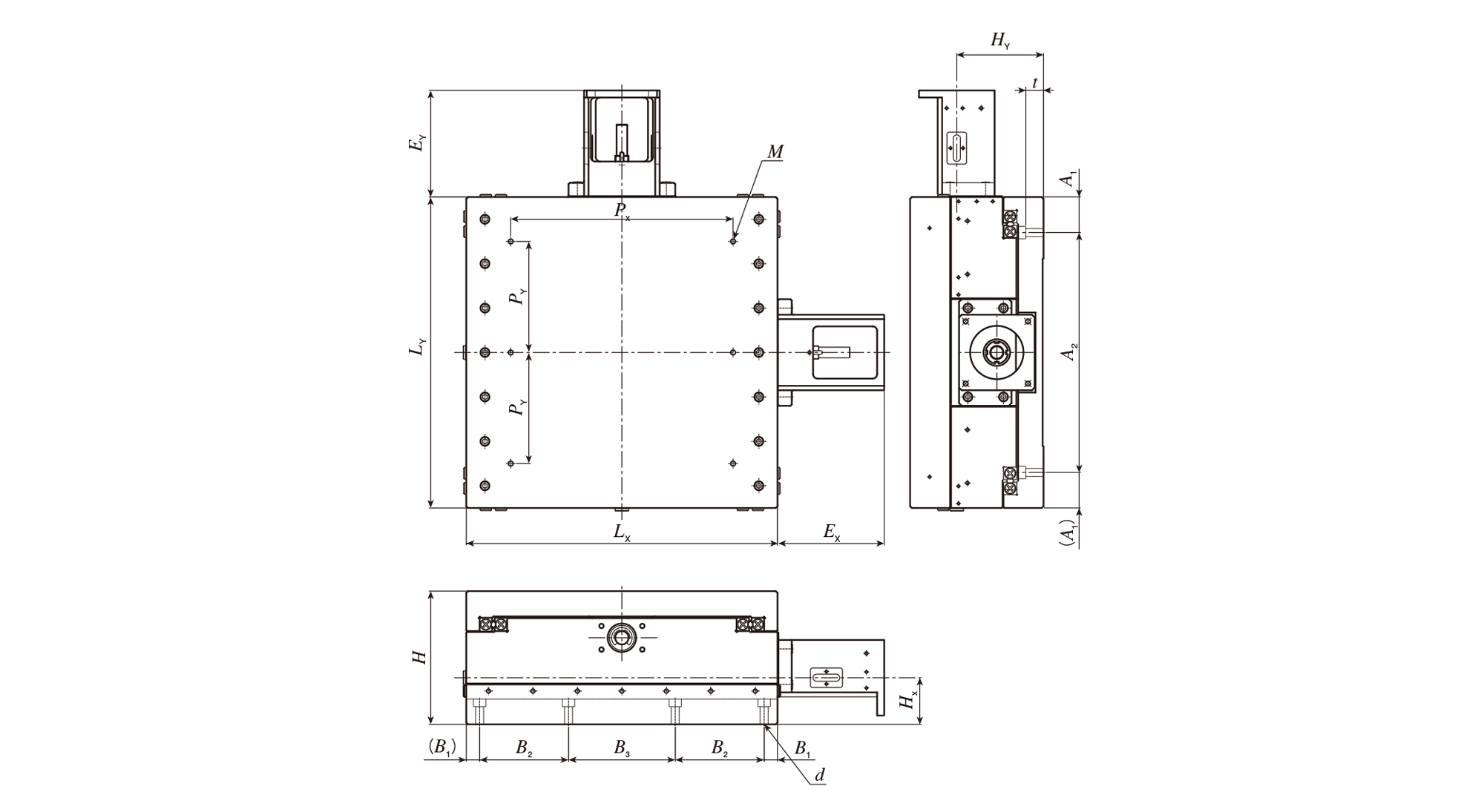

The dimensions of CT220/220 are shown below.

Specification without sensor

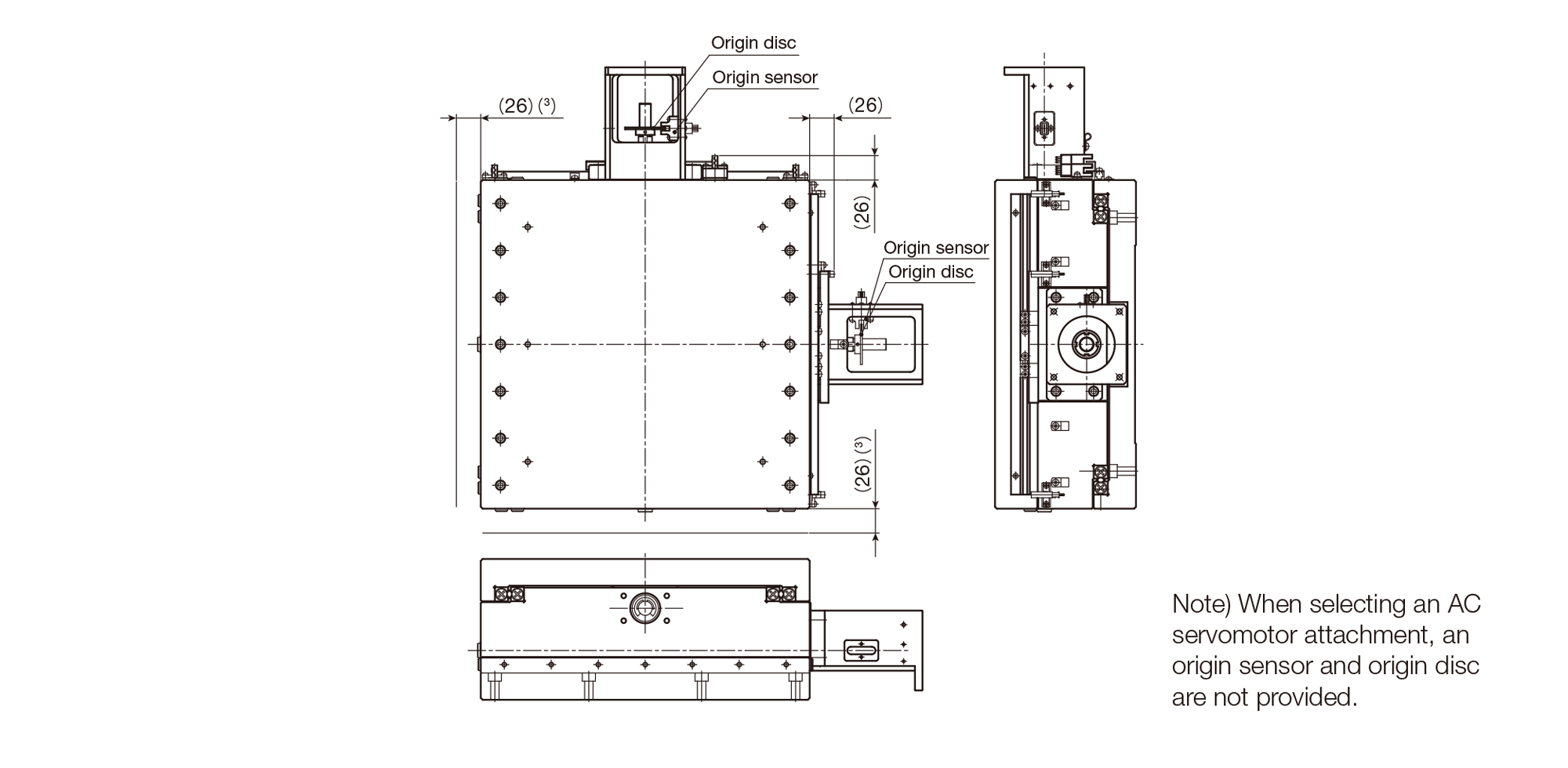

Specification with sensor

unit: mm

Identification number	Dimensions of table			Stroke length		EX	EY	Height of shaft center
Identification number	LX	LY	H	X-axis	Y-axis	EX	EY	HX	HY
CT220/220	220	220	100	120	120	72	72	31.5	68.5
CT260/350	260	350	150	150	250	100	120	52.5	97.5
CT350/350	350	350	150	250	250	120	120	52.5	97.5

Identification number	Mounting bolt			Bed mounting-related dimensions							Reference mass(2) Kg
Identification number	M(1)	PX	PY	d	t	A1	A2	B1	B2	B3	Reference mass(2) Kg
CT220/220	6-M6 depth 12	150	75	For 8-M6	7.5	30	160	15	40	110	20
CT260/350	6-M6 depth 12	150	125	For 8-M8	20	40	270	15	55	120	66
CT350/350	6-M6 depth 12	250	125	For 8-M8	20	40	270	15	100	120	77

Notes(1)	Too deep insertion depth of the mounting bolt may affect the running performance of the slide table, so never insert a bolt longer than the depth of the through hole.
(2)	Mass of the sensor is not included.
(3)	Applicable to CT220/220. This shows the dimension when the sensor is attached.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

TS・CT Features

TS/CT Compact Series Table is a positioning table which incorporates IKO's Crossed Roller Way, a long established precision type linear motion rolling guide. It is assembled in conjunction with a high rigidity and superior vibration-damping slide table and bed made of cast iron together with a precision ball screw as the drive mechanism. This table achieves a low sectional height, high reliability, and high accuracy by making the most of the features of the compact, high accuracy and high rigidity Crossed Roller Way. Compact Series TS/CT includes a single axis type and also a two axis type and is widely used in applications requiring high accuracy positioning such as precision measuring instruments and systems.
