System coifiguration configuration
ADVA and MR-J4 are available as dedicated drivers for the alignment stage SA. The system configuration differs depending on the driver used.
SA65DE is configured as shown below.

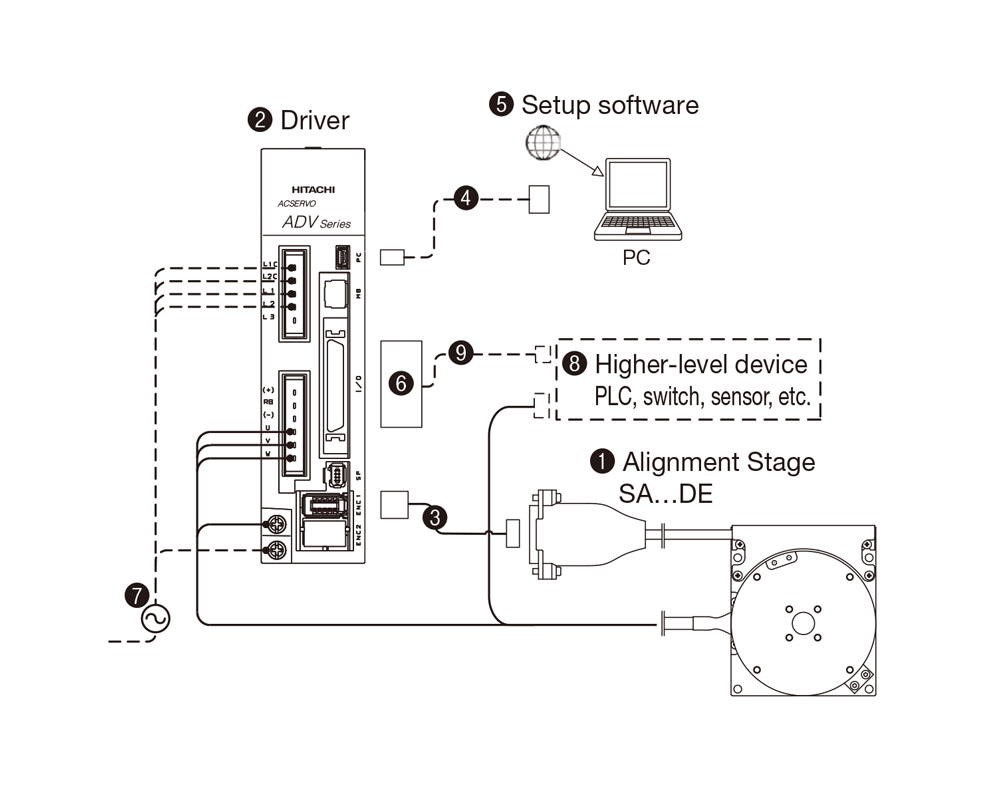

System configuration for SA65DE with driver ADVA
*Click the image to enlarge it.
| No. | Name | Identification Number |
|---|---|---|
| ③ | Encoder extension cord (2m)(1) |
TAE20V4-EC02 |
| ④ | PC connection cable | USB mini B cable This must be prepared by customer. |
| ⑤ | Setup software | ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd. |
| ⑥ | I/O connector | TAE20R5-CN(2) |
| ⑦ | Power cord | This must be prepared by customer. |
| ⑧ | Higher-level device | |
| ⑨ | I/O connector connection cable |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) | I/O connector TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited. |

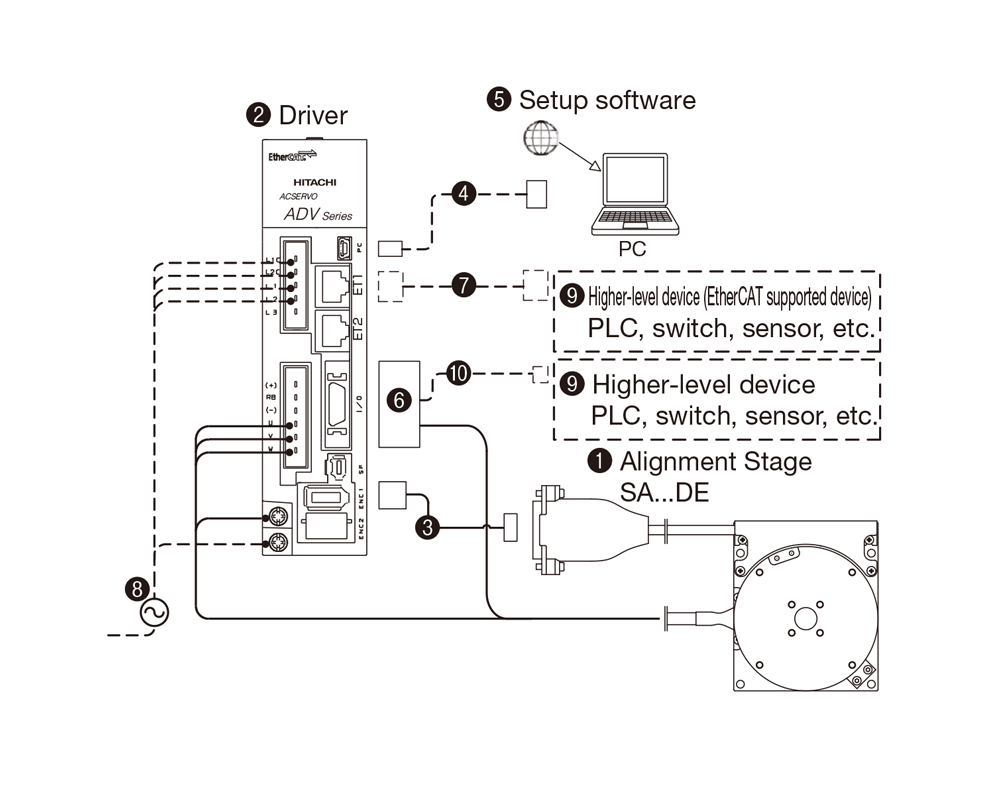

System configuration for SA65DE with driver ADVA...EC
*Click the image to enlarge it.
| No. | Name | Identification Number |
|---|---|---|
| ③ | Encoder extension cord (2m)(1) |
TAE20V4-EC02 |
| ④ | PC connection cable | USB mini B cable This must be prepared by customer. |
| ⑤ | Setup software | ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd. |
| ⑥ | I/O connector | TAE20V5-CN(2) |
| ⑦ | Ethernet cable | This must be prepared by customer. |
| ⑧ | Power cord | |
| ⑨ | Higher-level device | |
| ⑩ | I/O connector connection cable |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) | I/O connector TAE20V5-CN is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan Limited. |

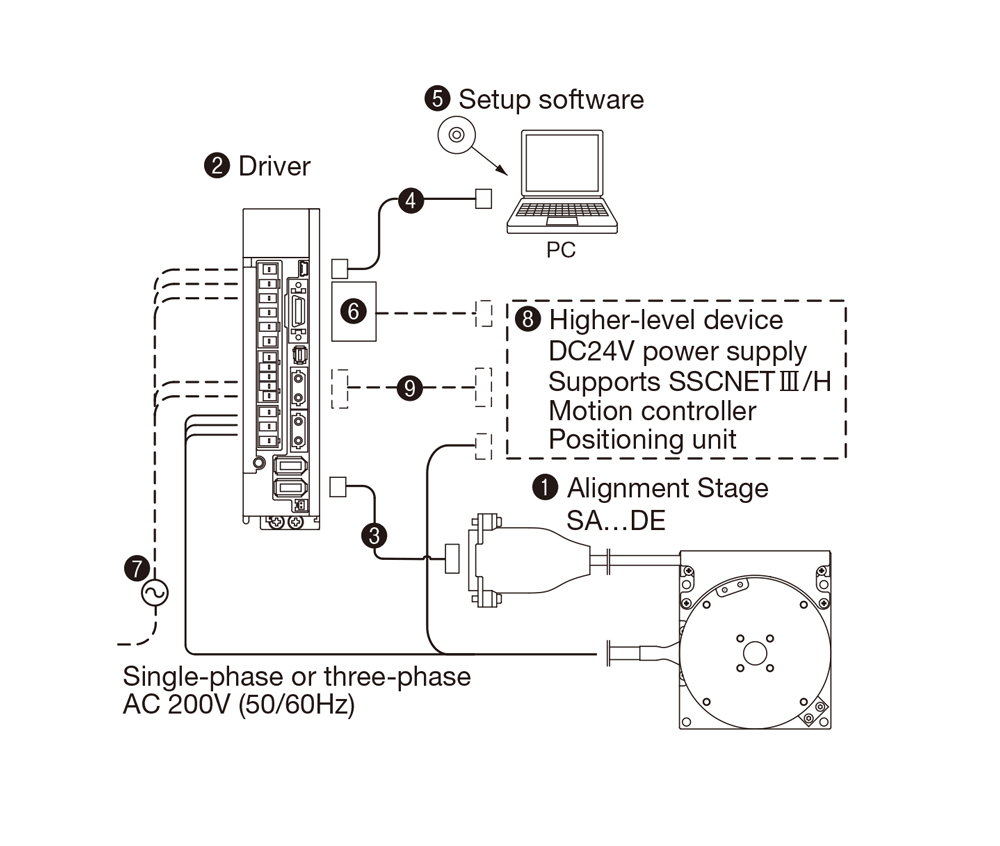

System configuration (SSCNET Ⅲ/H supported) for SA65DE with driver MR-J4-10B
*Click the image to enlarge it.
| No. | Name | Identification Number |
|---|---|---|
| ③ | Encoder extension cord (2m)(1) |
TAE20V6-EC02 |
| ④ | PC connection cable (3m) | MR-J3USBCBL3M |
| ⑤ | Setup software | SW1DNC-MRC2-J |
| ⑥ | Connectors for input/output connection | MR-CCN1(2) |
| ⑦ | Power cord | This must be prepared by customer. |
| ⑧ | Higher-level device(3) | |
| ⑨ | Connection cable for SSCNET Ⅲ/H |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) | Connector for input/output connection MR-CCN1 is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan Limited. |
| (3) | The higher-level devices are a motion controller, positioning unit and DC24V power supply ready for SSCNET Ⅲ/H from Mitsubishi Electric Corporation. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
