System coifiguration configuration

Dedicated drivers are available for NT38V and their configurations are shown below.If you wish to use a driver other than the dedicated driver, please contact IKO.

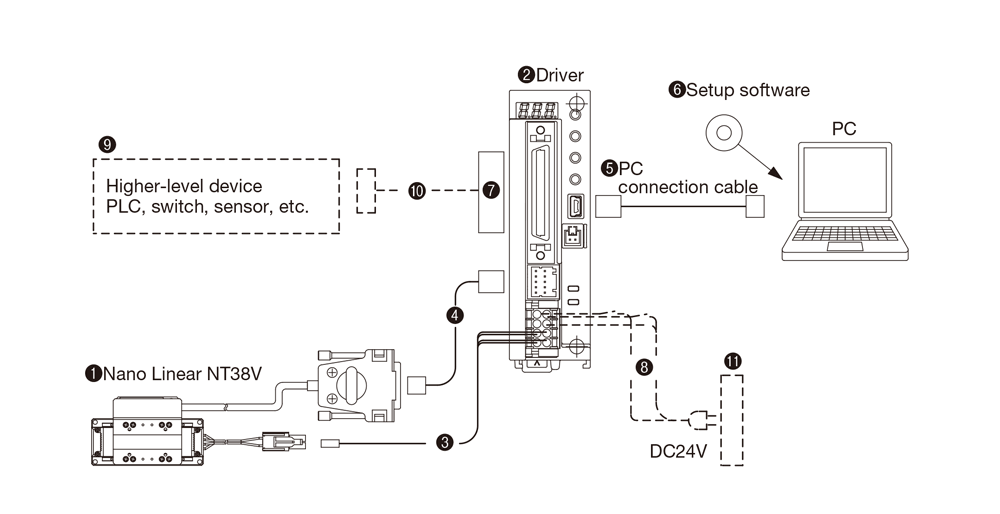

System configuration for NT38V

*Click the image to enlarge it.

No.	Name	Identification number
①	Nano Linear NT…V	NT38V
②	Driver	MR-J4-03A6-NL156J154（NT38V10用） MR-J4-03A6-NL156J155（NT38V18用）
③	Motor extension cord (3m(1)	TAE20W2-AM03
④	Encoder extension cord (2m(1)	TAE20W3-EC02
⑤	PC connection cable (3m)	MR-J3USBCBL3M
⑥	Setup software	SW1DNC-MRC2-J
⑦	Connectors for input & output signal	TAE20R5-CN(2)
⑧	Power cord	This must be prepared by customer.
⑨	Higher-level device, Sensor(3)
⑩	Higher-level device, Sensor connection cord(3)
⑪	DC24V power supply

Notes（1）	For specific cord length, please contact IKO.
（2）	Connectors for input & output signal TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited.
（3）	Depending on the higher-level device connected, a sensor may be required for return to origin.
	For details, contact IKO.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Pick Up

NT･･･V Features

IKO Nano Linear NT is a compact linear motor tablewith excellent functionality. This is achieved via an optical linear encoder (connected to the movable steel table) and stator coil and head for said linear encoder connected to the steel bed. For the guided portion of the table, a C-Lube Linear Way L was used, which has a maintenance-free life of 5 years, or 20,000 km, contributing to the reduction of maintenance time. By adopting high performance neodymium magnets for the rotor, a maximum thrust of 36N is generated, and high-speed, high-response positioning is made possible. Furthermore, since the mechanical contact portion uses only a Linear Way, high cleanliness is realized.
Nano Linear NT is most suitable as a compact positioning mechanism for applications such as semiconductor / liquid crystal related manufacturing equipment, inspection instruments, and other assembly equipment which require a clean environment.
