System coifiguration configuration
A dedicated driver is available for each type of NT80V. The system configuration varies depending on the driver used.The system configuration for each driver is shown below.

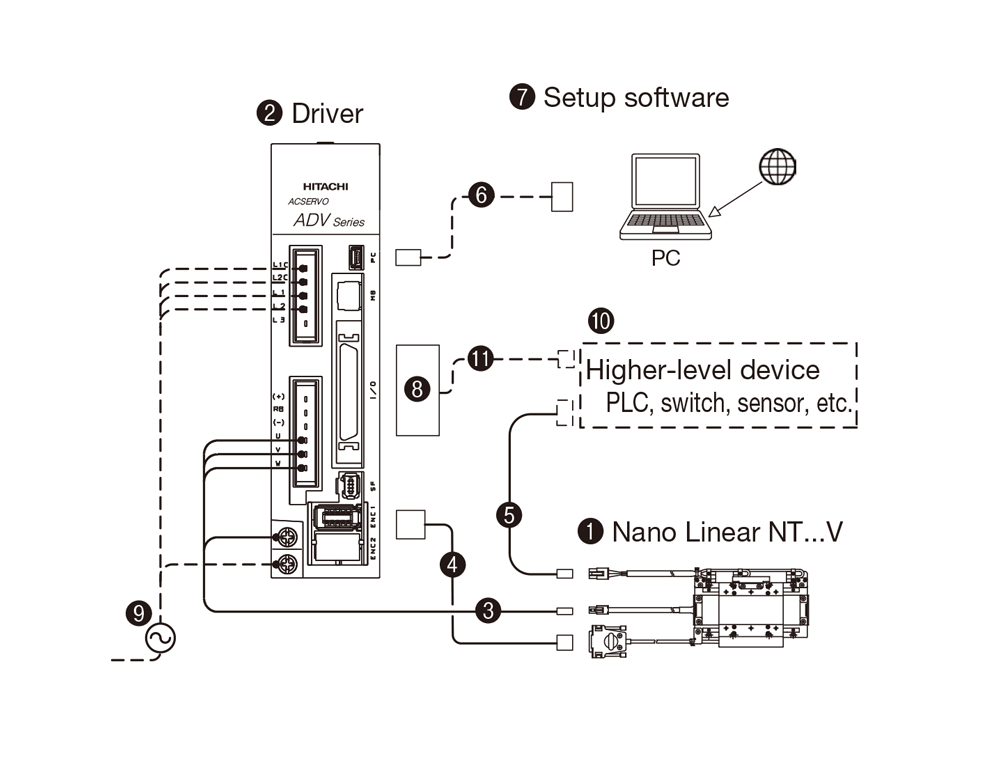

System configuration for NT80V with driver ADVA
*Click the image to enlarge it.
| No. | Name | Model and size |
|---|---|---|
| ③ | Motor extension cord (3m)(1) |
TAE20V3-AM03 |
| ④ | Encoder extension cord (2m)(1) |
TAE20V4-EC02 |
| ⑤ | Sensor extension cord(2) | TAE10V8-LC□□ |
| ⑥ | PC connection cable | USB mini B cable This must be prepared by customer. |
| ⑦ | Setup software | ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd. |
| ⑧ | I/O connector | TAE20R5-CN(3) |
| ⑨ | Power cord | This must be prepared by customer. |
| ⑩ | Higher-level device | |
| ⑪ | I/O connector connection cable |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) | The lengths of the sensor extension cord is specified in the fields of □□ located at the end of the identification number with a length from 3 to 10m in units of 1m. |
| (3) | I/O connector TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited. |

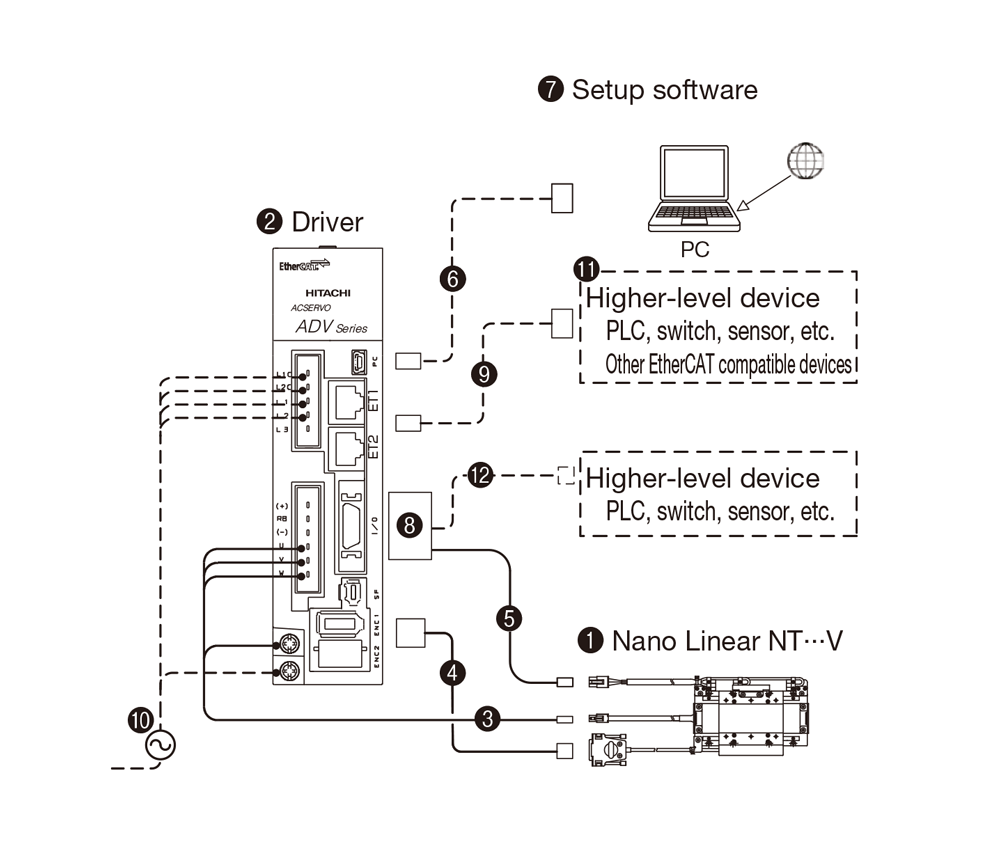

System configuration for NT55V with driver ADVA…EC
*Click the image to enlarge it.
| No. | Name | Model and size |
|---|---|---|
| ③ | Motor extension cord (3m)(1) |
TAE20V3-AM03 |
| ④ | Encoder extension cord (2m)(1) |
TAE20V4-EC02 |
| ⑤ | Sensor extension cord(2) | TAE10V8-LC□□ |
| ⑥ | PC connection cable | USB mini B cable This must be prepared by customer. |
| ⑦ | Setup software | ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd. |
| ⑧ | I/O connector | TAE20V5-CN(3) |
| ⑨ | Ethernet cable | This must be prepared by customer. |
| ⑩ | Power cord | |
| ⑪ | Higher-level device | |
| ⑫ | I/O connector connection cable |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) |
The lengths of the sensor extension cord is specified in the fields of □□ located at the end of the identification number with a length from 3 to 10m in units of 1m. |
| (3) | I/O connector TAE20V5-CN is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan Limited. |

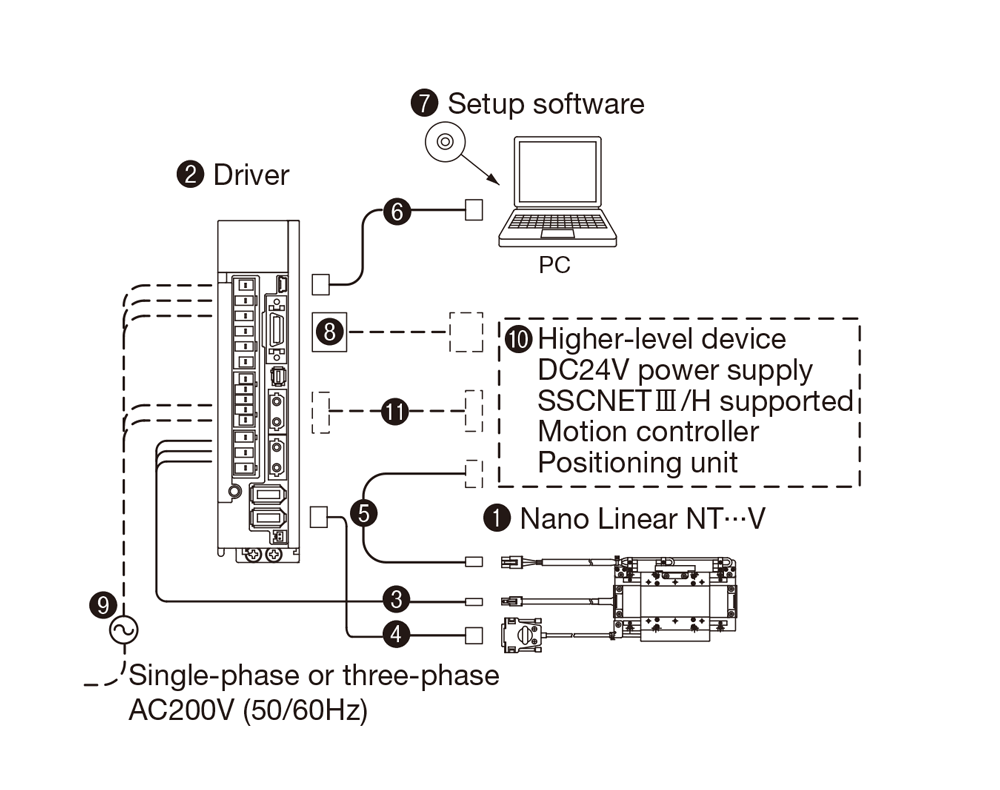

System configuration for NT80V with driver MR-J4-10B (SSCNET Ⅲ/H compatible)
*Click the image to enlarge it.
| No. | Name | Model and size |
|---|---|---|
| ③ | Motor extension cord (3m)(1) |
TAE20V3-AM03 |
| ④ | Encoder extension cord (2m)(1) |
TAE20V4-EC02 |
| ⑤ | Sensor extension cord(2) | TAE10V8-LC□□ |
| ⑥ | PC connection cable(3m) | MR-J3USBCBL3M |
| ⑦ | Setup software | SW1DNC-MRC2-J |
| ⑧ | I/O connection connector | MR-CCN1(3) |
| ⑨ | Power cord | This must be prepared by customer. |
| ⑩ | Higher-level device(4) | |
| ⑪ | SSCNETⅢ/H connection cable |
| Notes(1) | For specific cord length, please contact IKO. |
| (2) | The lengths of the sensor extension cord is specified in the fields of □□ located at the end of the identification number with a length from 3 to 10m in units of 1m. |
| (3) | Connectors for input/output connection MR-CCN1 is a combined product of 10120-3000PE (connector) and 10320-52F0-008 (cover) from 3M Japan Limited. |
| (4) | The higher-level devices are a motion controller, positioning unit and DC24V power supply ready for SSCNETⅢ/H from Mitsubishi Electric Corporation. |
Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.
