NT80XZ

System coifiguration configuration

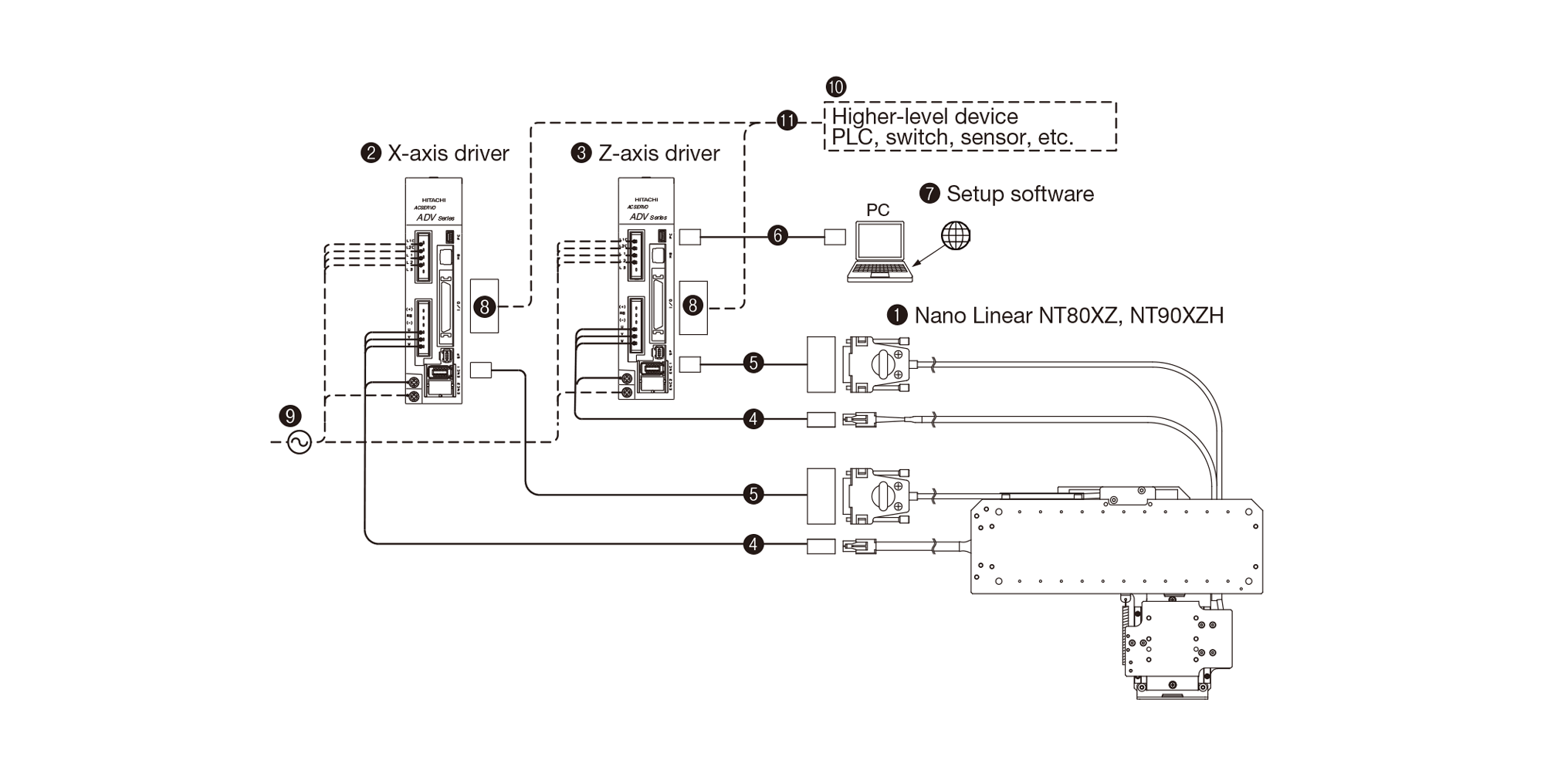

NT80XZ is configured as shown below.

System configuration for NT80XZ

*Click the image to enlarge it.

No.	Name	Quantity	Model and size
①	Nano Linear NT80XZ	1	NT80XZ4510
②	Driver for X-axis	1	ADVA-01NL/NT80XZ-X（200V specs） ADVA-R5ML/NT80XZ-X（100V specs）
③	Driver for Z-axis	1	ADVA-01NL/NT80XZ-Z（200V specs） ADVA-R5ML/NT80XZ-Z（100V specs）
④	Motor extension cord (3m)(1)	2	TAE20V3-AM03
⑤	Encoder extension cord (2m)(1)	2	TAE20V4-EC02
⑥	PC connection cable	1	USB mini B cable （This must be prepared by customer.）
⑦	Setup software	1	ProDriveNext Please download from the official website of Hitachi Industrial Equipment Systems Co., Ltd.
⑧	I/O connector	2	TAE20R5-CN(2)
⑨	Power cord	－	This must be prepared by customer.
⑩	Higher-level device	－
⑪	I/O connector connection cable	－

Notes(1)	For specific cord length, please contact IKO.
(2)	I/O connector TAE20R5-CN is a combined product of 10150-3000PE (connector) and 10350-52F0-008 (cover) from 3M Japan Limited.

Product Related Inquiries

Some products are not shown in the catalogue. Also, modifications can be made to meet your requirements. Please do not hesitate to make inquiries.

Pick Up

NT･･･XZ Features

IKO Nano Linear NT is a direct-drive moving-magnet type 2-axes positioning table, which has magnets and an optical linear scale incorporated into the steel moving table as well as stator coils and a linear scale head incorporated into a steel bed. Combination of IKO Linear Way type-L as a linear motion rolling guide, high resolution linear scale, and the strongest neodymium magnet makes possible high precision positioning accuracy and high speed, quick response operation in combination with compact size. Furthermore, mechanical contact is completely eliminated (except for linear motion rolling guides) by adopting a unique design of a wireless moving table in which the linear scale sensor is arranged on the bed. Therefore, this table generates very little dust and provides a high level of cleanliness.
IKO Nano Linear NT Table is most suitable for use as a compact positioning mechanism for semiconductor and liquid crystal related equipment, as well as assembly systems where cleanliness is essential.
